Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

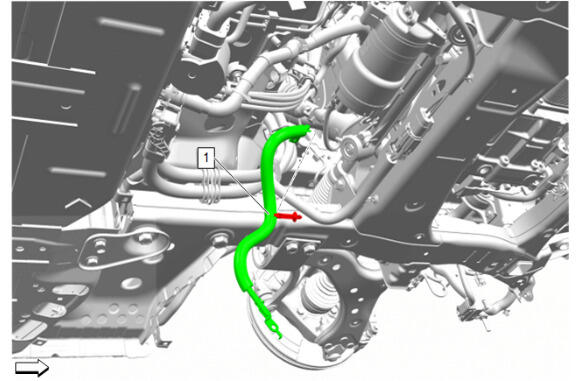

Battery Negative Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

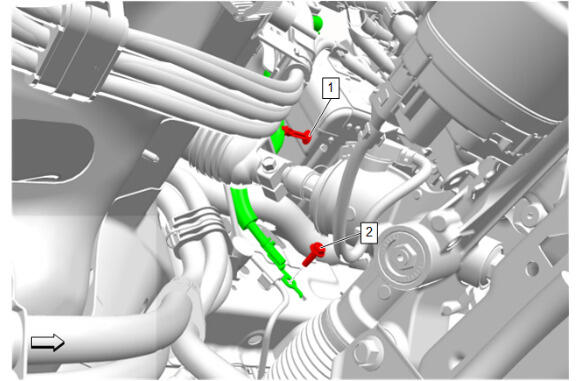

High Voltage Battery Ground Bracket Bolt (2) - Install and tighten - Fastener Specifications
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The proper position of the underbody front air deflector (1) is under the front compartment air deflector and the left and right side front wheelhouse liners.

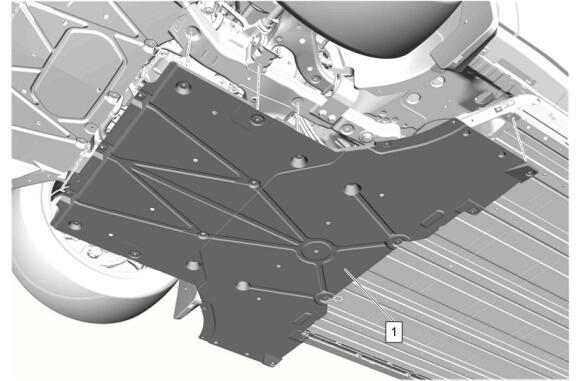

Underbody Front Air Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

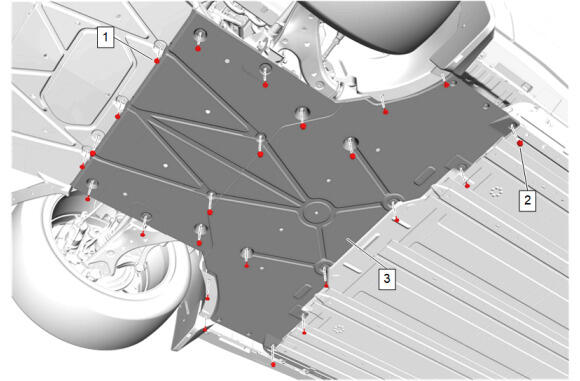

Underbody Front Air Deflector Retainer (2) - Install [8x]
Front Compartment Air Deflector Bolt (1) - Install and tighten [16x] - Fastener Specifications
Remove the support and lower the vehicle. Lifting and Jacking the Vehicle (Mobile Service - 4 Floor Jacks)Lifting and Jacking the Vehicle (Standard Service)Lifting and Jacking the Vehicle (Mobile Service - 2 Floor Jacks)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
