Fastener Specifications

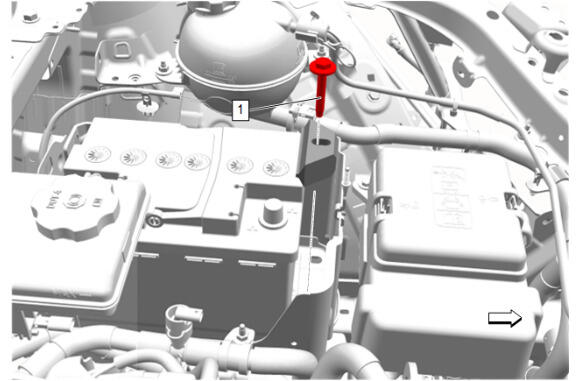

GM6384959Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Hold Down Retainer Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Battery Replacement

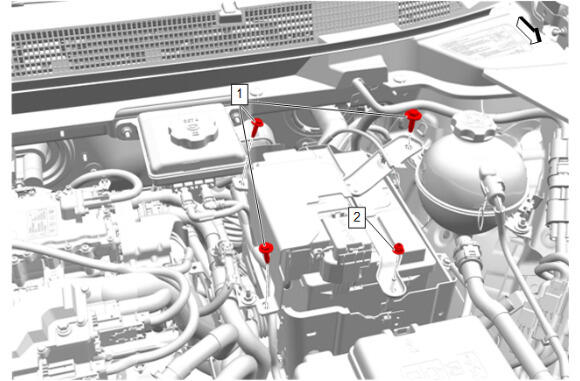

GM6385025Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Hold Down Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Hold Down Retainer Bolt [3x] - - 22 N.m (16 lb ft) Battery Hold Down Retainer Replacement
2 Battery Retainer Nut - - 5 N.m (44 lb in) Battery Hold Down Retainer Replacement

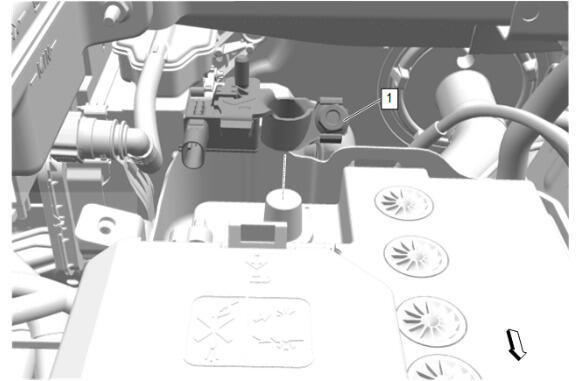

GM6385194Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Monitor Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Monitor Module - - 4.5 N.m (40 lb in) Battery Monitor Module Replacement

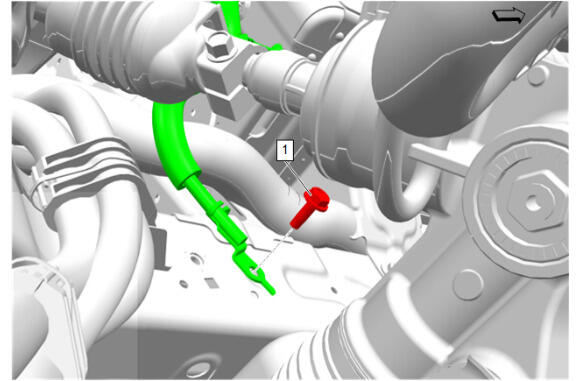

GM6385201Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Ground Bracket Bolt - - 22 N.m (16 lb ft) Battery Negative Cable Replacement

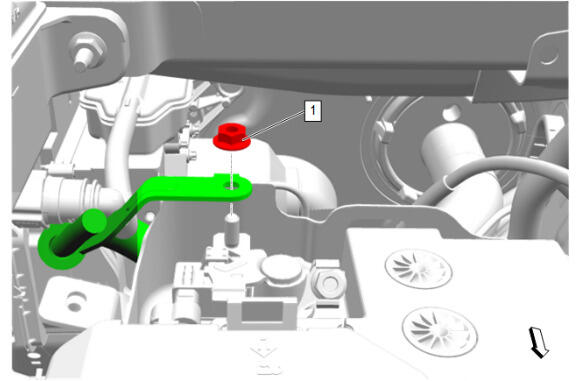

GM6385214Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Nut - - 9 N.m (80 lb in) Battery Negative Cable Disconnection and Connection

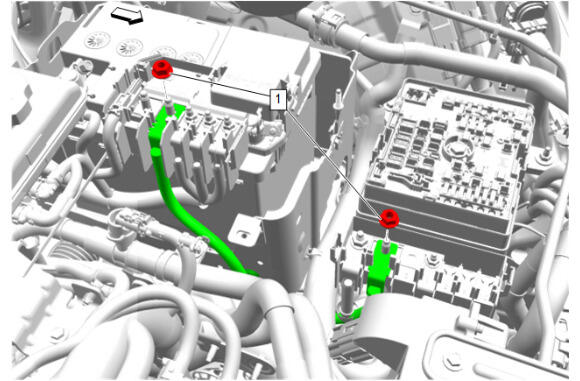

GM6385230Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Nut [2x] - - 22 N.m (16 lb ft) Battery Positive Cable Replacement

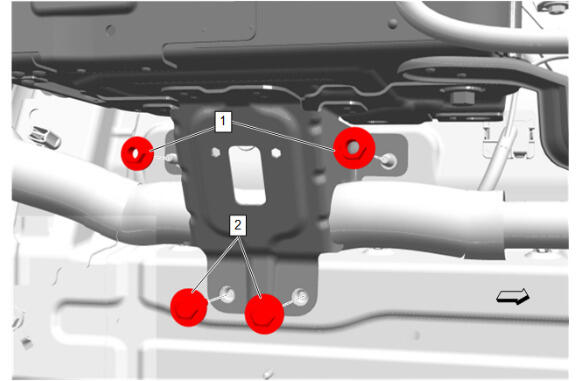

GM6379275Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Tray

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Nut [2x] - - 22 N.m (16 lb ft) Battery Tray Replacement
2 Battery Tray Bolt [2x] - - 5 N.m (44 lb in) Battery Tray Replacement

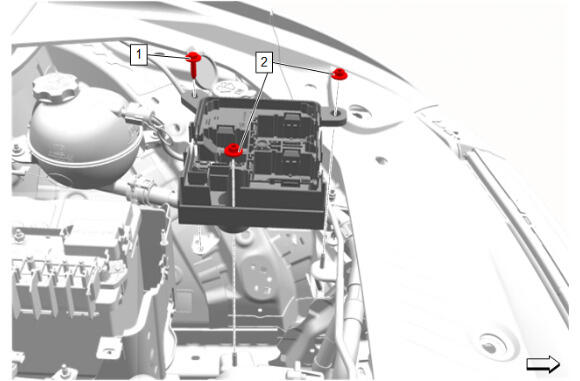

GM6385251Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine Wiring Harness Fuse Block Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Junction Block Shield Bolt - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement
2 Engine Wiring Harness Junction Block Shield Nut [2x] - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement

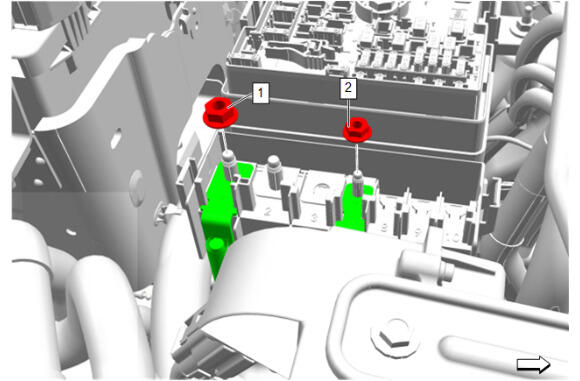

GM6385297Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine Wiring Harness Fuse Block Nuts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Nut - - 22 N.m (16 lb ft) Engine Wiring Harness Fuse Block Bracket Replacement
2 Fuse Block Nut - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement

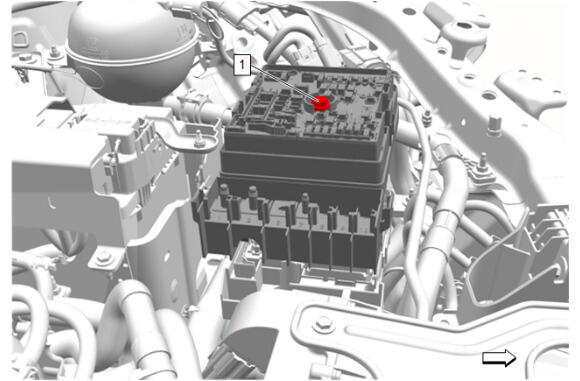

GM6385301Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine Wiring Harness Junction Block Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Junction Block Bolt - - 22 N.m (16 lb ft) Engine Wiring Harness Fuse Block Bracket Replacement
