Fastener Specifications

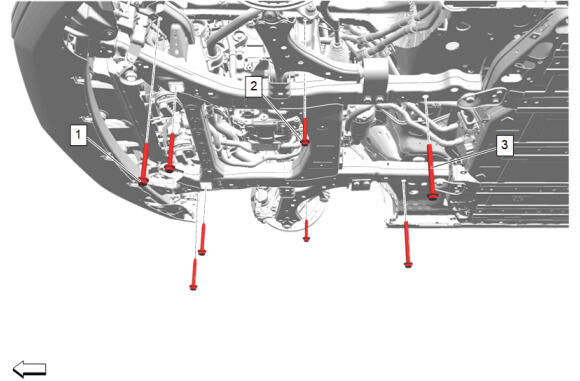

GM6407562Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drivetrain and Front Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drivetrain and Front Suspension Cradle Front Bolt [4x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 35 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation
2 Drivetrain and Front Suspension Cradle Interior Bolt [2x] - - First Pass: 80 N.m (59 lb ft)
Final Pass: 35 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation
3 Drivetrain and Front Suspension Cradle Rear Bolt [2x] - - First Pass: 240 N.m (177 lb ft)
Final Pass: 45 - 60 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation

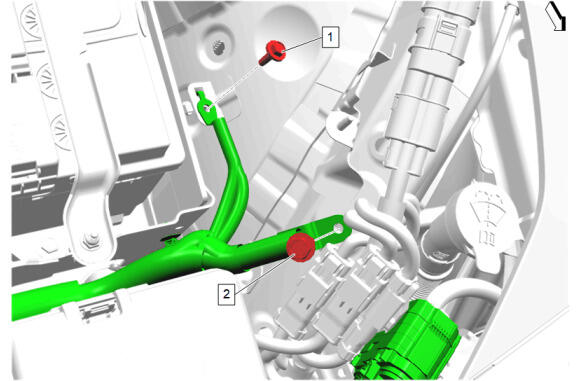

GM6407936Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine control Module and Engine Wiring Harness Ground Bolt, and High Voltage Battery Ground Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Control Module and Engine Wiring Harness Ground Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Removal and Installation
2 High Voltage Battery Ground Bracket Bolt - - 22 N.m (16 lb ft) Drivetrain and Front Suspension Cradle Removal and Installation

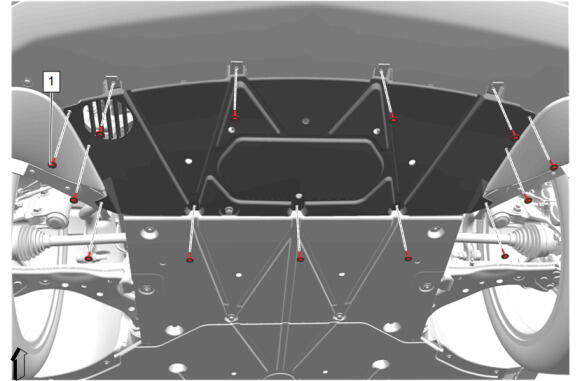

GM6404214Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Compartment Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Compartment Air Deflector Bolt [13x] - - 2.5 N.m (22 lb in) Front Compartment Air Deflector Replacement

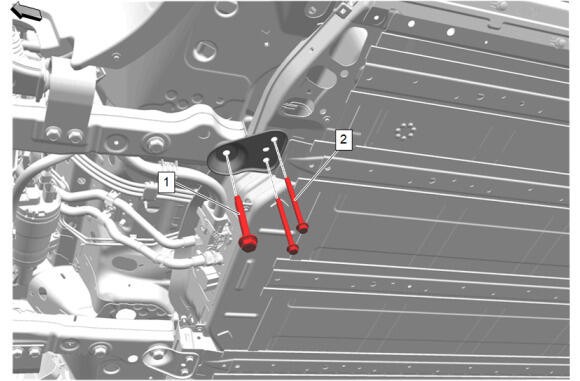

GM6404886Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Cradle Mount Bolt Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drivetrain and Front Suspension Cradle Rear Bolt - - First Pass: 160 N.m (118 lb ft)
Final Pass: 35 - 45 degrees		 Front Cradle Mount Bolt Bracket Replacement
2 Front Cradle Mount Bolt Bracket Bolt [2x] - - 58 N.m (43 lb ft) Front Cradle Mount Bolt Bracket Replacement

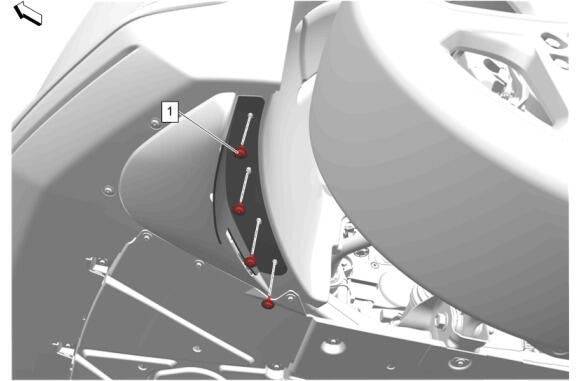

GM6404216Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Tire Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement

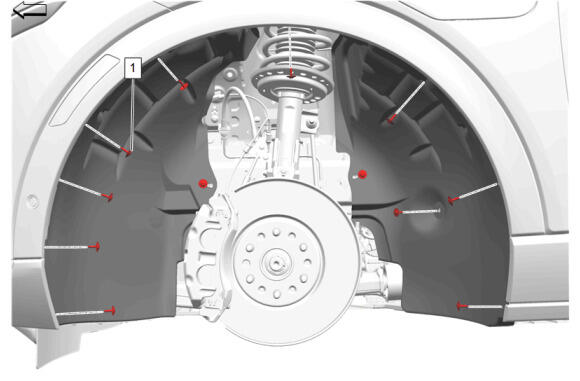

GM6404219Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Wheelhouse Liner Bolt [12x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement

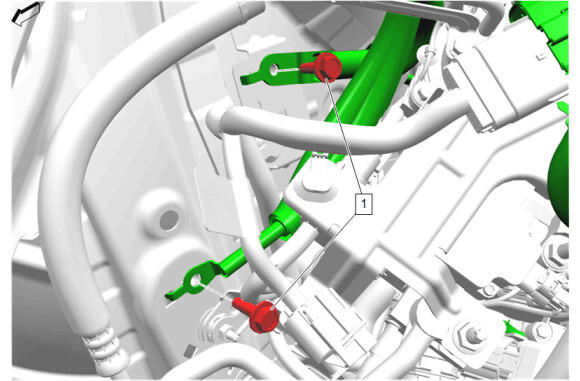

GM6407939Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine control Module and Engine Wiring Harness Ground Bolt, and High Voltage Battery Ground Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Ground Bracket Bolt [2x] - - 22 N.m (16 lb ft) Drivetrain and Front Suspension Cradle Removal and Installation

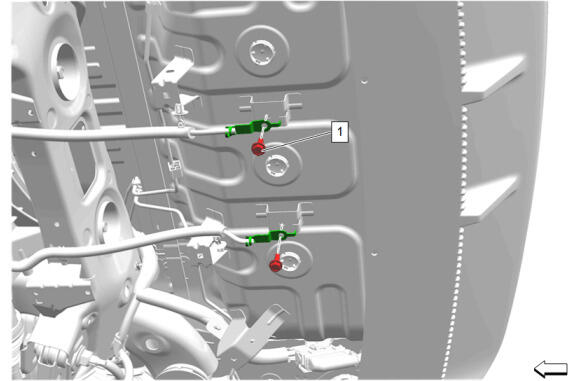

GM6411240Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
High Voltage Battery Ground Bracket Bolt - XRD

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Ground Bracket Bolt [2x] - - 22 N.m (16 lb ft) Rear Suspension Cradle Removal and Installation (XRD)

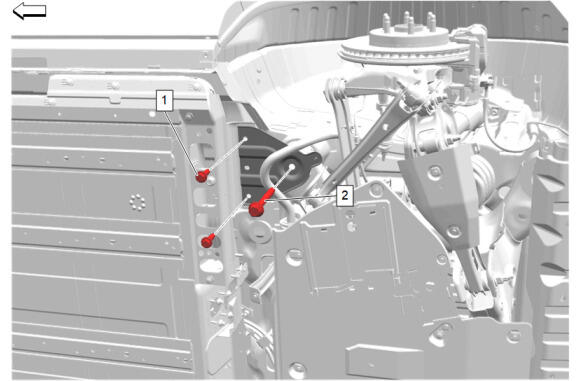

GM6404892Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Cradle Mount Bolt Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Cradle Mount Bolt Bracket Bolt [2x] - - 100 N.m (74 lb ft) Rear Cradle Mount Bolt Bracket Replacement
2 Rear Suspension Cradle Front Bolt - - First Pass: 200 N.m (148 lb ft)
Final Pass: 45 - 60 degrees		 Rear Cradle Mount Bolt Bracket Replacement

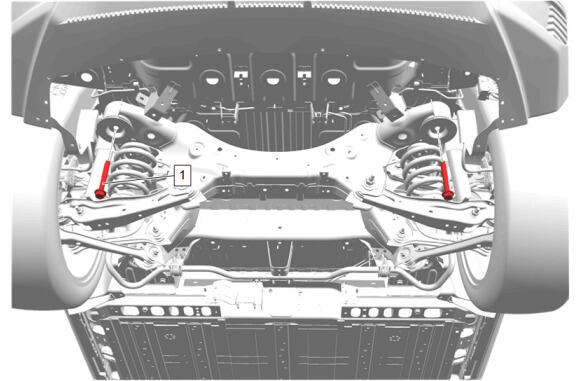

GM6407557Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Suspension Cradle Rear Bolt [2x] - - 200 N.m (148 lb ft) Rear Suspension Cradle Removal and Installation (FWD) , or Rear Suspension Cradle Removal and Installation (XRD)

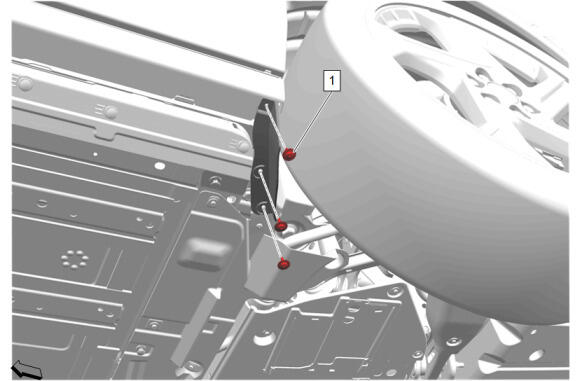

GM6404928Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement

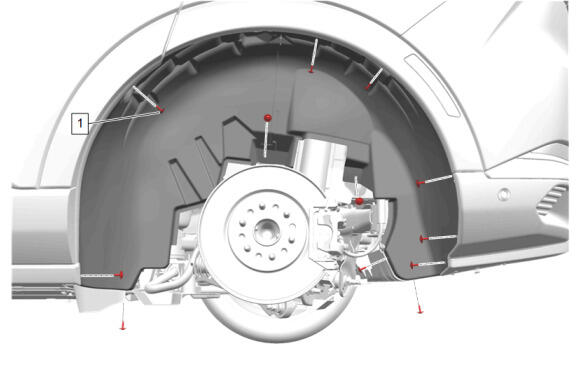

GM6404900Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Wheelhouse Liner Bolt [12x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement

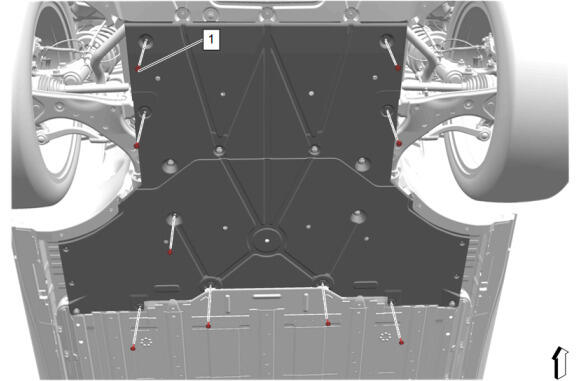

GM6404912Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Compartment Air Deflector Bolt [9x] - - 2.5 N.m (22 lb in) Underbody Front Air Deflector Replacement

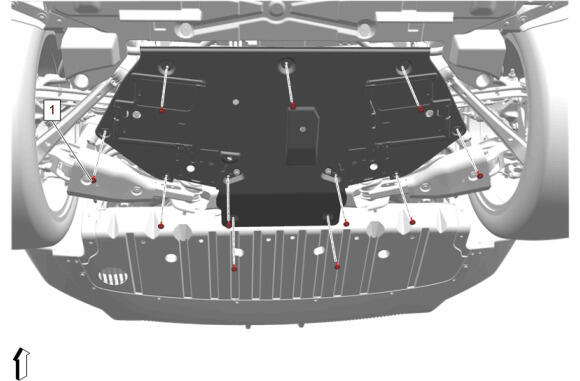

GM6404929Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Rear Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Underbody Rear Air Deflector Bolt [11x] - - 2.5 N.m (22 lb in) Underbody Rear Air Deflector Replacement

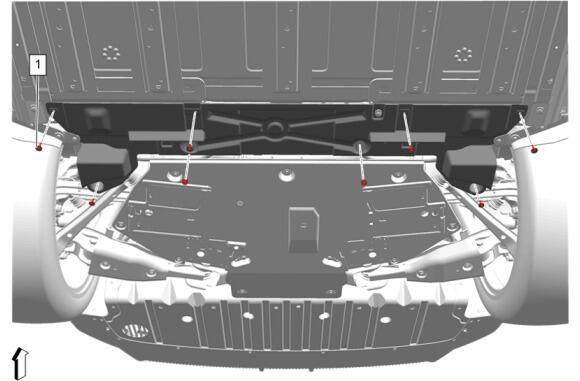

GM6404922Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Rear Air Rear Deflector - Front

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Underbody Rear Air Rear Deflector Bolt [8x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Front

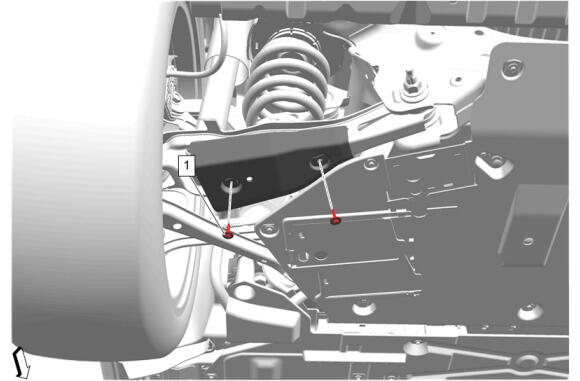

GM6404923Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Rear Air Rear Deflector - Middle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Underbody Rear Air Rear Deflector Bolt [2x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Middle

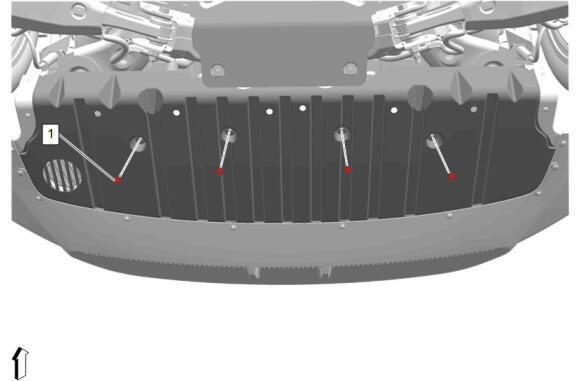

GM6404921Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Rear Air Rear Deflector - Rear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Underbody Rear Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Rear
