Rear Side Door Armrest Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

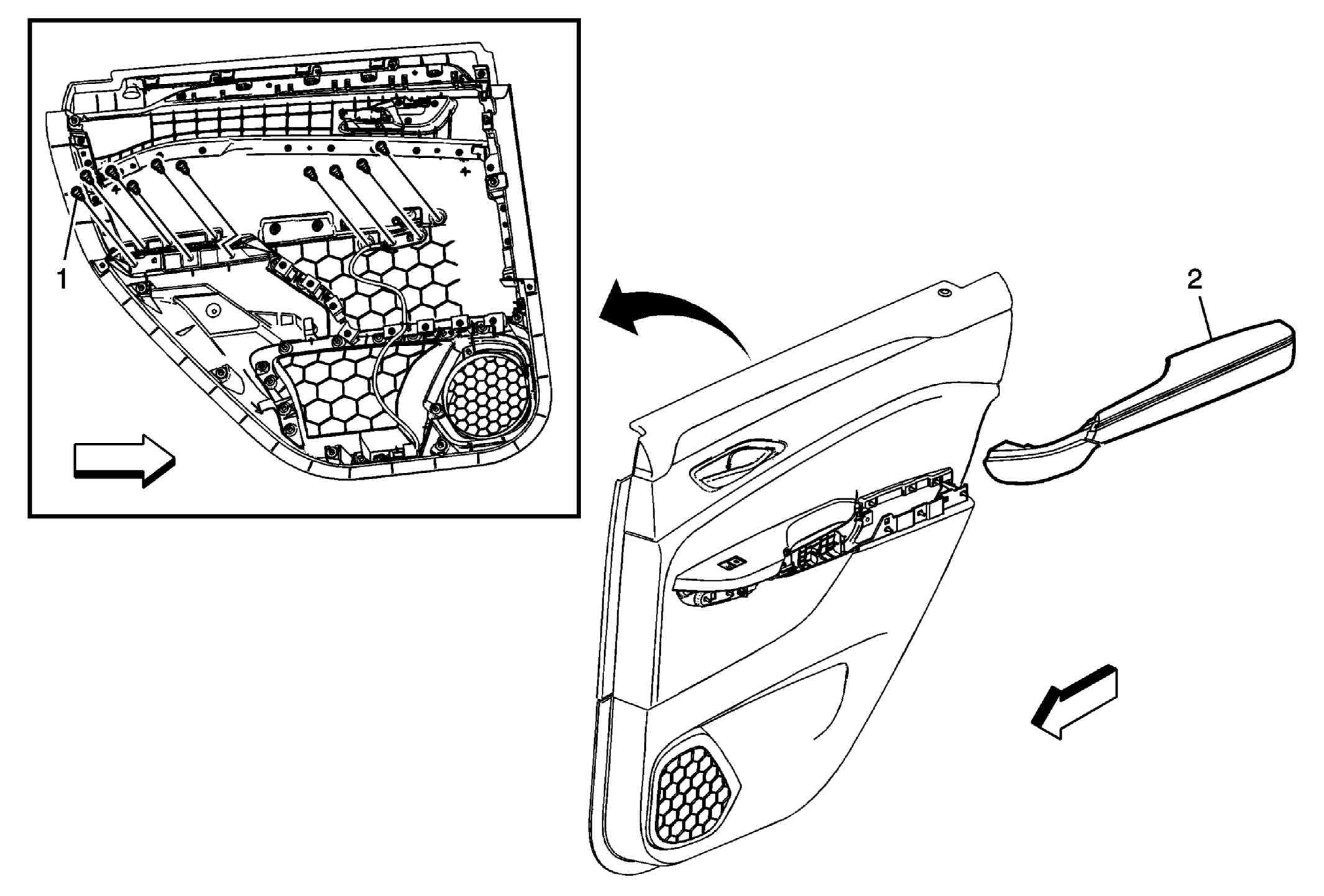

Fig 1: View Of Rear Side Door Armrest

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement . Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Armrest Fastener (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Rear Side Door Armrest Assembly

Callout

Component Name

Preliminary Procedure

Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .
Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .

Rear Side Door Armrest Fastener (Qty: 10)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Rear Side Door Armrest Assembly
