Rear Side Door Accessory Switch Mount Plate Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |

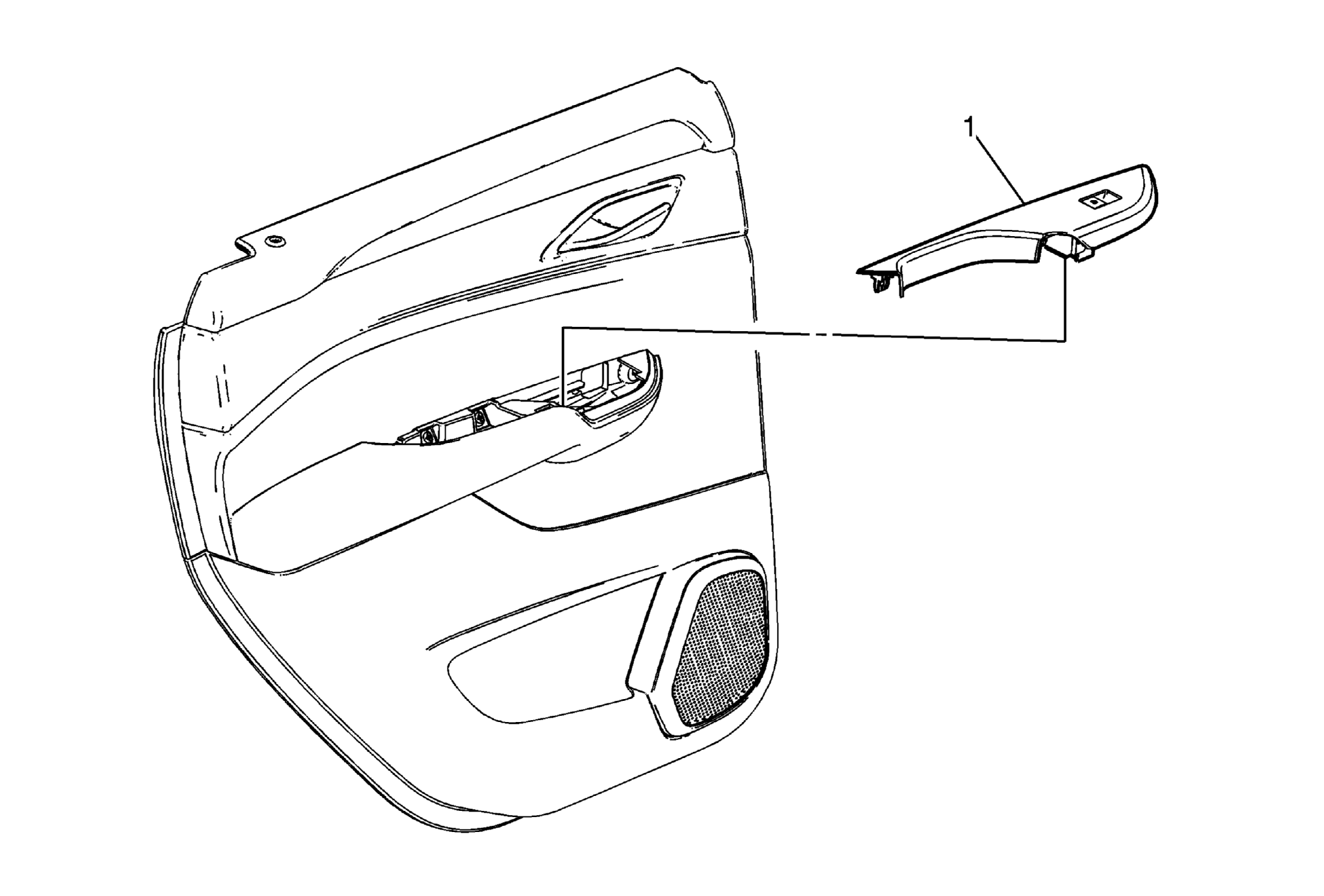

Rear Side Door Accessory Switch Mount Plate Procedure
- Pull upward gently from front of accessory switch mount plate while slowly moving plastic trim tool from front to rear of part to disengage from the door trim panel.
- Disconnect the electrical connector.
|
