Rear Side Door Trim Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

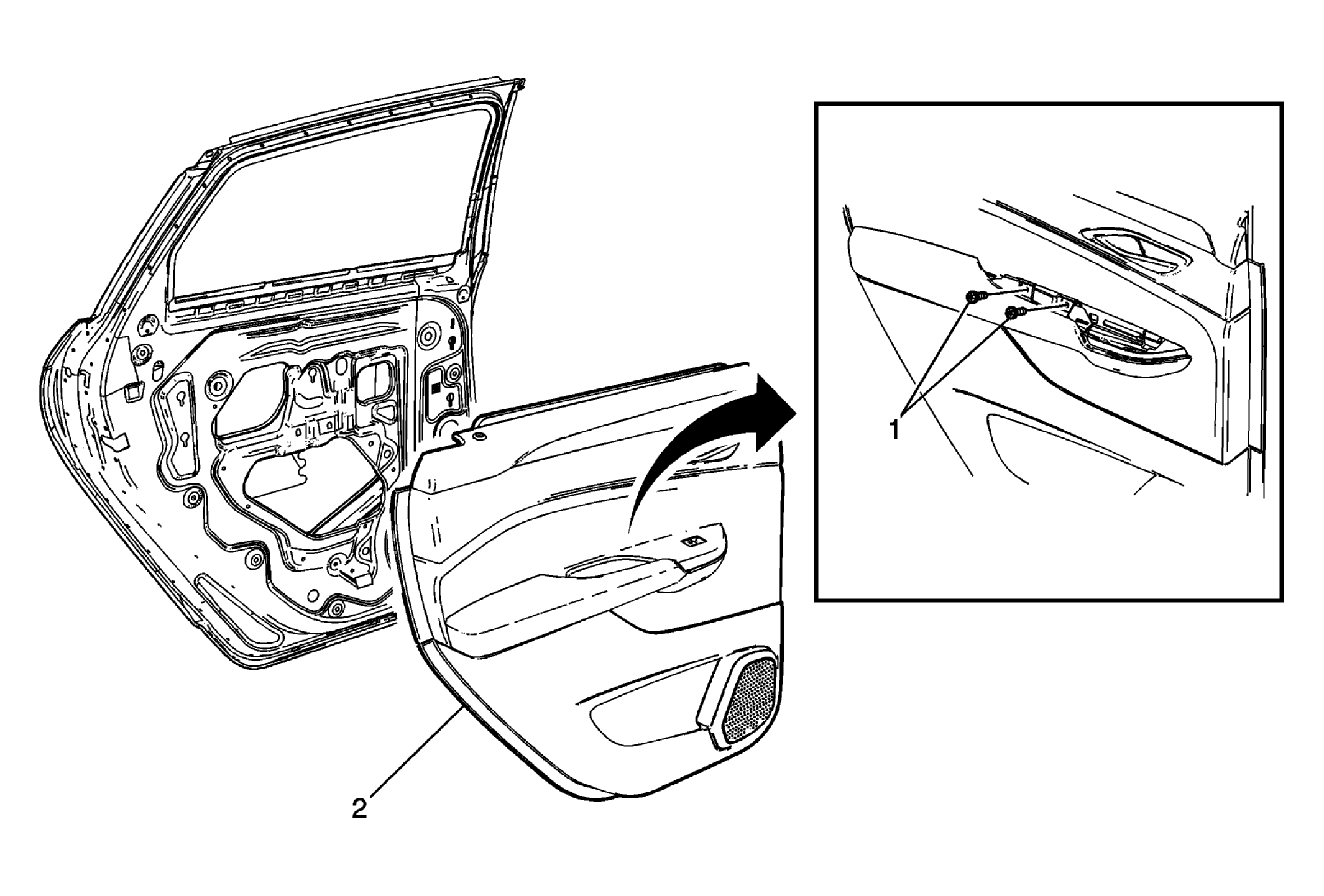

Fig 1: View Of Rear Side Door Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .
1	Rear Side Door Pull Handle Fastener (Qty: 2)
2	Rear Side Door Trim Assembly Procedure Use a door trim tool or equivalent to aid in the removal of the door trim. Disengage the door lock cable. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .

Rear Side Door Pull Handle Fastener (Qty: 2)

Rear Side Door Trim Assembly

Procedure

Use a door trim tool or equivalent to aid in the removal of the door trim.
Disengage the door lock cable.
Disconnect the electrical connector.
