Front Side Door Window Weatherstrip Replacement

Preliminary Procedures

1. Remove the front side door window. Refer to Front Side Door Window Replacement .
2. Position the front side door window regulator rear rail out of the way to access the rear portion of the weatherstrip. Refer to Front Side Door Window Regulator Replacement .
3. Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement (North America) and Outside Rearview Mirror Replacement (Except North America) .

Procedure

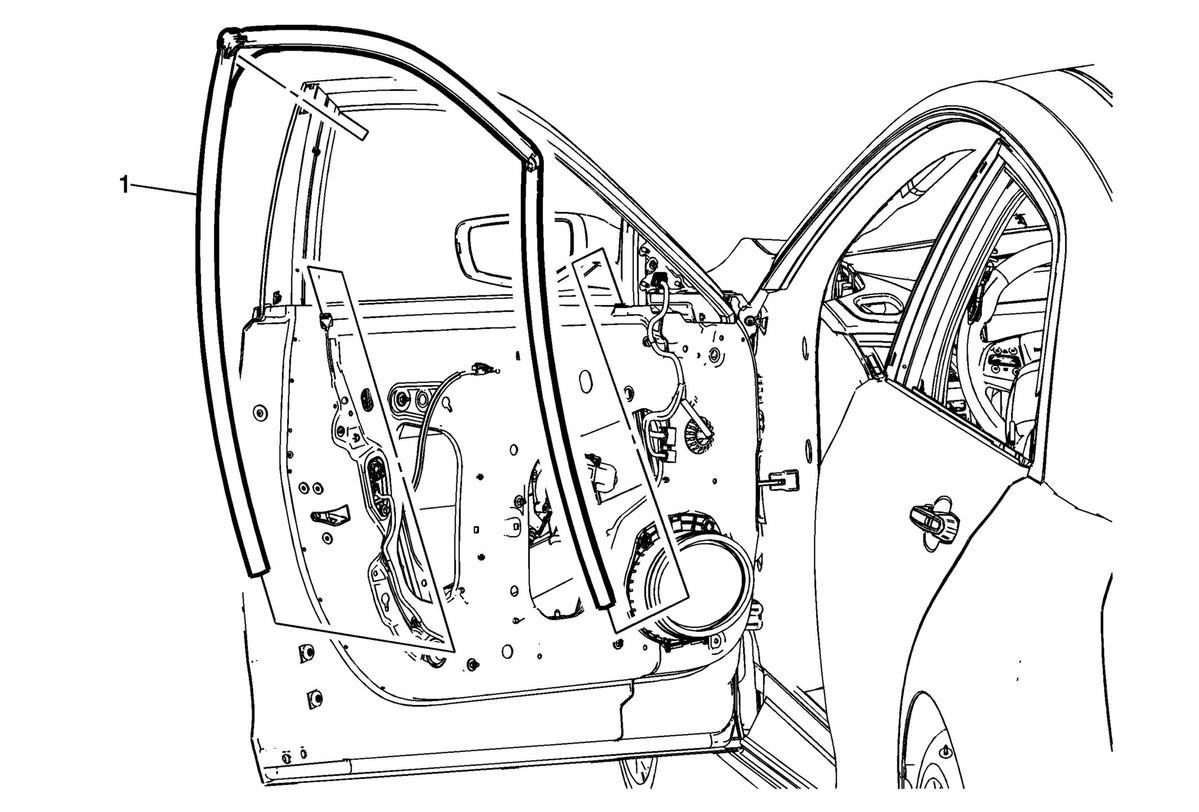

1. Pull the window weatherstrip out of the door header.
2. Removing the weatherstrip starting at the rear lower end, pull the inner window weatherstrip away from the door header.
3. Install the weatherstrip at the upper, rear corner, install the inner window weatherstrip to the door pinchweld flange.
