Front Side Door Window Replacement

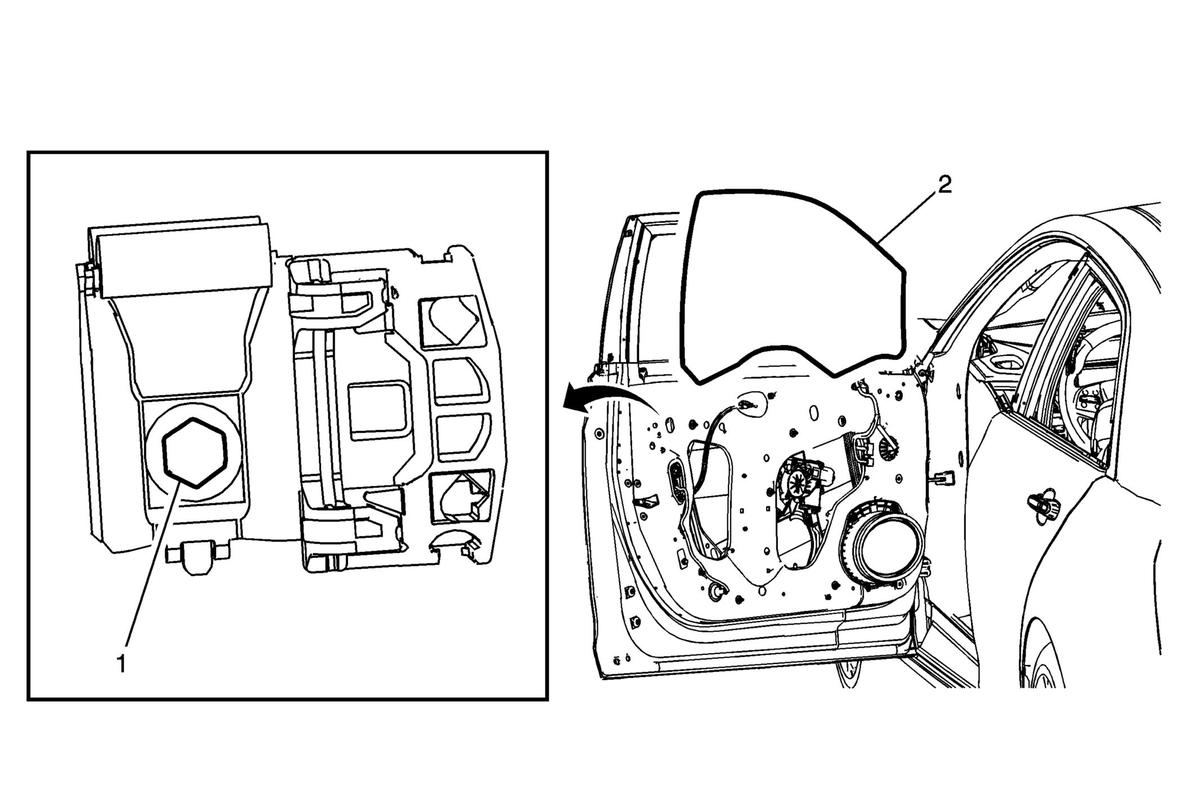

Fig 1: Front Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement . Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement . Remove the front door water deflector.
1	Front Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Apply masking tape to the applique, reveal belt molding and door frame. Position the window approximately half way down in the door. Loosen the bolts that attach the window to the window regulator guides. Tilt the window downward in the front, pull up on the back of the window and pull it out from the frame. Tighten 10.5 N.m (93 lb in)
2	Front Side Door Window Procedure Place the window into the door frame, slide the window downward locking the retainers into the window retaining holes. NOTE: Inspect the window for proper operation before installing the trim panel.

Callout

Component Name

WARNING: Refer to Glass and Sheet Metal Handling Warning .

WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement .
Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement .
Remove the front door water deflector.

Front Side Door Window Regulator Guide Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure

Apply masking tape to the applique, reveal belt molding and door frame.
Position the window approximately half way down in the door.
Loosen the bolts that attach the window to the window regulator guides.
Tilt the window downward in the front, pull up on the back of the window and pull it out from the frame.

Tighten
10.5 N.m (93 lb in)

Front Side Door Window
Procedure
Place the window into the door frame, slide the window downward locking the retainers into the window retaining holes.

NOTE: Inspect the window for proper operation before installing the trim panel.
