Front Side Door Window Regulator Replacement

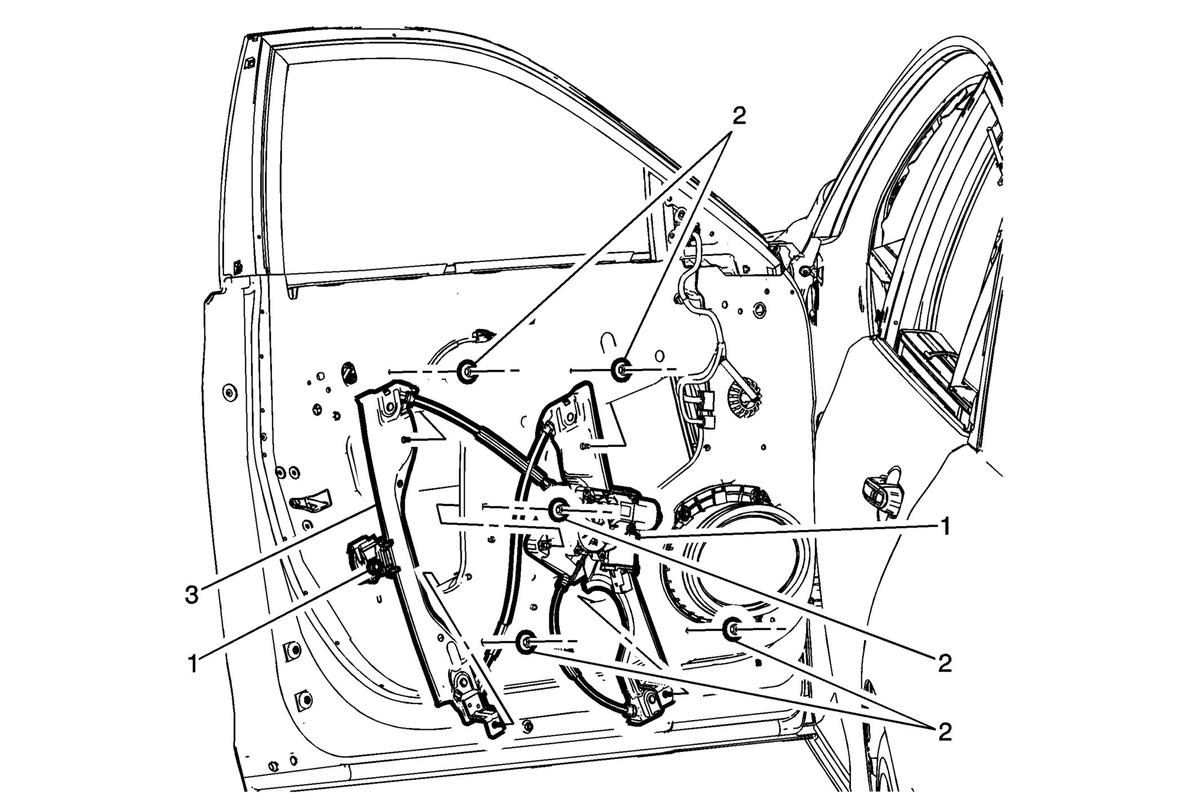

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the water deflector.
1	Front Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Position the window to access the window regulator guide bolts. Place the window in the full up position and tape in place. Tighten 10.5 N.m (93 lb in)
2	Front Side Door Window Regulator Nut (Qty: 5) Procedure Disconnect the electrical connector. Tighten 11.5 N.m (102 lb in)
3	Front Side Door Window Regulator Procedure Transfer the window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement . NOTE: Inspect the door window for proper operation before installing the door trim.
