Front Side Door Window Regulator Motor Replacement

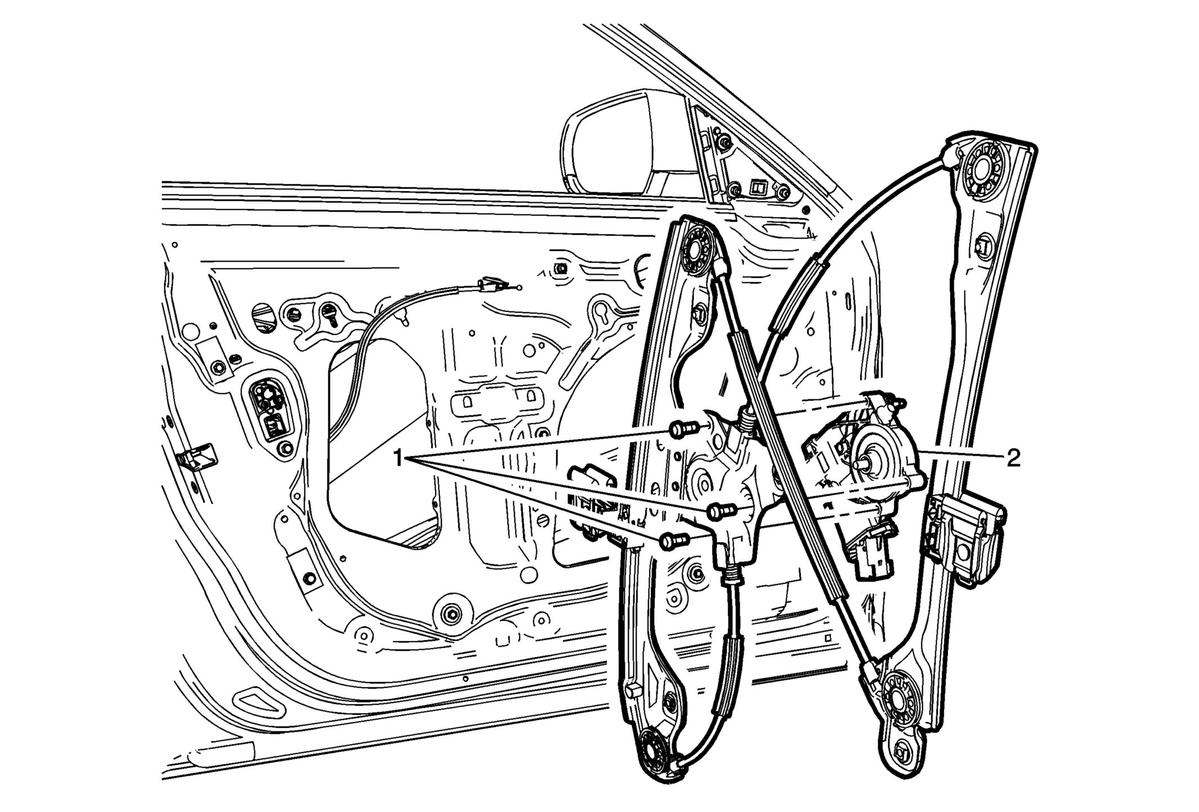

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement . |
|
| 1 | Front Side Door Window Regulator Motor Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 10.5 N.m (93 lb in) |
| 2 | Front Side Door Window Regulator Motor Procedure Program the window motor express function. Refer to Window Motor Programming - Express Function
NOTE:
Inspect the door window for proper operation before installing the door trim.
|
