Overview - Display Control Head, China Market-Specific Version
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

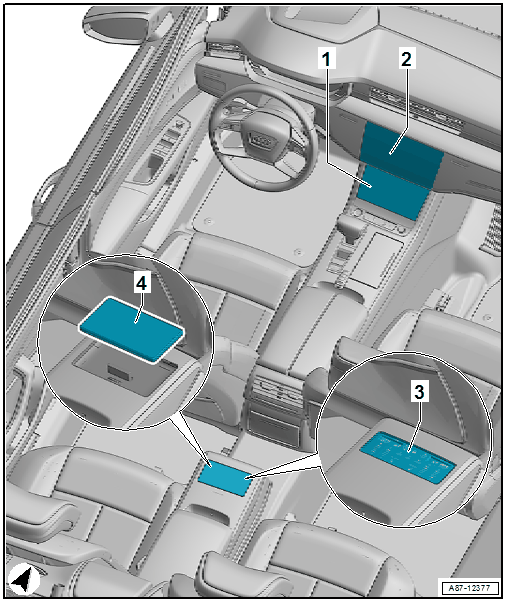

- Front Information Display Control Head 2 -J1060-
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Front Information Display Control Head -J685-
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Wireless Control Head 1 -E859-
- Installed depending on vehicle equipment
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Auxiliary Display Control Head 1 -E857-
- Installed depending on vehicle equipment
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
