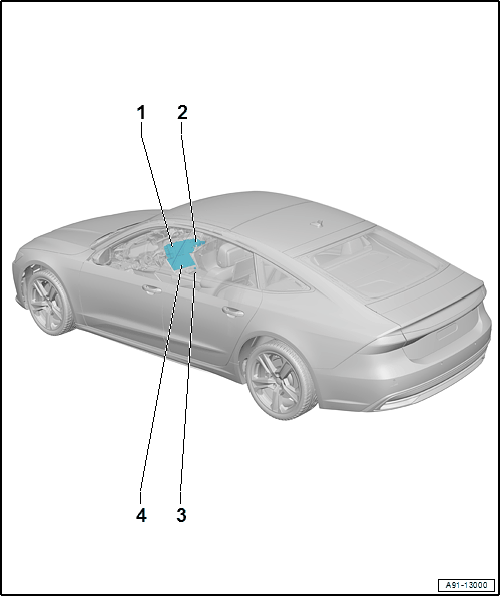

Component Location Overview - Infotainment System
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi S7, 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, and 2021 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING .
- Refer to the appropriate Wiring Diagram
- Information Electronics Control Module 1 -J794-
- Behind the Glove Compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Refer to the appropriate Wiring Diagram
- Front Information Display Control Head 2 -J1060-
- In the front center console
- Removing and Installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING .
- Refer to the appropriate Wiring Diagram
- Driver Volume Control -E67-
- In the front center console display cover
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
