Keyless/Power Door Locks/Security System Symptom Troubleshooting - Security Alarm System Will Not Arm: Inspection

HOOD_SW, GND Circuit Inspection

Test Procedure

• Preparation
• • Hood latch switch 2P connector: disconnected
  • Body control module connector C (28P): disconnected
• Procedure
• • Perform the inspection according to the following table.

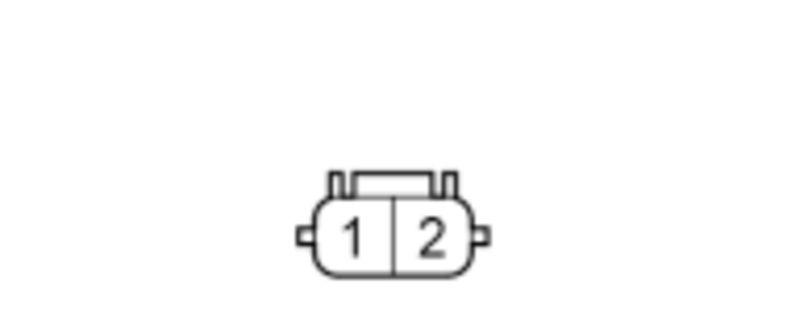

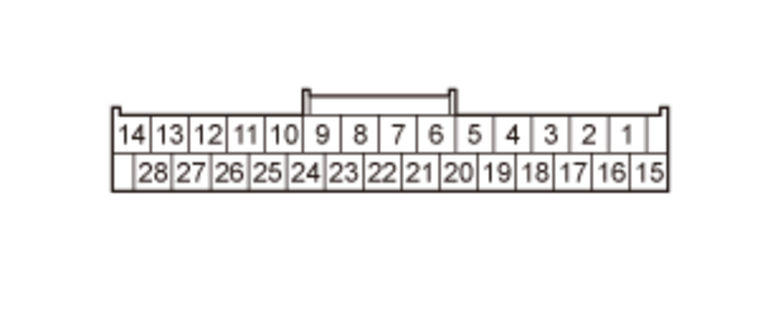

			(Disconnected)Hood latch switch 2P connectorfemale terminals	(Disconnected)Body control module connector C (28P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	HOOD_SW open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	HOOD_SW shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

FL_DOOR_SW, PGND Open Wire Inspection

Test Procedure

• Preparation
• • Driver's door latch 10P connector: disconnected
  • Body control module connector D (40P): disconnected
• Procedure
• • Perform the inspection according to the following table.

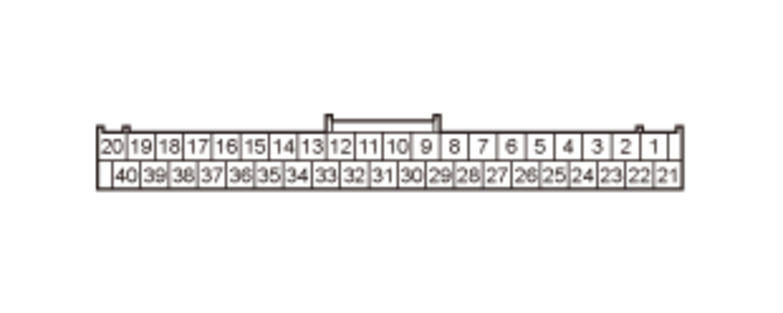

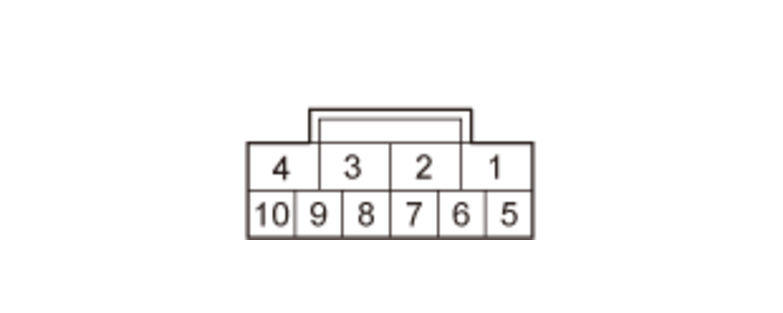

			(Disconnected)Driver's door latch 10P connectorfemale terminals	(Disconnected)Body control module connector D (40P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	FL_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

DR_SILCON_UNLOCK, PGND Circuit Inspection

Test Procedure

• Preparation
• • Driver's door latch 10P connector: disconnected
  • Power window master switch 37P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

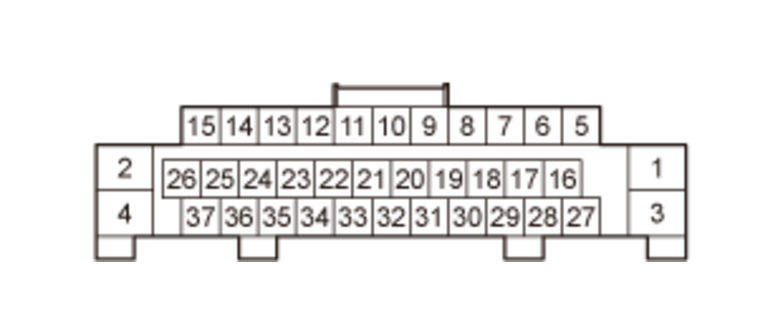

			(Disconnected)Driver's door latch 10P connectorfemale terminals	(Disconnected)Power window master switch 37P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	DR_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	DR_SILCON_UNLOCK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

DR_KEY_CYL_LOCK, PGND Circuit Inspection

Test Procedure

• Preparation
• • Driver's door latch 10P connector: disconnected
  • Power window master switch 37P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

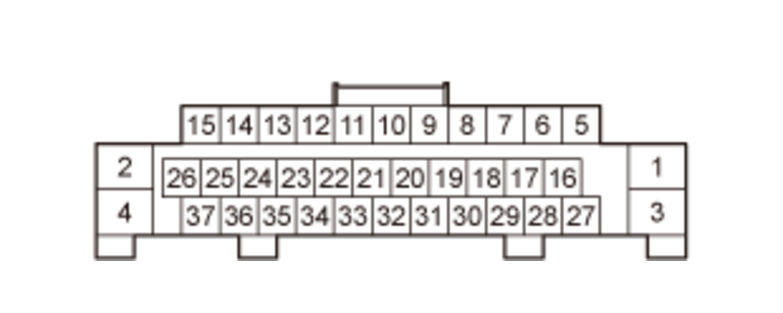

			(Disconnected)Driver's door latch 10P connectorfemale terminals	(Disconnected)Power window master switch 37P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	DR_KEY_CYL_LOCK open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	DR_KEY_CYL_LOCK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

FR_DOOR_SW, PGND Open Wire Inspection

Test Procedure

• Preparation
• • Front passenger's door latch 10P connector: disconnected
  • Body control module connector D (40P): disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)Front passenger's door latch 10P connectorfemale terminals	(Disconnected)Body control module connector D (40P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	FR_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

AS_SILCON_UNLOCK, PGND Circuit Inspection

Test Procedure

• Preparation
• • -

    Front passenger's door latch 10P connector: disconnected

  • -

    Front passenger's power window switch 37P connector: disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)Front passenger's door latch 10P connectorfemale terminals	(Disconnected)Front passenger's power window switch 37P connector - Refer to: Rear Power Window Switch Connector for Inputs and Outputs or Front Passenger's Power Window Switch Connector for Inputs and Outputs female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	AS_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
	PGND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	AS_SILCON_UNLOCK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

RL_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation
• • Left rear door latch 10P connector: disconnected
  • Body control module connector D (40P): disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)Left rear door latch 10P connectorfemale terminals	(Disconnected)Body control module connector D (40P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	RL_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

RR_L_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
• • -Left rear door latch 10P connector: disconnected
  • -Body control module connector C (28P): disconnected
• Procedure
• • -Perform the inspection according to the following table.

			(Disconnected)Left rear door latch 10P connectorfemale terminals	(Disconnected)Body control module connector C (28P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	RR_L_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	RR_L_SILCON_UNLOCK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

RR_DOOR_SW, GND Open Wire Inspection

Test Procedure

• Preparation
• • -Right rear door latch 10P connector: disconnected
  • -Body control module connector D (40P): disconnected
• Procedure
• • -Perform the inspection according to the following table.

			(Disconnected)Right rear door latch 10P connectorfemale terminals	(Disconnected)Body control module connector D (40P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	RR_AS_DOOR_SW open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

RR_R_SILCON_UNLOCK, GND Circuit Inspection

Test Procedure

• Preparation
• • -

    Right rear door latch 10P connector: disconnected

  • -

    Body control module connector C (28P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)Right rear door latch 10P connectorfemale terminals	(Disconnected)Body control module connector C (28P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	RR_R_SILCON_UNLOCK open wire inspection	OFF			There is less than 1 Ohm

	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	RR_R_SILCON_UNLOCK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

TRUNK_SW, GND Circuit Inspection

Test Procedure

• Preparation
• • Trunk lid latch 3P connector: disconnected
  • Body control module connector D (40P): disconnected
• Procedure
• • Perform the inspection according to the following table.

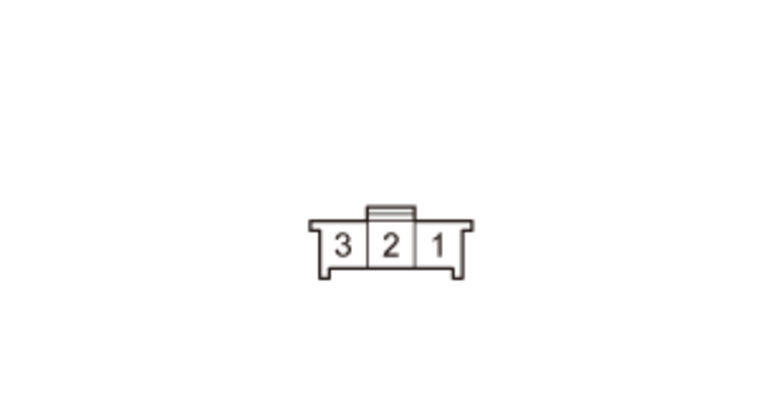

			(Disconnected)Trunk lid latch 3P connectorfemale terminals	(Disconnected)Body control module connector D (40P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	TRUNK_SW open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	TRUNK_SW shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
