Power Window Master Switch Connector for Inputs and Outputs

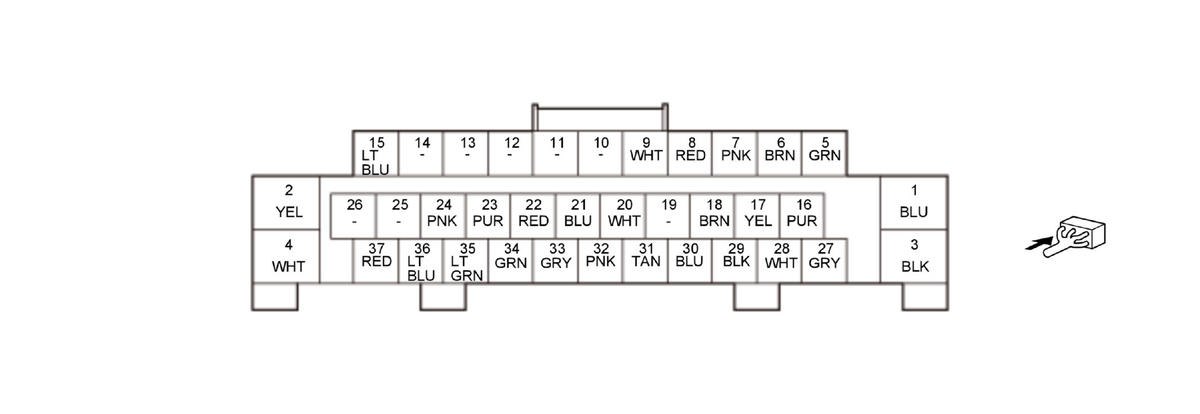

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W_DR_MTR_DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
2	P/W_DR_MTR_UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V
3	GND	Ground for power window master switch	Less than 0.2 V at all times
4	+B_DR_P/W	Power source for power window master switch	About battery voltage at all times
5	DR_MEMORY_SEAT_SW_POS1	Detects DR_MEMORY_SEAT_SW_POS1 signal	With driving position memory switch 1 ON: less than 0.2 V
6	DR_MEMORY_SEAT_SW_POS2	Detects DR_MEMORY_SEAT_SW_POS2 signal	With driving position memory switch 2 ON: less than 0.2 V
7	DR_KEY_CYL_LOCK	Detects DR_KEY_CYL_LOCK signal	With driver's door key cylinder switch LOCK: less than 0.2 V
8	DR_KEY_CYL_UNLOCK	Detects DR_KEY_CYL_UNLOCK signal	With driver's door key cylinder switch UNLOCK: less than 0.2 V
9	TRUNK_OPEN_SW(INTR)	Detects TRUNK_OPEN_SW(INTR) signal	With trunk lid opener switch UNLOCK: less than 0.2 V
10	Not used	---	---
11	Not used	---	---
12	Not used	---	---
13	Not used	---	---
14	Not used	---	---
15	H/MIRROR_DR	Outputs H/MIRROR_DR signal	With mirror defogger ON: about battery voltage
16	PCOM	Ground for driving position memory switch	With door multiplex control unit is wakeup mode: less than 0.2 V
17	DR_MEMORY_SEAT_SW_MEMORY	Detects DR_MEMORY_SEAT_SW_MEMORY signal	With driving position memory set switch ON: less than 0.2 V
18	IG2_OPTION	IG2 power source	With the vehicle in the ON mode: about battery voltage
19	Not used	---	---
20	DR_SILCON_UNLOCK	Detects DR_SILCON_UNLOCK signal	With driver's door lock knob switch UNLOCK: less than 0.2 V
21	DR_SILCON_LOCK	Detects DR_SILCON_LOCK signal	With driver's door lock knob switch LOCK: less than 0.2 V
22	DR_MEMORY_SEAT_SW_IND1	Outputs DR_MEMORY_SEAT_SW_IND1 signal	Driving position memory switch indicator 1 ON: pulse (depending on indicator brightness) Driving position memory switch indicator 1 OFF: less than 0.2 V
23 *	RETRA_MIRROR_SW	Outputs RETRA_MIRROR_SW signal	With the vehicle in the ON mode and power mirror retract switch in EXTEND position: less than 0.2 V With the vehicle in the ON mode, and power mirror retract switch in RETRACT position: about battery voltage

*: With power retract mirror

Terminal number	Terminal name	Description	Signal
24	DR_MEMORY_SEAT_SW_IND2	Outputs DR_MEMORY_SEAT_SW_IND2 signal	Driving position memory switch indicator 2 ON: pulse (depending on indicator brightness) Driving position memory switch indicator 2 OFF: less than 0.2 V
25	Not used	---	---
26	Not used	---	---
27 *	DR_RETRA_OPEN	Drives retract actuator	---
28 *	RETRA_CLOSE	Drives retract actuator	---
29	PGND	Ground for power window master switch	Less than 0.2 V at all times
30	P/W_SW_ILLUMI	Outputs P/W_SW_ILLUMI signal	With combination light switch SMALL: about battery voltage With combination light switch OFF: less than 0.2 V
31	BB-CAN_L	Communication line	---
32	BB-CAN_H	Communication line	---
33	P/W_DR_MTR_PLSA	Detects P/W_DR_MTR_PLSA signal	---
34	P/W_DR_MTR_VCC	Outputs P/W_DR_MTR_VCC signal	---
35	P/W_DR_MTR_PLSB	Detects P/W_DR_MTR_PLSB signal	---
36	LIN(P/W)	Communication line	---
37	+B_BACK_UP	Power source for power window master switch	About battery voltage at all times

*: With power retract mirror
