Front Passenger's Power Window Switch Connector for Inputs and Outputs

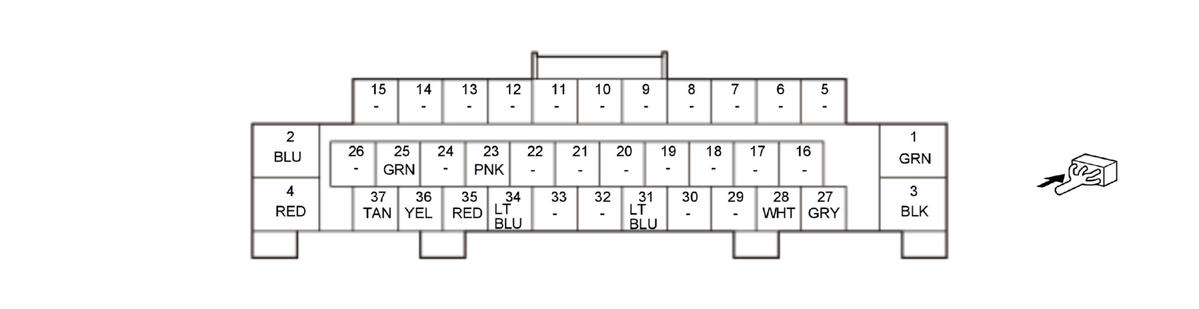

Front Passenger's Power Window Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B_P/W_AS	Power source for front passenger's power window switch	About battery voltage at all times
2	P/W_AS_MTR_DOWN	Drives front passenger's power window motor	With front passenger's power window motor DOWN operation: about battery voltageIf none of the above conditions are met: less than 0.2 V
3	PGND	Ground for front passenger's power window switch	Less than 0.2 V at all times
4	P/W_AS_MTR_UP	Drives front passenger's power window motor	With front passenger's power window motor UP operation: about battery voltageIf none of the above conditions are met: less than 0.2 V
5	Not used	---	---
6	Not used	---	---
7	Not used	---	---
8	Not used	---	---
9	Not used	---	---
10	Not used	---	---
11	Not used	---	---
12	Not used	---	---
13	Not used	---	---
14	Not used	---	---
15	Not used	---	---
16	Not used	---	---
17	Not used	---	---
18	Not used	---	---
19	Not used	---	---
20	Not used	---	---
21	Not used	---	---
22	Not used	---	---
23	H/MIRROR_AS	Outputs H/MIRROR_AS signal	---
24	Not used	---	---
25	P/W_AS_MTR_SGND	Ground for front passenger's power window switch	Less than 0.2 V at all times
26	Not used	---	---
27 *	AS_RETRA_OPEN	Drives retract actuator	---
28 *	AS_RETRA_CLOSE	Drives retract actuator	---
29	Not used	---	---
30	Not used	---	---
31	P/W_AS_MTR_VCC	Outputs P/W_AS_MTR_VCC signal	---

*: With power retract mirror

Terminal number	Terminal name	Description	Signal
32	Not used	---	---
33	Not used	---	---
34	LIN(P/W)	Communication line	---
35	P/W_AS_MTR_PLSA	Detects P/W_AS_MTR_PLSA signal	---
36	AS_SILCON_UNLOCK	Detects AS_SILCON_UNLOCK signal	With front passenger's door lock knob switch UNLOCK: less than 0.2 V
37	P/W_AS_MTR_PLSB	Detects P/W_AS_MTR_PLSB signal	---

*: With power retract mirror
