Front Panel, Replacing

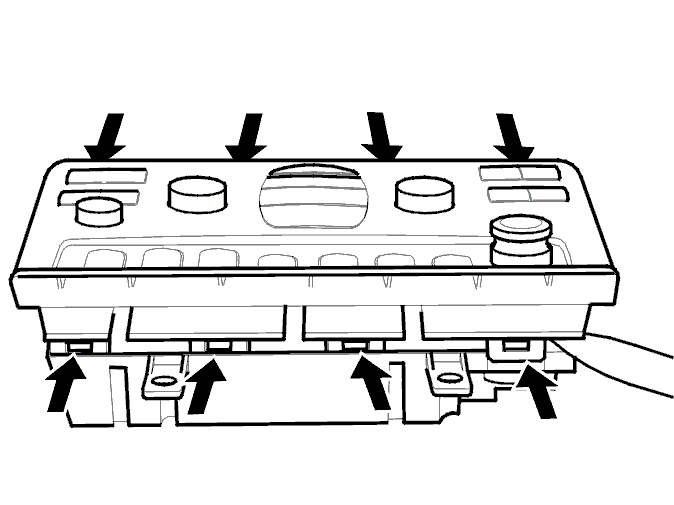

Fig 1: Front Panel

Courtesy of VOLVO CARS CORPORATION

Removal

• Remove the dashboard environment panel. See REPLACING DASHBOARD ENVIRONMENT PANEL .
• Remove the panel for the switches. See REPLACING CLIMATE CONTROL UNIT SWITCHES .
• Remove the rear cover.

Front panel

• Release the catches. Pull off the front panel.
  NOTE:

  Be careful if the front panel is to be reused. The panel has double-sided adhesive tape on the reverse.

Installation

• When reusing the front panel, check that the tape is intact and secures correctly. Replace the tape if necessary.
• For a new front panel, remove the masking tape from the double-sided adhesive tape and press the front panel into place.

Install in reverse order.
