Checking hoses: Notes

Check for any leakage in the hydraulic hoses.

If any hoses are leaking: Replace the hose according to Brake pipes and hoses, remove/install .

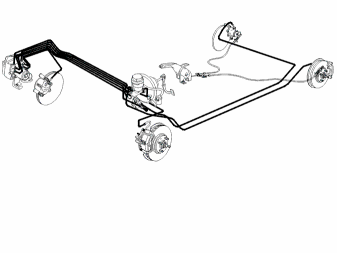

Fig 1: Identifying Hydraulic Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Were any hoses leaking?

• YES

  Refer to Verification

• NO

  FAULT NOT FOUND:  Troubleshooting has been completed.
