Checking hoses: Verification

HINT: After carrying out the repair, check that the fault has been remedied as follows:

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Connecting Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Reinstall the connectors, components etc.

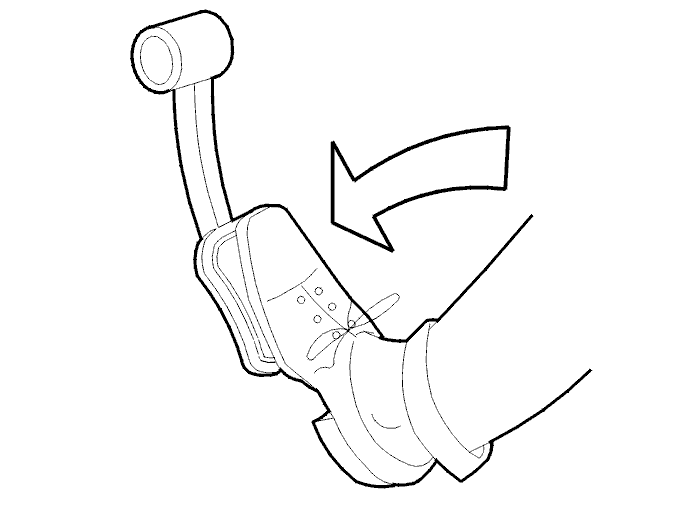

• Stamp on the brake pedal 3-4 times. This should remove any vacuum in the power brake booster.

  Stamp on the brake pedal so that the braking force is equivalent to emergency braking.

  Check that the brake pedal feels rigid. Check that the brake pedal does not move more than 40 mm.

  Test drive the car according to Test driving  .

  Fig 3: Braking Several Times To Stop

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Does the function of the brakes feel normal?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to Information
