Note down any DTCs

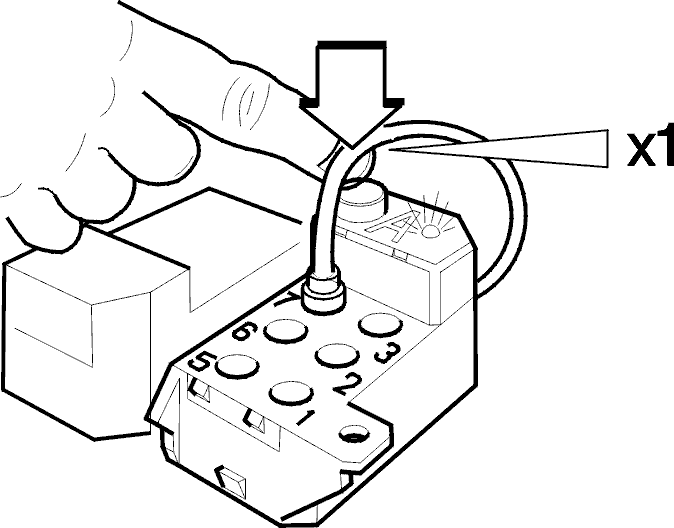

Watch the LED, count the number of flashes and note down the DTC.
- Press the button again to see if there are any more DTCs to come. DTCs are displayed in the order in which they are stored. Once all DTCs have been displayed, they are repeated in the same order.
- To erase DTCs, see Erasing DTCs .
DTCs
| Code | Display text |
| 1-1-1 | No faults found by diagnostic system |
| 1-1-2 | Fuel gauge sensor short-circuit |
| 1-1-3 | Fuel gauge sensor open-circuit |
| 1-2-1 | Temperature signal interval too short |
| 1-2-2 | Temperature signal interval too long |
| 1-2-3 | Digital output 48 pulse short-circuit to supply |
| 1-3-1 | Digital output 12 pulse short-circuit to supply |
| 1-3-2 | No RPM sensor signal |
| 1-3-3 | Tank signal to trip computer short-circuit to supply |
