Front Axle Speed Sensor Overview

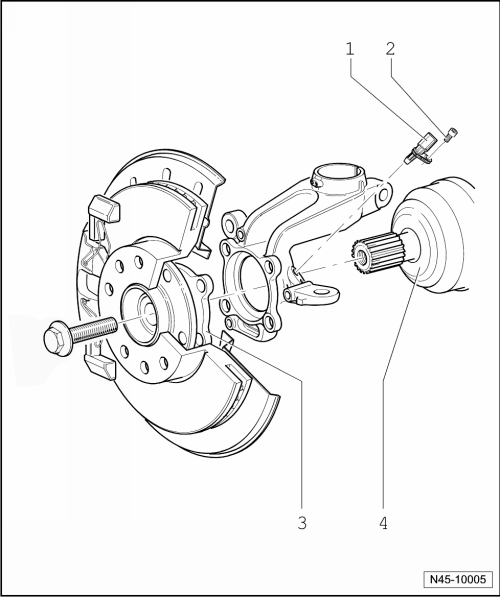

Fig 1: ABS System Components On Front Axle, Removing And Installing
GWWN45-10005Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. ABS Speed Sensor
    • Before inserting sensor, clean inner surface of bore hole and coat with hot bolt paste G 052 112 A3
    • Removing and installing, refer to FRONT AXLE SPEED SENSOR
  2. Hex Socket Bolt
    • 8 Nm
  3. Wheel Hub with Wheel Bearing
    • The ABS sensor ring is installed in the wheel bearing
  4. Drive Axle
