Front Axle Speed Sensor

Removing

-- Raise the vehicle.

-- Separate the speed sensor and speed sensor wiring connector -1-.

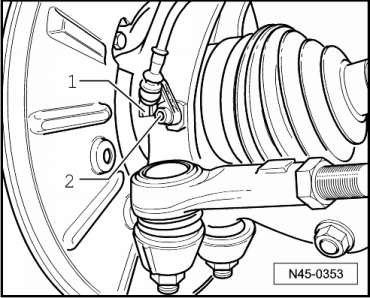

Fig 1: ABS Speed Sensor On Front Axle, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -2- from wheel bearing housing.

-- Remove ABS speed sensor from wheel bearing housing.

Installing

-- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with hot bolt paste G 052 112 A3.

-- Insert the speed sensor into the hole in the wheel bearing housing and tighten the bolt to 8 Nm.

-- Connect speed sensor to speed sensor wiring.
