Sunroof Window Motor Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

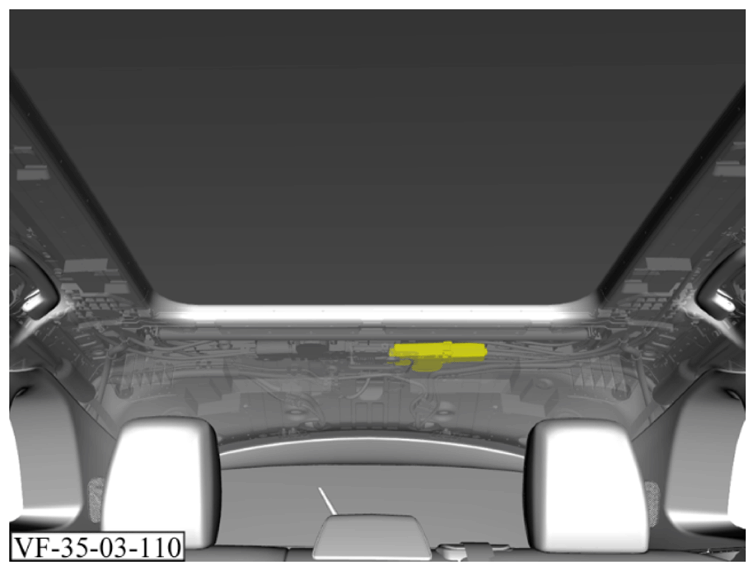

Fig 1: Sunroof Window Motor Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Loosen the headlining trim panel and place it in the vehicle. Do not remove the headlining trim panel. Refer to HEADLINING TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

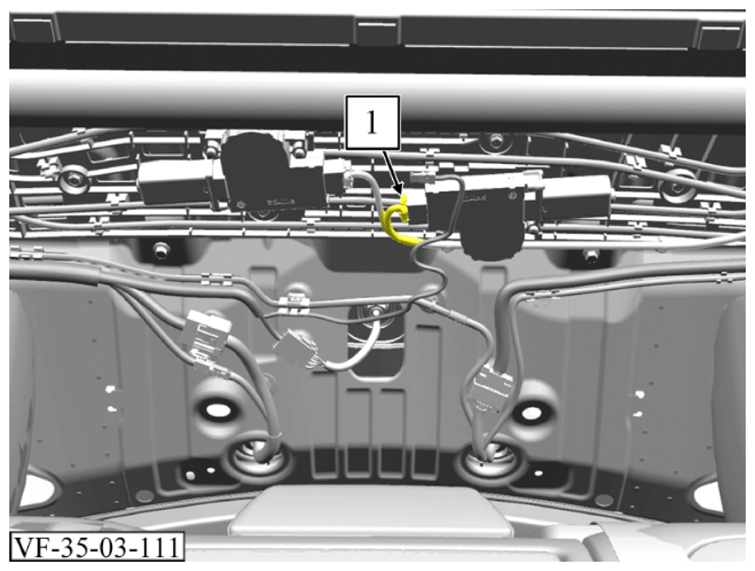

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

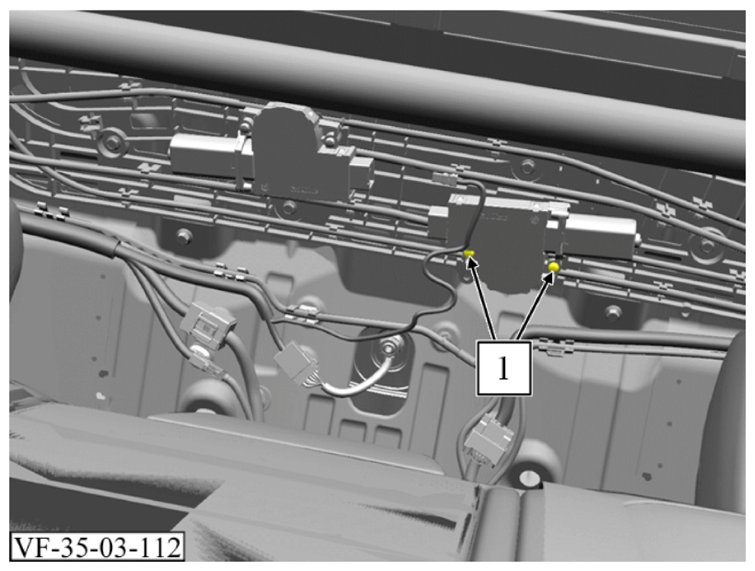

3. Remove 2 screws (1).

   Torque: 2.5 Nm

   Courtesy of VINFAST, LLC

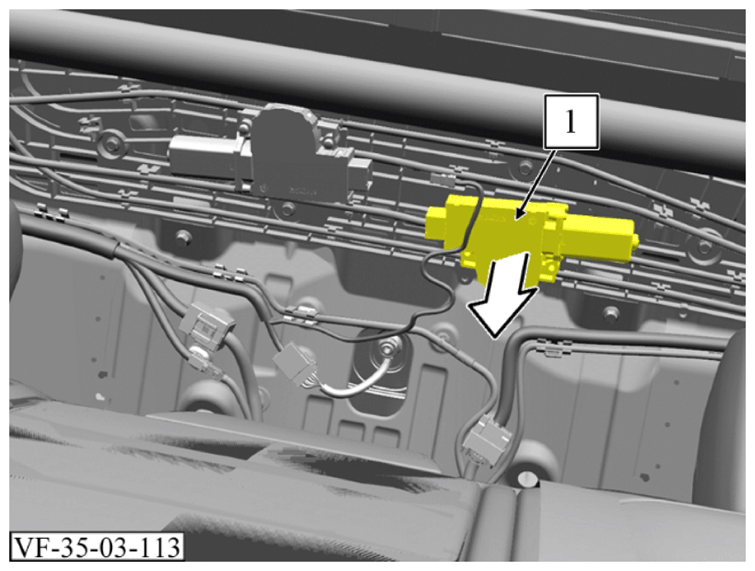

4. Remove the sunroof window motor (1) in the direction of the arrow.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install the headlining trim panel. Refer to HEADLINING TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Initialize the Sunroof Motor. Refer to SUNROOF MOTOR INITIALIZATION
