Sunroof Motor Initialization

Mobile Repair Possible:  Van/Car

Initialization Procedure:

Sunroof recalibration is only available while in park

Courtesy of VINFAST, LLC

Navigate to the sunroof controls screen on the vehicle display.

1. Ignition On.

   Courtesy of VINFAST, LLC

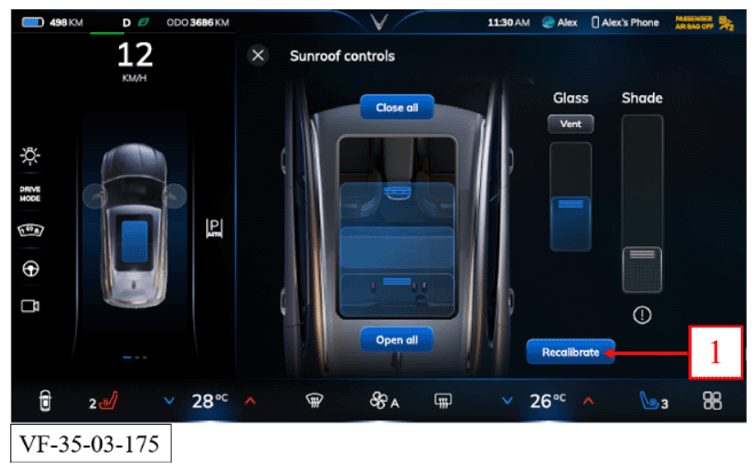

2. Activate the recalibration button (1) to open the recalibration screen.

   Courtesy of VINFAST, LLC

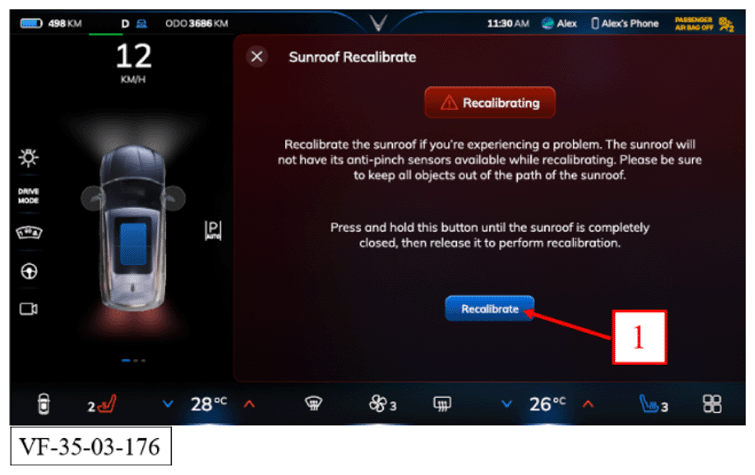

3. Press and hold button (1) to begin recalibration.

   Courtesy of VINFAST, LLC

4. Do not interfere with the sunroof window or sunshade as it moves during the recalibration process.

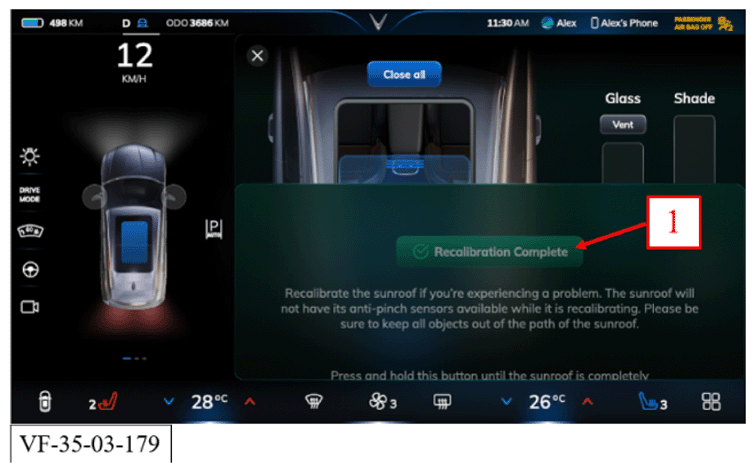

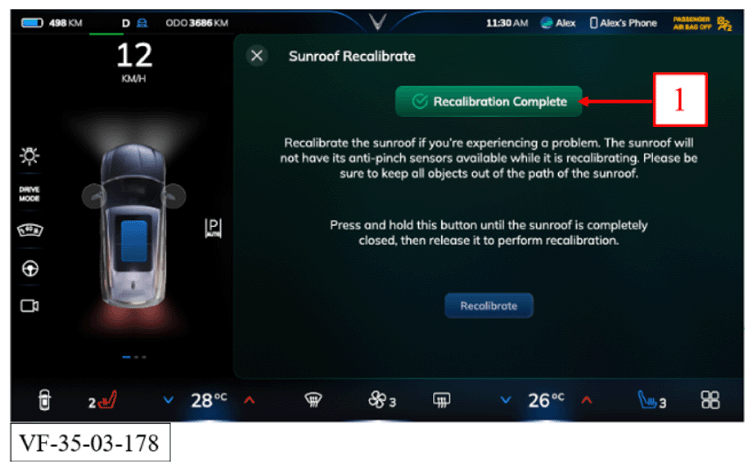

   You will be notified when recalibration is complete (1).

   Courtesy of VINFAST, LLC

   Recalibration complete.

5. The overlay (1) disappears after 2 second.

   Courtesy of VINFAST, LLC

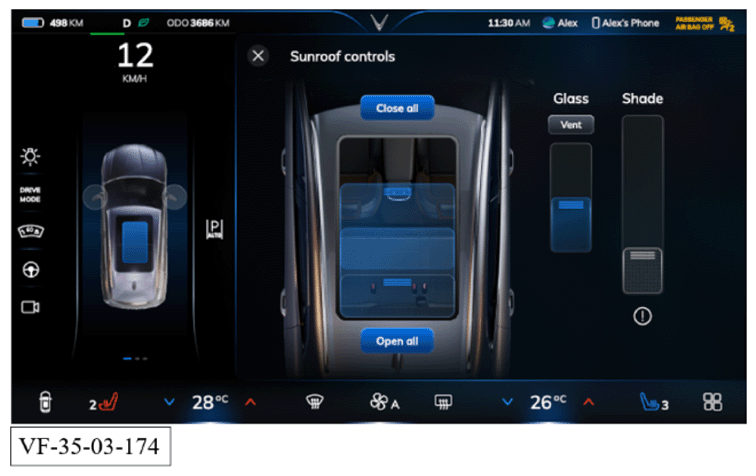

   Sunroof default state.

6. The screen will return to its default state for sunroof controls (1).
