Cannot Lock Charging Connector [05/2019 - ]: Wiring Diagram

Refer to the wiring diagram for PISW circuit.

Refer to WIRING DIAGRAM

Refer to the wiring diagram for Control Pilot Signal Circuit.

Refer to WIRING DIAGRAM

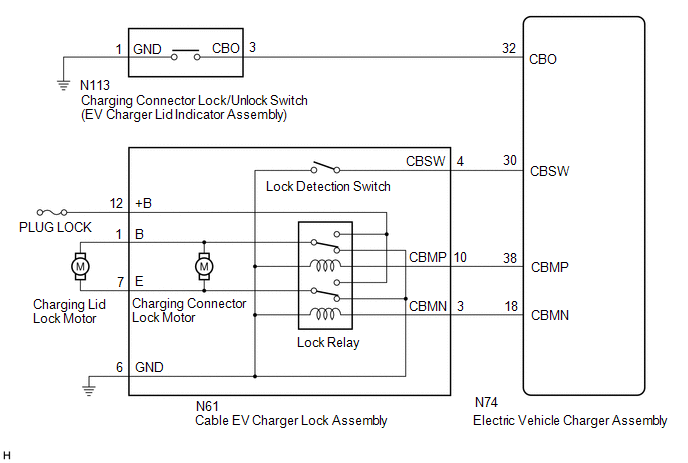

GTY993235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
