Plug-In Charge Control System - Diagnostic Codes
>>
Plug-In Charge Control System
>>
DTC P0D56-11: Charging Connector Proximity Detection Circuit Short to Ground [09/2016 - ]
>>

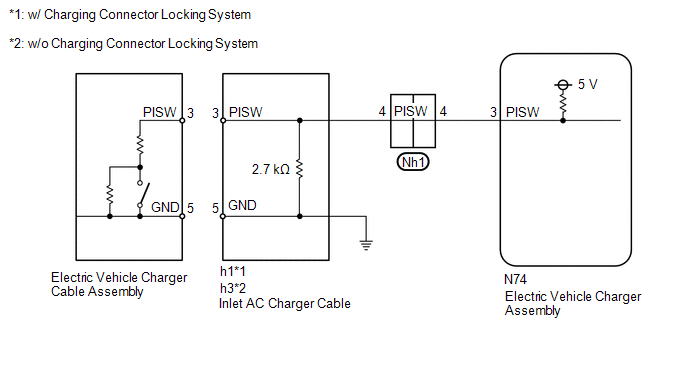

Wiring Diagram
DTC P0D56-11: Charging Connector Proximity Detection Circuit Short to Ground [09/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
