Inspection Procedure
- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - EACH ECU)
- Disconnect the D48 and P4 ECU connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

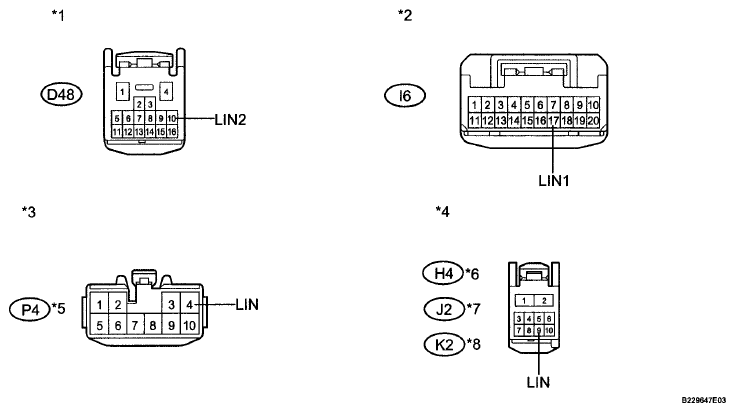

Text in Illustration
ILLUSTRATION LEGEND*1 Front view of wire harness connector (to Main Body ECU (Driver Side Junction Block Assembly)) *2 Front view of wire harness connector (to Power Window Regulator Master Switch Assembly) *3 Front view of wire harness connector (to Sliding Roof ECU (Sliding Roof Drive Gear Sub-assembly)) *4 Front view of wire harness connector (to Power Window Regulator Motor Assembly (for Each Door)) *5 w/ Sliding Roof *6 for Front Passenger Side *7 for Rear RH Side *8 for Rear LH Side - Disconnect the H4, J2 and K2 motor connectors.
- Measure the resistance and voltage according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition D48-10 (LIN2) - I6-17 (LIN1) Always Below 1 Ω D48-10 (LIN2) - H4-9 (LIN) Always Below 1 Ω D48-10 (LIN2) - K2-9 (LIN) Always Below 1 Ω D48-10 (LIN2) - J2-9 (LIN) Always Below 1 Ω D48-10 (LIN2) - P4-4 (LIN) Always Below 1 Ω D48-10 (LIN2) - Body ground Always 10 kΩ or higher Standard Voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition D48-10 (LIN2) - Body ground Always Below 1 V NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- Disconnect the D48 and P4 ECU connectors.
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Remove the multiplex network master switch assembly (See REMOVAL ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition 16 (LIN2) - 17 (LIN1) Always Below 1 Ω Text in Illustration
ILLUSTRATION LEGEND*1 Component without harness connected (Multiplex Network Master Switch Assembly) Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See REMOVAL )
OK: Go to Next Step
- CHECK REMOTE UP / DOWN FUNCTION
- Check that the manual up/down function using power window regulator switch assembly can operate the front passenger side, rear LH side rear RH side power windows.
OK: Manual up/down function is normal .
Result
RESULT CHARTResult Proceed to OK A NG (Front passenger side power window manual up/down function does not operate) B NG (Rear LH side power window manual up/down function does not operate) C NG (Rear RH side power window manual up/down function does not operate) D B: GO TO OTHER PROBLEM (Proceed to FRONT PASSENGER SIDE POWER WINDOW DOES NOT OPERATE WITH FRONT PASSENGER SIDE POWER WINDOW SWITCH )
C: GO TO OTHER PROBLEM (Proceed to REAR POWER WINDOW LH DOES NOT OPERATE REAR POWER WINDOW SWITCH LH )
D: GO TO OTHER PROBLEM (Proceed with REAR POWER WINDOW RH DOES NOT OPERATE WITH REAR POWER WINDOW SWITCH RH )
A: Go to Next Step
- Check that the manual up/down function using power window regulator switch assembly can operate the front passenger side, rear LH side rear RH side power windows.
- READ VALUE USING TECHSTREAM (Master Switch)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Master Switch / Data List.
- Read the Data List according to the display on the Techstream.
Master Switch (Power Window Regulator Master Switch Assembly)
MASTER SWITCH DATA LIST REFERENCETester Display Measurement Item/Range Normal Condition Diagnostic Note P Door P/W Auto SW Front passenger side power window auto up/down switch signal / ON or OFF ON: Front passenger door power window auto switch operated
OFF: Front passenger door power window auto switch not operated- RL Door P/W Auto SW Rear LH side power window auto up/down switch signal / ON or OFF ON: Rear LH power window auto switch operated
OFF: Rear LH power window auto switch not operated- RR Door P/W Auto SW Rear RH side power window auto up/down switch signal / ON or OFF ON: Rear RH power window auto switch operated
OFF: Rear RH power window auto switch not operated- P Door P/W Up SW Front passenger side power window manual up switch signal / ON or OFF ON: Front passenger door power window manual up switch operated
OFF: Front passenger door power window manual up switch not operated- RL Door P/W Up Switch Rear LH side power window manual up switch signal / ON or OFF ON: Rear LH power window manual up switch operated
OFF: Rear LH power window manual up switch not operated- RR Door P/W Up Switch Rear RH side power window manual up switch signal / ON or OFF ON: Rear RH power window manual up switch operated
OFF: Rear RH power window manual up switch not operated- P Door P/W Down SW Front passenger side power window manual down switch signal / ON or OFF ON: Front passenger door power window manual down switch operated
OFF: Front passenger door power window manual down switch not operated- RL Door P/W Down SW Rear LH side power window manual down switch signal / ON or OFF ON: Rear LH power window manual down switch operated
OFF: Rear LH power window manual down switch not operated- RR Door P/W Down SW Rear RH side power window manual down switch signal / ON or OFF ON: Rear RH power window manual down switch operated
OFF: Rear RH power window manual down switch not operated- Window Lock Switch Status Window lock switch signal / ON or OFF ON: Window lock switch LOCK position
OFF: Window lock switch UNLOCK position- OK: On the Techstream screen, ON or OFF is displayed accordingly .
Result
RESULT CHARTResult Proceed to NG A OK (Front passenger side power window remote up/ down function does not operate) B OK (Rear LH side power window remote up/down function does not operate) C OK (Rear RH side power window remote up/down function does not operate) D B: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side) (See REMOVAL )
C: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Side) (See REMOVAL )
D: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Side) (See REMOVAL )
A: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See REMOVAL )
