Amplifier Antenna: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AMPLIFIER ANTENNA ASSEMBLY (w/o Sliding Roof)
    1. Temporarily install the amplifier antenna assembly, aligning it with the marking on the roof headlining assembly.
    2. Attach pieces of adhesive tape in the sequence shown in the illustration, aligning them with the markings on the roof headlining assembly.
      NOTE: To prevent noise, be sure to attach adhesive tape securely.

      HINT:

      Adjust the length of the amplifier antenna assembly at point A shown in the illustration.

    3. Insert the amplifier antenna assembly into the slit on the roof headlining assembly to install the amplifier antenna assembly to the roof headlining assembly.

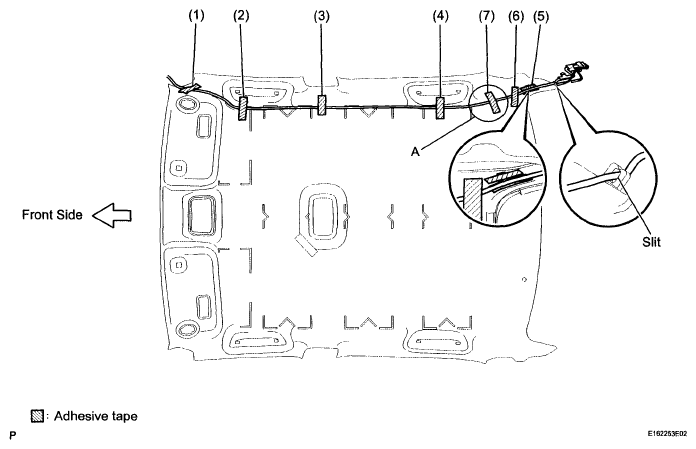

    Fig 1: Inserting Amplifier Antenna Assembly Into Slit On Roof Headlining Assembly
    G06010610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AMPLIFIER ANTENNA ASSEMBLY (w/ Sliding Roof)
    1. Temporarily install the amplifier antenna assembly, aligning it with the marking on the roof headlining assembly.
    2. Attach pieces of adhesive tape and clamp in the sequence shown in the illustration, aligning them with the markings on the roof headlining assembly.
      NOTE: To prevent noise, be sure to attach adhesive tape securely.

      HINT:

      Adjust the length of the amplifier antenna assembly at point A shown in the illustration.

    3. Insert the amplifier antenna assembly into the slit on the roof headlining assembly to install the amplifier antenna assembly to the roof headlining assembly.

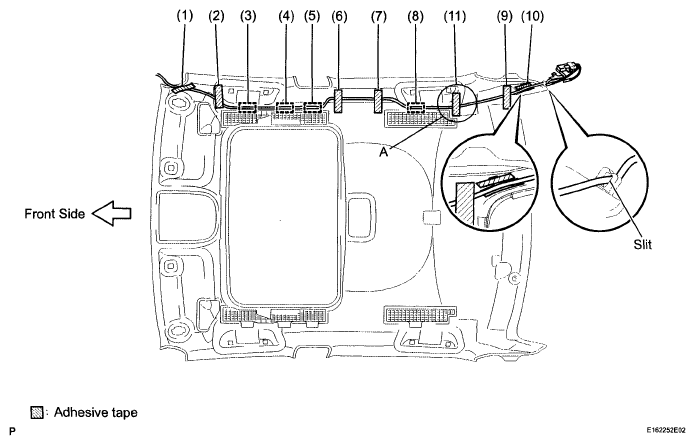

    Fig 2: Inserting Amplifier Antenna Assembly Into Slit On Roof Headlining Assembly
    G06010611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)  (See INSTALLATION )
  4. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)  (See INSTALLATION )
  5. INSTALL SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)  (See INSTALLATION )
  6. INSTALL VISOR HOLDER  (See INSTALLATION )
  7. INSTALL INNER REAR VIEW MIRROR COVER (w/ EC Mirror)  (See INSTALLATION )
  8. INSTALL NO. 1 ROOM LIGHT ASSEMBLY  (See INSTALLATION )
  9. INSTALL REAR ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  10. INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  11. INSTALL VISOR ASSEMBLY LH  (See INSTALLATION )
  12. INSTALL VISOR ASSEMBLY RH  (See INSTALLATION )
  13. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)  (See INSTALLATION )
  14. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)  (See INSTALLATION )
  15. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH  (See INSTALLATION )
  16. INSTALL ROOF SIDE INNER GARNISH BOARD LH  (See INSTALLATION )
  17. INSTALL REAR SEAT SIDE GARNISH LH  (See INSTALLATION )
  18. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH  (See INSTALLATION )
  19. INSTALL ROOF SIDE INNER GARNISH BOARD RH  (See INSTALLATION )
  20. INSTALL REAR SEAT SIDE GARNISH RH  (See INSTALLATION )
  21. INSTALL REAR SEATBACK ASSEMBLY LH  (See INSTALLATION )
  22. INSTALL REAR SEATBACK ASSEMBLY RH  (See INSTALLATION )
  23. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  24. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
  25. INSTALL REAR SEAT HEADREST ASSEMBLY LH
  26. INSTALL REAR SEAT HEADREST ASSEMBLY RH
  27. INSTALL SPARE WHEEL COVER  (See INSTALLATION )
  28. INSTALL UPPER CENTER PILLAR GARNISH LH  (See INSTALLATION )
  29. INSTALL LOWER CENTER PILLAR GARNISH LH  (See INSTALLATION )
  30. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  31. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)  (See INSTALLATION )
  32. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  33. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  34. INSTALL UPPER CENTER PILLAR GARNISH RH  (See INSTALLATION )
  35. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  (See INSTALLATION )
  36. INSTALL LOWER CENTER PILLAR GARNISH RH  (See INSTALLATION )
  37. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)  (See INSTALLATION )
  38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  39. INSTALL REAR DOOR SCUFF PLATE RH  (See INSTALLATION )
  40. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  41. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  43. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  44. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  45. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See INSTALLATION )
  46. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  47. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  48. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  49. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  (See INSTALLATION )
  50. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  51. INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)  (See INSTALLATION )
  52. INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)  (See INSTALLATION )
  53. INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)  (See INSTALLATION )
  54. INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)  (See INSTALLATION )
  55. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  56. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  (See DISASSEMBLY )
  57. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  58. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  59. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  60. INSTALL SHIFT LOCK CONTROL UNIT ASSEMBLY (for Automatic Transaxle)

    for U250E: (See INSTALLATION )

    for U341E: (See INSTALLATION )

  61. INSTALL SHIFT LEVER ASSEMBLY (for Manual Transaxle)

    for C59: (See INSTALLATION )

    for E351: (See INSTALLATION )

  62. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Automatic Transaxle)

    for U250E: (See INSTALLATION )

    for U341E: (See COMPONENTS )

  63. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Manual Transaxle)

    for C59: (See INSTALLATION )

    for E351: (See INSTALLATION )

  64. ADJUST TRANSMISSION CONTROL SELECT CABLE (for Manual Transaxle)

    for C59: (See ADJUSTMENT )

    for E351: (See ADJUSTMENT )

  65. INSTALL CONSOLE BOX ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  66. INSTALL CONSOLE BOX ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  67. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  68. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  69. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  70. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  71. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  (See INSTALLATION )
  72. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  73. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  74. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  75. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  76. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  (See INSTALLATION )
  77. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  (See INSTALLATION )
  78. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)  (See INSTALLATION )
  79. INSPECT FRONT SEAT SLIDE ADJUSTER LOCK (for Manual Seat)  (See INSTALLATION )
  80. INSTALL INNER SEAT TRACK COVER LH (for Manual Seat)  (See INSTALLATION )
  81. INSTALL OUTER SEAT TRACK COVER LH (for Manual Seat)  (See INSTALLATION )
  82. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  83. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)  (See INSTALLATION )
  84. INSTALL INNER SEAT TRACK COVER LH (for Power Seat)  (See INSTALLATION )
  85. INSTALL OUTER SEAT TRACK COVER LH (for Power Seat)  (See INSTALLATION )
  86. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  87. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)  (See INSTALLATION )
  88. INSPECT FRONT SEAT SLIDE ADJUSTER LOCK (for Manual Seat)  (See INSTALLATION )
  89. INSTALL INNER SEAT TRACK COVER RH (for Power Seat)  (See INSTALLATION )
  90. INSTALL OUTER SEAT TRACK COVER RH (for Manual Seat)  (See INSTALLATION )
  91. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  92. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
  93. INSPECT SHIFT LEVER POSITION (for Automatic Transaxle)

    for U250E: (See ADJUSTMENT )

    for U341E: (See REMOVAL )

  94. ADJUST SHIFT LEVER POSITION (for Automatic Transaxle)

    for U250E: (See ADJUSTMENT )

    for U341E: (See REMOVAL )

  95. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  96. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)  (See INSTALLATION )
