Room Light: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 ROOM LIGHT ASSEMBLY
1. Engage the guide and claw in the order shown in the illustration, and install the room light cover.
  HINT:

  Use the same procedure for the RH side and the LH side.

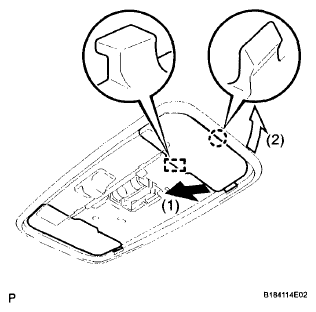

  Fig 1: Identifying No. 1 Room Light Assembly Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the lens cover.

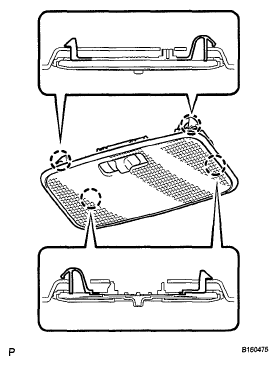

  Fig 2: Identifying Lens Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the room light switch base to the No. 1 room light assembly.

  Fig 3: Identifying Claws Location On Room Light Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 4 claws and install the No. 1 room light assembly.

Fig 4: Identifying No. 1 Room Light Assembly Claws
