Wiper Switch: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
1. Engage the claw and install the windshield wiper switch assembly as shown in the illustration.
2. Connect the 2 connectors.
INSTALL UPPER STEERING COLUMN COVER (See INSTALLATION )
INSTALL LOWER STEERING COLUMN COVER (See INSTALLATION )

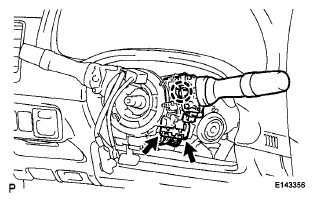

Fig 1: Locating Windshield Wiper Switch Assembly Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
ADJUST SPIRAL CABLE (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO.3 STEERING WHEEL COVER (See DISPOSAL )
INSTALL LOWER NO.2 STEERING WHEEL COVER (See DISPOSAL )
INSPECT STEERING WHEEL CENTER POINT
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (See DISPOSAL )
INSPECT SRS WARNING LIGHT

(See DIAGNOSIS SYSTEM )
