Rear Stabilizer Bar: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR STABILIZER LINK ASSEMBLY LH
   1. Remove the nut and disconnect the link from the suspension No. 2 arm.
   2. Remove the nut and link from the stabilizer bar.
3. REMOVE REAR STABILIZER LINK ASSEMBLY RH

   HINT:

   Use the same procedures described for the LH side.

4. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See REMOVAL  )

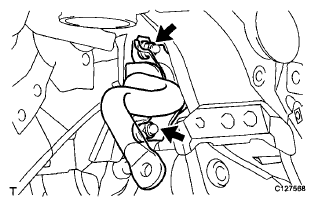

   Fig 1: Locating Rear Stabilizer Link Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

   HINT:

   Use the same procedures described for the LH side.

6. REMOVE REAR COIL SPRING INSULATOR UPPER LH  (See REMOVAL  )
7. REMOVE REAR COIL SPRING LH  (See REMOVAL  )
8. REMOVE REAR COIL SPRING INSULATOR LOWER LH  (See REMOVAL  )
9. REMOVE REAR COIL SPRING INSULATOR UPPER RH

   HINT:

   Use the same procedures described for the LH side.

10. REMOVE REAR COIL SPRING RH

    HINT:

    Use the same procedures described for the LH side.

11. REMOVE REAR COIL SPRING INSULATOR LOWER RH

    HINT:

    Use the same procedures described for the LH side.

12. REMOVE REAR NO. 1 STABILIZER BAR BRACKET
    1. Remove the 2 nuts and bracket.

       HINT:

       Use the same procedures for the other side.

13. REMOVE REAR STABILIZER BAR
    1. Remove the stabilizer bar from the vehicle.
       NOTE: When removing the stabilizer bar from the vehicle, make sure not to damage the sensor wire, brake hose, etc.
       Fig 2: Locating Rear No. 1 Stabilizer Bar Bracket Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE REAR STABILIZER BUSH
    1. Remove the 2 stabilizer bushes from the stabilizer bar.
