Upper Instrument Panel: Installation

  1. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Attach the 6 clips and 5 claws to install the instrument panel.

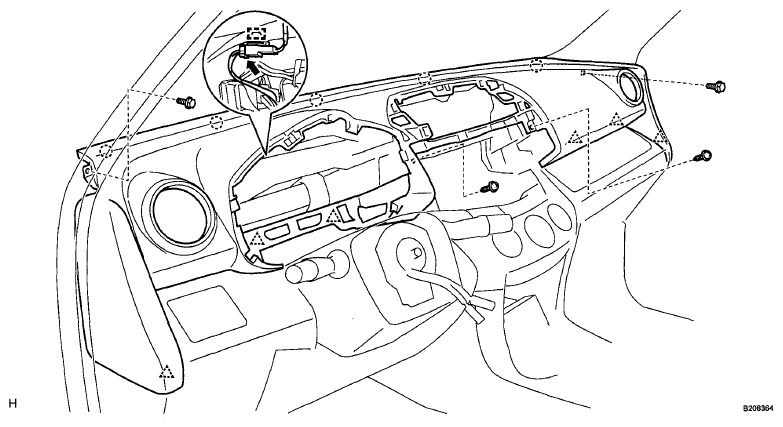

      Fig 1: Identifying Upper Instrument Panel Sub-Assembly Bolts And Screws
      G06000718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and attach the clamp.
    3. Install the 2 bolts and 2 screws.
    4. Connect the passenger airbag connector.
    5. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

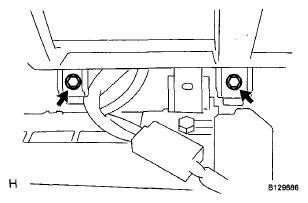

    Fig 2: Locating Passenger Airbag Bolts
    G06000717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Attach the 2 hinges to install the door.

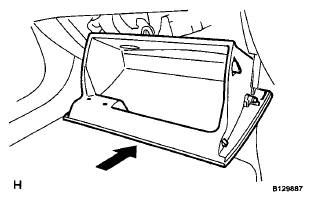

      Fig 3: Installing Glove Compartment Door
      G06000745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw to the glove compartment door stopper.
    3. While pushing in the sides of the glove compartment door in the direction indicated by the arrows in the illustration, close the door to engage it to the 2 stoppers.
  3. INSTALL FRONT PILLAR GARNISH LH  (See FUEL LID LOCK CONTROL )
  4. INSTALL FRONT PILLAR GARNISH RH  (See FUEL LID LOCK CONTROL )

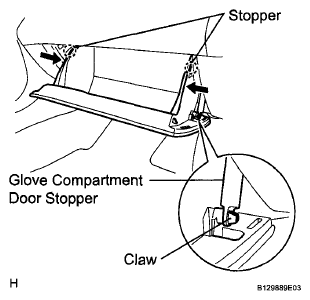

    Fig 4: Pushing Sides Of Glove Compartment Door
    G06000746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY CENTER
    1. Attach the 5 clips to install the instrument panel register.
  6. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)  (See INSTALLATION )
  7. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  (See INSTALLATION )

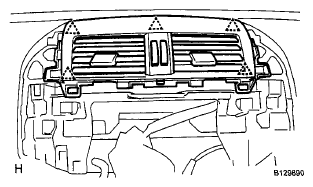

    Fig 5: Identifying Instrument Panel Register Assembly Clips
    G06000714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
    2. Attach the 3 clips and 2 claws to install the cluster finish panel.

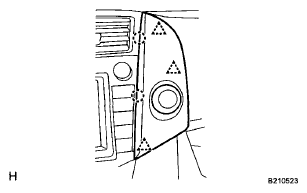

    Fig 6: Identifying No. 1 Instrument Cluster Finish Panel Center Clips And Claws
    G06000748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
    2. Attach the 3 clips and 2 claws to install the cluster finish panel.

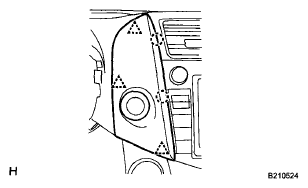

    Fig 7: Identifying No. 2 Instrument Cluster Finish Panel Center Clips And Claws
    G06000749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips to install the combination meter.
    3. Install the 2 screws.

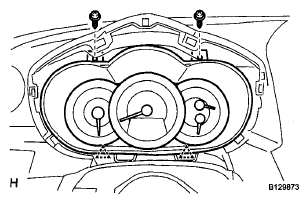

    Fig 8: Identifying Combination Meter Assembly Screws
    G06000750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Attach the 4 clips and 6 claws to install the instrument cluster finish panel.
  12. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  13. INSTALL STEERING WHEEL PAD ASSEMBLY  (See INSTALLATION )
    Fig 9: Identifying Instrument Cluster Finish Panel Clips And Claws
    G05586225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See DIAGNOSIS SYSTEM ).
