Lower Instrument Panel: Installation

  1. INSTALL LOWER INSTRUMENT PANEL
    1. Connect the connectors, attach the clamps and install the lower instrument panel.

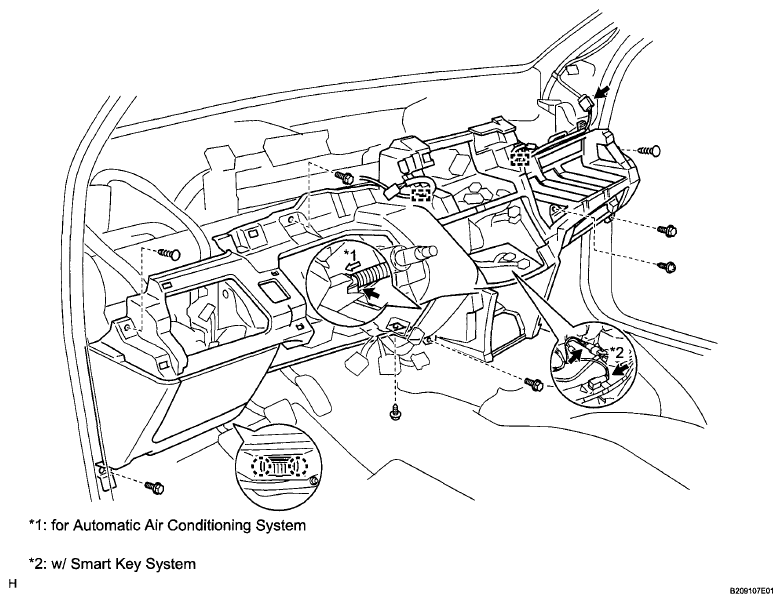

      Fig 1: Identifying Lower Instrument Panel Connector And Screws
      G06000790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Smart Key System:

      Connect the connector.

    3. for Automatic Air Conditioning System:

      Install the cooler thermistor hose and connect the connector.

    4. Attach the claws to install the DLC3.
    5. Install the 4 bolts, 2 screws and 2 clips.
  2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Attach the 3 claws to install the hood lock control lever.

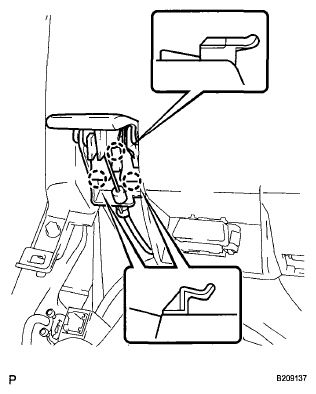

    Fig 2: Identifying Hood Lock Control Lever Claws
    G06000776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL POWER STEERING ECU ASSEMBLY
    1. Install the ECU with the 3 nuts.
    2. Connect the connectors.

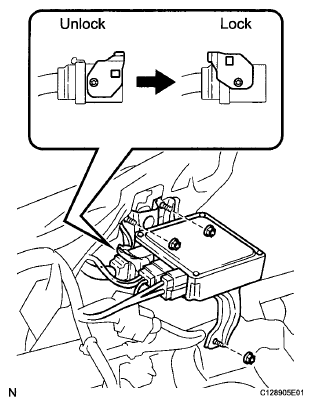

    NOTE: Be sure to engage the lock of the connector as shown in the illustration.
    Fig 3: Engaging Lock Of Connector
    G06000792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL BOX
    1. Attach the 6 clips to install the instrument panel box.
    2. Install the screw.

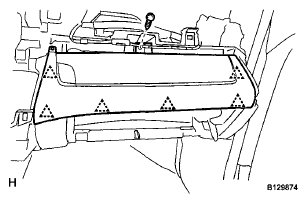

    Fig 4: Identifying Instrument Panel Box Clips
    G06000774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 SWITCH HOLE BASE
    1. Connect the connectors.
    2. Attach the 4 clips to install the switch hole base.

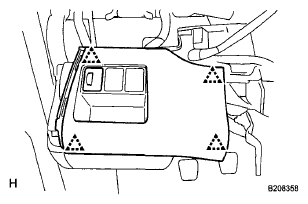

    Fig 5: Identifying Switch Hole Base Clips
    G06000773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Attach the 3 claws to install the instrument panel under cover.

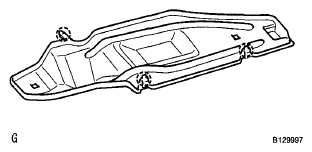

    Fig 6: Identifying Instrument Panel Under Cover Claws
    G06000772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
    1. Attach the 8 claws to install the lower instrument panel finish panel.
    2. Install the 2 screws.
  8. INSTALL COWL SIDE TRIM BOARD RH  (See FUEL LID LOCK CONTROL )

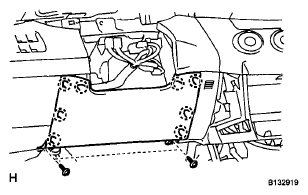

    Fig 7: Identifying Lower Instrument Panel Finish Panel Screws And Claws
    G06000771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL COWL SIDE TRIM BOARD LH  (See FUEL LID LOCK CONTROL )
  10. INSTALL FRONT DOOR SCUFF PLATE INSIDE RH  (See FUEL LID LOCK CONTROL )
  11. INSTALL FRONT DOOR SCUFF PLATE INSIDE LH  (See FUEL LID LOCK CONTROL )
  12. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
    1. Install the rear console box with the 2 bolts and attach the wire harness clamp.

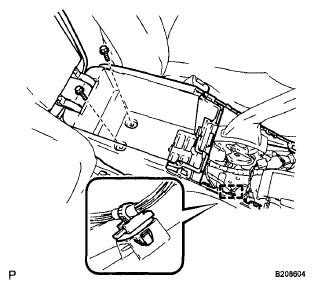

      Fig 8: Identifying Rear Console Box Sub-Assembly Bolts And Wire Harness Clamp
      G06000769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

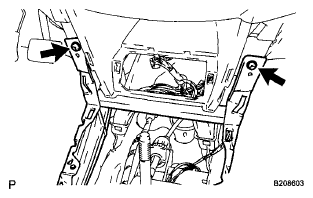

    Fig 9: Locating Rear Console Box Screws
    G06000770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.

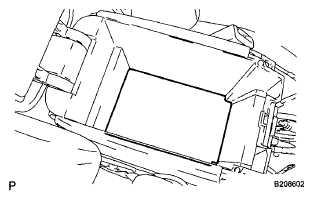

    Fig 10: Identifying Console Box Carpet
    G06000799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
    1. Attach the 2 claws to install the instrument panel bracket cover.

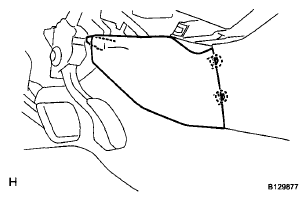

    Fig 11: Identifying No. 1 Instrument Panel Bracket Cover Claws (Inner LH)
    G06000767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
    1. Attach the 2 claws to install the instrument panel bracket cover.

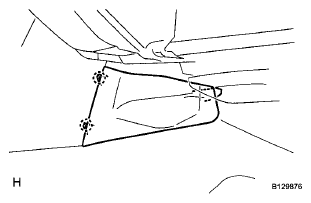

    Fig 12: Identifying No. 1 Instrument Panel Bracket Cover Claws (Inner RH)
    G06000801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL CONSOLE REAR END PANEL
    1. Attach the 6 claws to install the console rear end panel.

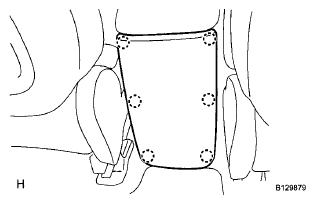

      Fig 13: Identifying Console Rear End Panel Claws
      G06000763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for AC Power Supply:
      1. Connect the connectors and attach the wire harness clamp.

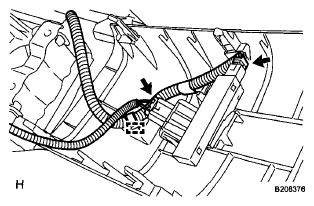

        Fig 14: Locating Connectors And Wire Harness Clamp
        G06000765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Attach the 2 clips and 4 claws to install the console rear end panel.

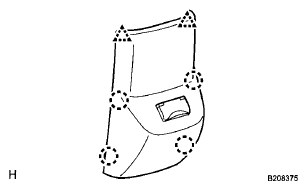

      Fig 15: Identifying Console Rear End Panel Claws And Clips
      G06000764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 4 clips to install the upper rear console panel.

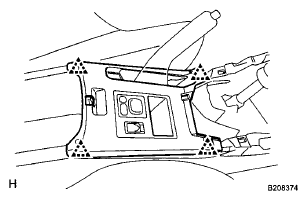

    Fig 16: Identifying Upper Rear Console Panel Clips And Screws
    G06000762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CONSOLE CUP HOLDER BOX
    1. Attach the 2 clips to install the cup holder box.
    2. Install the 2 screws.

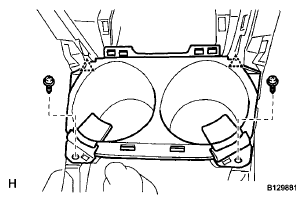

    Fig 17: Identifying Console Cup Holder Box Screws
    G06000806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL SWITCH BASE
    1. Connect the connectors.
    2. Attach the 2 clips and 2 claws to install the switch base.

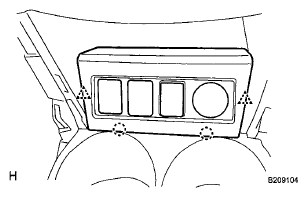

    Fig 18: Identifying Switch Base Clips And Claws
    G06000760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips and 4 claws to install the floor shift position indicator housing.

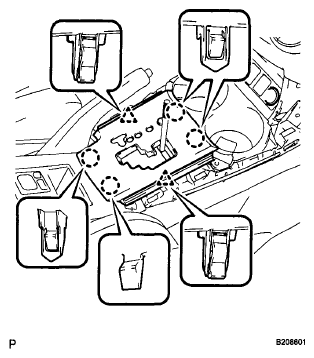

    Fig 19: Identifying Floor Shift Position Indicator Housing Sub-Assembly Clips And Claws
    G06000808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Attach the 4 clips to install the upper panel garnish.

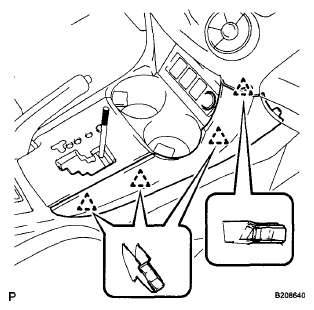

    Fig 20: Identifying No. 2 Console Upper Panel Garnish Clips
    G06000809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Attach the 4 clips to install the upper panel garnish.

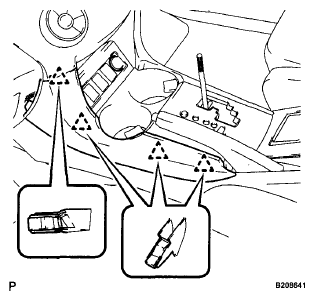

    Fig 21: Identifying No. 1 Console Upper Panel Garnish Clips
    G06000810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Twist the shift lever knob in the direction indicated by the arrow to install it.

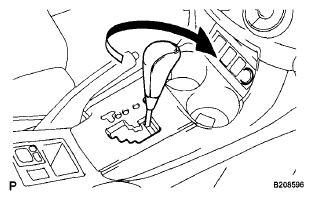

    Fig 22: Installing Shift Lever Knob
    G06000811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL HEATER CONTROL SUB-ASSEMBLY (for Automatic Air Conditioning System)  (See INSTALLATION )
  25. INSTALL HEATER CONTROL SUB-ASSEMBLY (for Manual Air Conditioning System)  (See AIR CONDITIONING AMPLIFIER )
  26. INSTALL COMBINATION SWITCH ASSEMBLY  (See INSTALLATION )
  27. INSTALL SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  28. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  29. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the upper instrument panel (See INSTALLATION ).
  30. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  31. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See DIAGNOSIS SYSTEM ).
