Seat Heater Switch: Installation

  1. INSTALL SEAT HEATER SWITCH
    1. Attach the 2 claws to install the switch.
  2. INSTALL SWITCH BASE  (See INSTALLATION )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

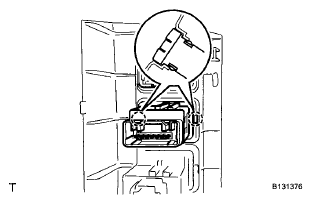

    Fig 1: Identifying Seat Heater Switch Claws
    G06001224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
