Fuel Lid Lock Control: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. for Manual Seat:

      Remove the front seat assembly (See REMOVAL ).

    2. for Power Seat:

      Remove the front seat assembly (See REMOVAL ).

  3. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
    1. Remove the rear No. 1 seat (See REMOVAL ).
  5. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
    1. Remove the rear No. 1 seat (See REMOVAL ).
  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See DISASSEMBLY )
  7. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH  (See DISASSEMBLY )
  8. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH  (See DISASSEMBLY )
  9. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY  (See DISASSEMBLY )
  10. REMOVE SWITCH BASE  (See DISASSEMBLY )
  11. REMOVE CONSOLE CUP HOLDER BOX  (See DISASSEMBLY )
  12. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY  (See DISASSEMBLY )
  13. REMOVE CONSOLE REAR END PANEL  (See DISASSEMBLY )
  14. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH  (See DISASSEMBLY )
  15. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH  (See DISASSEMBLY )
  16. REMOVE CONSOLE BOX CARPET  (See DISASSEMBLY )
  17. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY  (See DISASSEMBLY )
  18. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  19. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  20. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  21. REMOVE COWL SIDE TRIM BOARD RH  (See REMOVAL )
  22. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  23. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  24. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  25. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  26. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  27. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  28. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  29. REMOVE LOWER CENTER PILLAR GARNISH RH  (See REMOVAL )
  30. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  31. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  32. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)  (See REMOVAL )
  33. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  34. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear No. 2 Seat)
    1. Remove the rear No. 2 seat (See REMOVAL ).
  35. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)
    1. Remove the rear No. 2 seat (See REMOVAL ).
  36. REMOVE REAR FLOOR NO. 3 BOARD  (See REMOVAL )
  37. REMOVE REAR FLOOR NO. 2 BOARD  (See REMOVAL )
  38. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE  (See REMOVAL )
  39. REMOVE BACK DOOR WEATHERSTRIP  (See REMOVAL )
  40. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  41. REMOVE REAR DECK TRIM COVER LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  42. REMOVE REAR DECK TRIM COVER RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  43. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat)  (See REMOVAL )
  44. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat)  (See REMOVAL )
  45. REMOVE TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  46. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat)  (See REMOVAL )
  47. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  48. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat)  (See REMOVAL )
  49. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  50. REMOVE FRONT FLOOR CARPET ASSEMBLY
    1. Partially remove the floor carpet.

      HINT:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the lock control cable can be removed in a later step.

  51. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Remove the bolt and fuel lid lock open lever.
    2. Remove the cable from the tape and clamps as shown in the illustration.

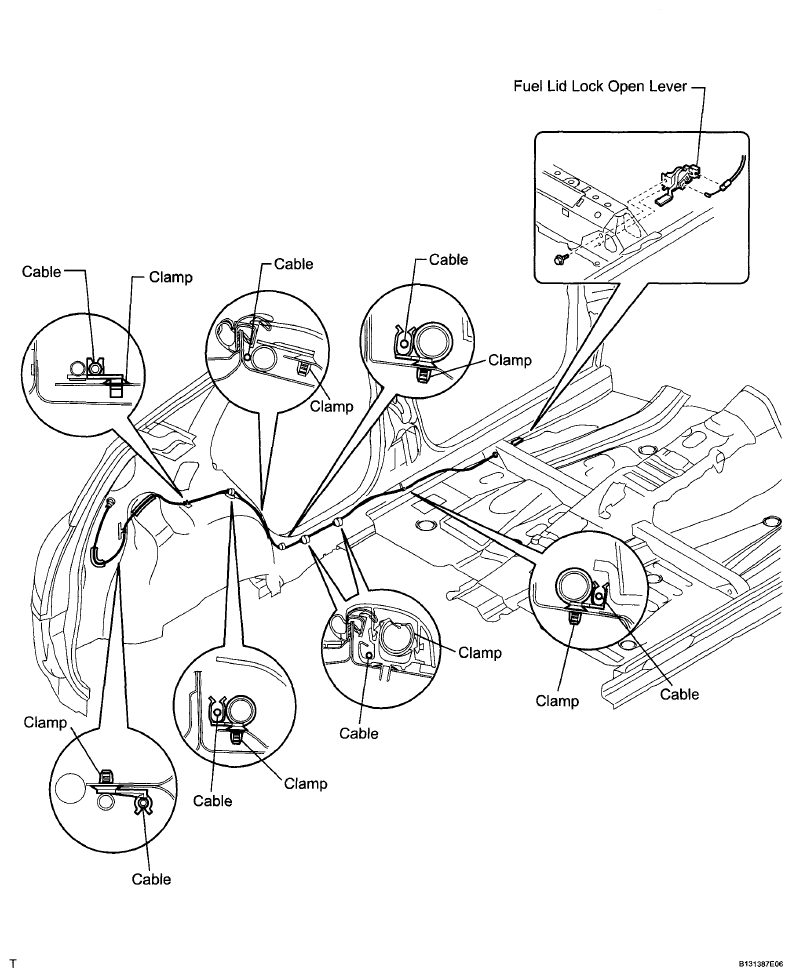

      Fig 1: Identifying Cable And Clamps
      G06006239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the lock retainer counterclockwise and remove the cable from the retainer.

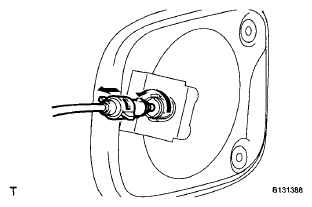

      Fig 2: Turning Lock Retainer Counterclockwise
      G06006240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE FUEL FILLER OPENING LID LOCK RETAINER
    1. Turn the lock retainer clockwise and remove the lock retainer as shown in the illustration.

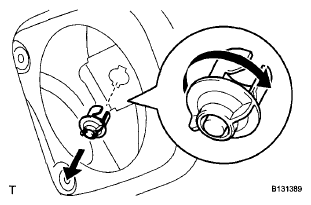

    Fig 3: Turning Lock Retainer Clockwise
    G06006241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
