Lower Instrument Panel: Disassembly

REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
REMOVE FUSE BOX OPENING COVER
1. Detach the 2 claws and 2 clips, and then remove the cover.
REMOVE INSTRUMENT PANEL SAFETY PAD COVER
1. Using a screwdriver, detach the 4 claws and remove the instrument panel safety pad cover.
  HINT:

  Tape the screwdriver tip before use.

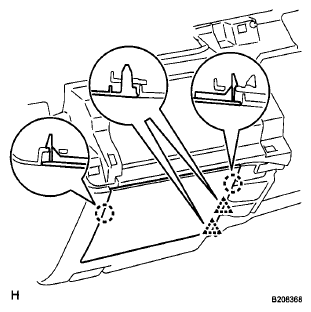

Fig 1: Identifying Fuse Box Opening Cover Clips And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

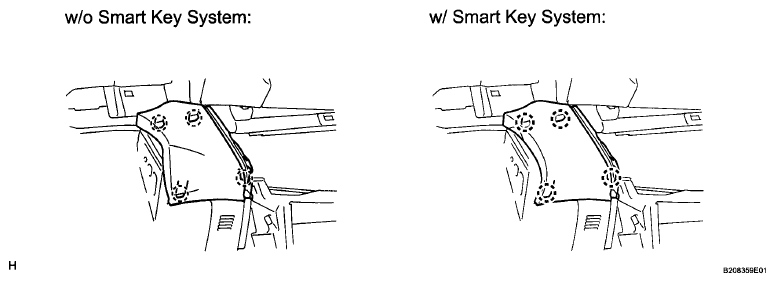

Fig 2: Identifying Instrument Panel Safety Pad Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLER THERMISTOR (for Automatic Air Conditioning System)
1. Detach the claws and remove the cooler thermistor.

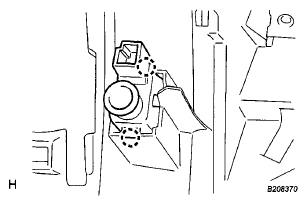

Fig 3: Identifying Cooler Thermistor Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (w/ Smart Key System)
1. Detach the claws and remove the interior illumination light.

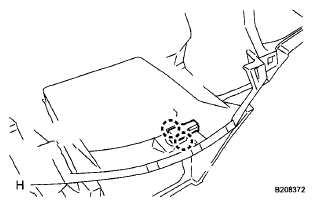

Fig 4: Identifying No. 1 Interior Illumination Light Assembly Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (w/ Smart Key System)
1. Rotate the lights in the direction shown in the illustration, disconnect the wire harness clamps and remove the interior illumination light.

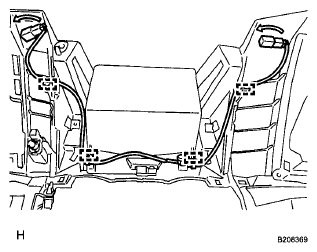

Fig 5: Identifying No. 2 Interior Illumination Light Wire Harness Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ANTENNA CORD SUB-ASSEMBLY
1. Detach the wire harness clamps and remove the antenna cord.

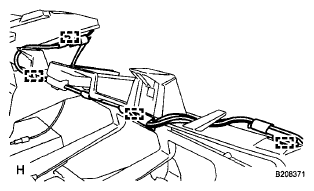

Fig 6: Identifying Antenna Cord Sub-Assembly Wire Harness Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
