Transponder Key Ecu: Installation

INSTALL TRANSPONDER KEY ECU
1. Install the transponder key ECU with the bolt.
2. Attach the clamp.
3. Connect the connector.
INSTALL AIR CONDITIONER UNIT ASSEMBLY
(See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL
(See INSTALLATION )

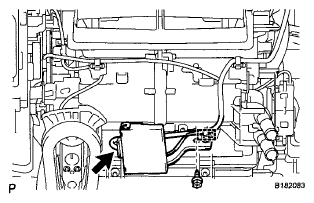

Fig 1: Locating Bolt And Transponder Key ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REGISTER ECU COMMUNICATION ID
NOTE: When replacing the transponder key ECU, perform initialization (See REGISTRATION ).
REGISTER KEY
NOTE: When replacing the transponder key ECU, perform initialization (See REGISTRATION ).
