ID CODE BOX (w/Smart Key System): Installation

INSTALL ID CODE BOX
1. Install the ID code box with the bolt.
2. Attach the clamp.
3. Connect the connector.
INSTALL AIR CONDITIONER UNIT ASSEMBLY
1. Install the air conditioner unit (See INSTALLATION ).

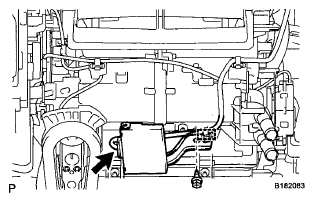

  Fig 1: Locating Bolt And ID Code Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL
1. Install the lower instrument panel (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
