CERTIFICATION ECU (w/Smart Key System): Installation

INSTALL ECU AGGREGATION BOX ASSEMBLY
1. Install the ECU aggregation box with the 2 bolts.
2. Connect the connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

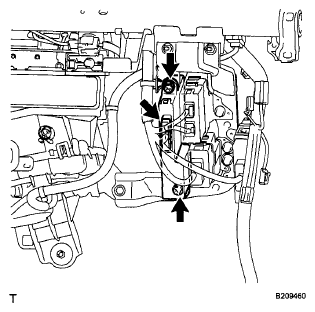

Fig 1: Locating ECU Aggregation Box With Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
