Wireless Door Lock Buzzer: Installation

  1. INSTALL WIRELESS DOOR LOCK BUZZER
    1. Install the wireless door lock buzzer with the clamp.
    2. Connect the connector.

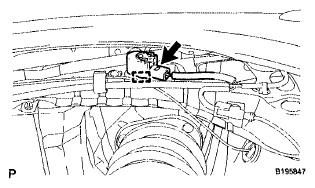

      Fig 1: Locating Wireless Door Lock Buzzer Connector
      G06012553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT FENDER LINER  (See INSTALLATION )
  3. INSTALL FRONT WHEEL  (See INSTALLATION )
