Hood Lock Control Cable Assembly: Installation

INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

Pass the hood lock control cable assembly into the engine compartment.

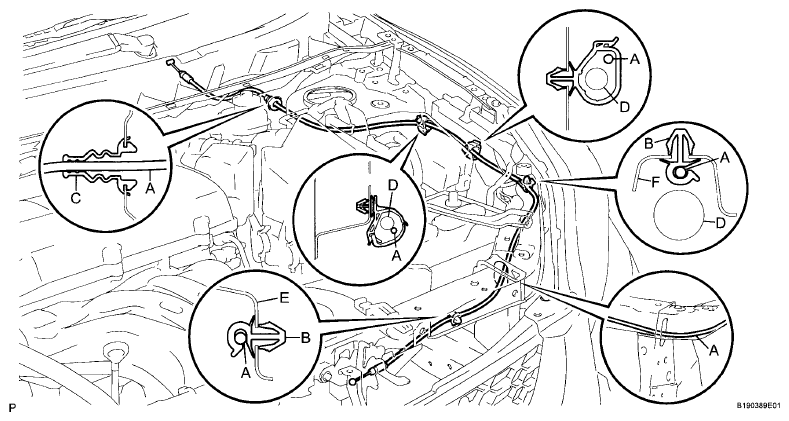

Fig 1: Identifying Hood Lock Control Cable Clamps

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PART NAME WITH APPROPRIATE AREA

Area	Part Name	Area	Part Name
A	Hood lock control cable	D	Wire harness
B	Clamp	E	Radiator support
C	Hood cable grommet	F	Side radiator support

INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
1. Install the hood lock control lever and connect the hood lock control cable.

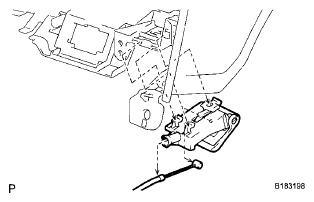

Fig 2: Identifying Hood Lock Control Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK ASSEMBLY
1. Apply MP grease to the sliding areas of the lock.

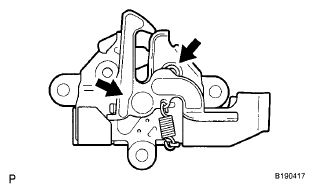

  Fig 3: Identifying Grease Applying Points On Sliding Areas Of Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable.

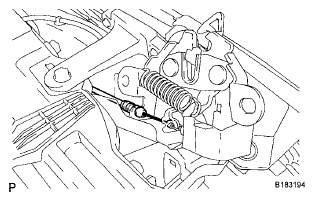

  Fig 4: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood lock assembly with the 3 bolts.
  Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)
INSPECT HOOD SUB-ASSEMBLY (See ON-VEHICLE INSPECTION )
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )

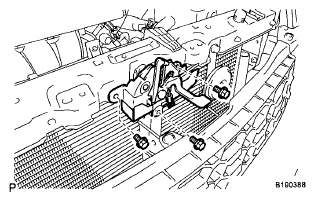

Fig 5: Identifying Hood Lock Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER
1. Install the front fender liner with 3 new grommets and the 5 screws.
2. Install the 9 clips.

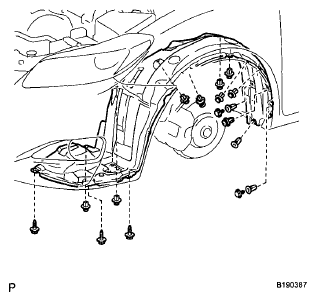

  Fig 6: Identifying Front Fender Liner Clip And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the pin hold clip.
INSTALL FRONT WHEEL (See INSTALLATION )

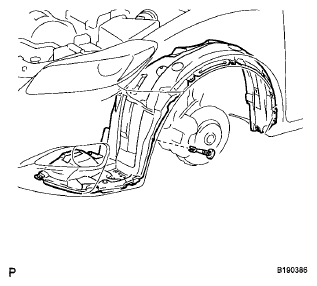

Fig 7: Identifying Pin Hold Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
