Rear Upper Control Arm: Installation

1. Install the upper control arm assembly, temporarily tighten the nut, washer and bolt.

   HINT:

   In the case of the air suspensions, install them by referring to the illustration.

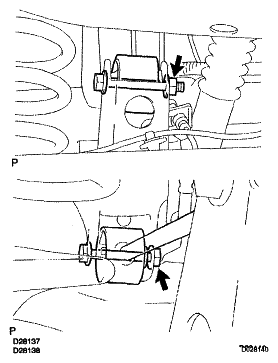

   Fig 1: Locating Upper Control Arm Assembly Bolt, Nut And Washer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear axle housing, temporarily tighten the nut, washer and bolt.

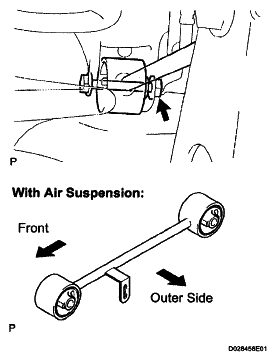

   Fig 2: Locating Height Control Sensor Link Sub-Assembly Rear (W/ Air Suspension) Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See REMOVAL )

1. Fully tighten the 2 nuts.

   Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

   HINT:

   While fixing the bolt, turn and install the nut.

   Fig 3: Locating Upper Control Arm Assembly Nuts And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
