Fuel Tank: Removal

DISCHARGE FUEL SYSTEM PRESSURE
(See FUEL SYSTEM )
REMOVE SPARE TIRE
DISCONNECT FUEL PUMP CONNECTOR
REMOVE FUEL TANK PROTECTOR
1. Remove the 2 bolts, 2 nuts and fuel tank protector.
DISCONNECT FUEL MAIN TUBE AND RETURN TUBE
(See REMOVAL )

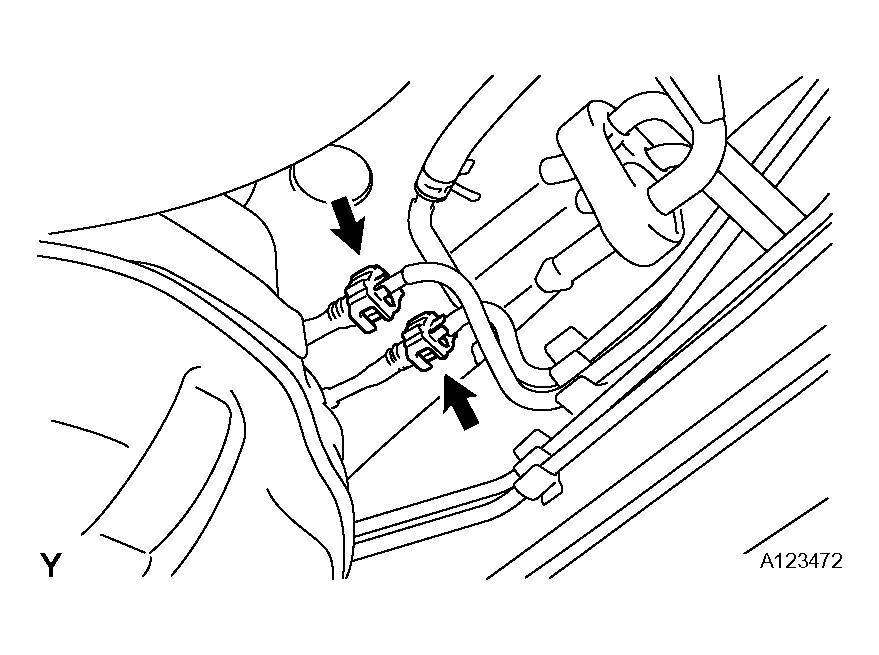

Fig 1: Disconnecting Fuel Main Tube & Return Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL TANK VENT HOSE
1. Push the connector deep into the charcoal canister to release the locking tab.
2. Pinch portion A.
3. Pull out the connector.

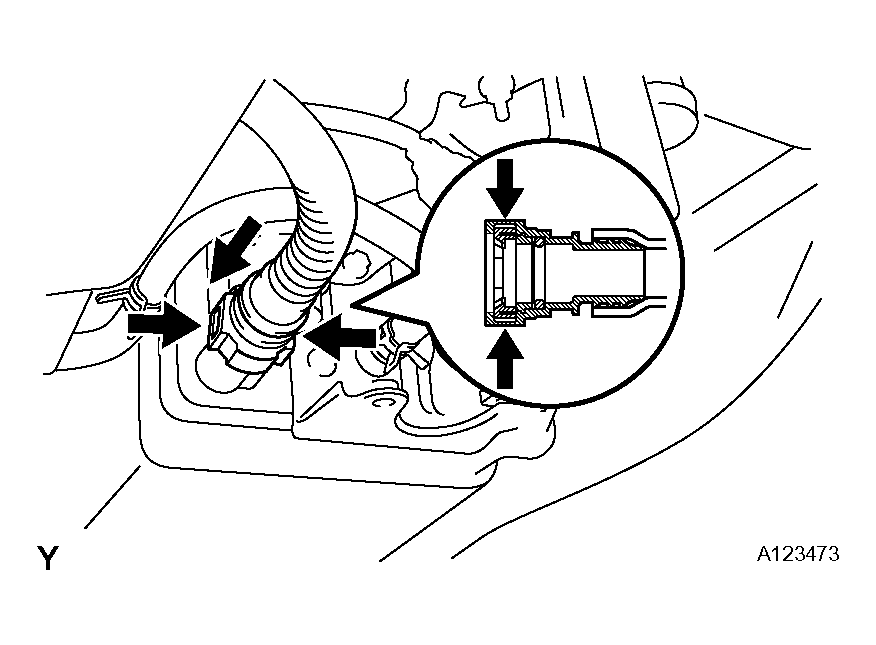

  Fig 2: Pushing Connector Deep Into Charcoal Canister To Release Locking Tab
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INLET HOSE AND BREATHER HOSE
1. Loosen the hose clamp bolt and disconnect the fuel inlet hose from the fuel filler pipe.
2. Disconnect the breather tube. (See REMOVAL )

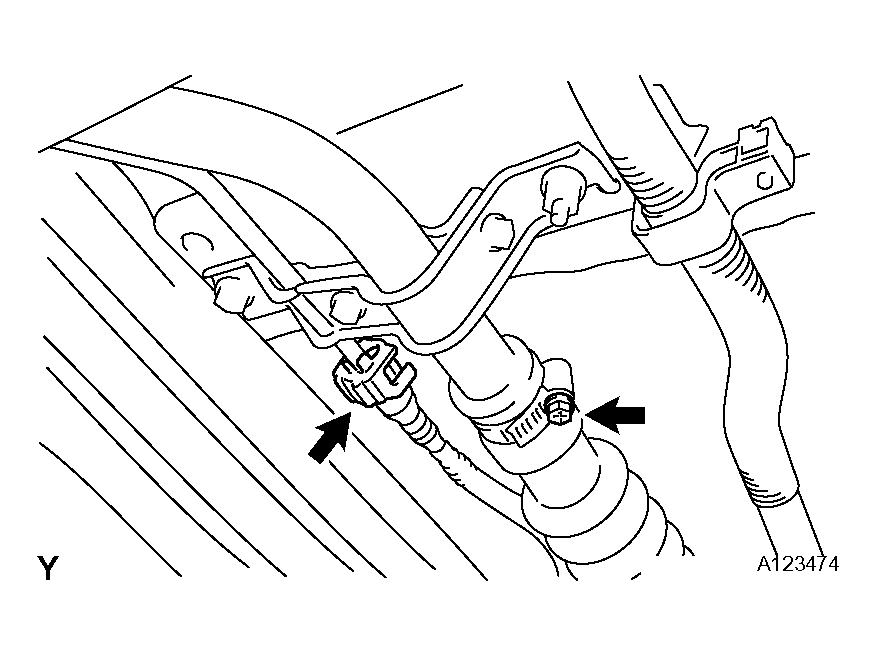

  Fig 3: Disconnecting Fuel Inlet Hose & Breather Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK ASSEMBLY
1. Set up a transmission jack under the fuel tank.
2. Remove the 2 bolts and disconnect the 2 fuel tank bands from the fuel tank.
3. Operate the transmission jack and remove the fuel tank.
REMOVE FUEL PUMP ASSEMBLY
(See REMOVAL )
