Fuel Pump: Removal

(See REMOVAL )

1. Remove the 2 tube clips, and pull out the 2 fuel tubes.

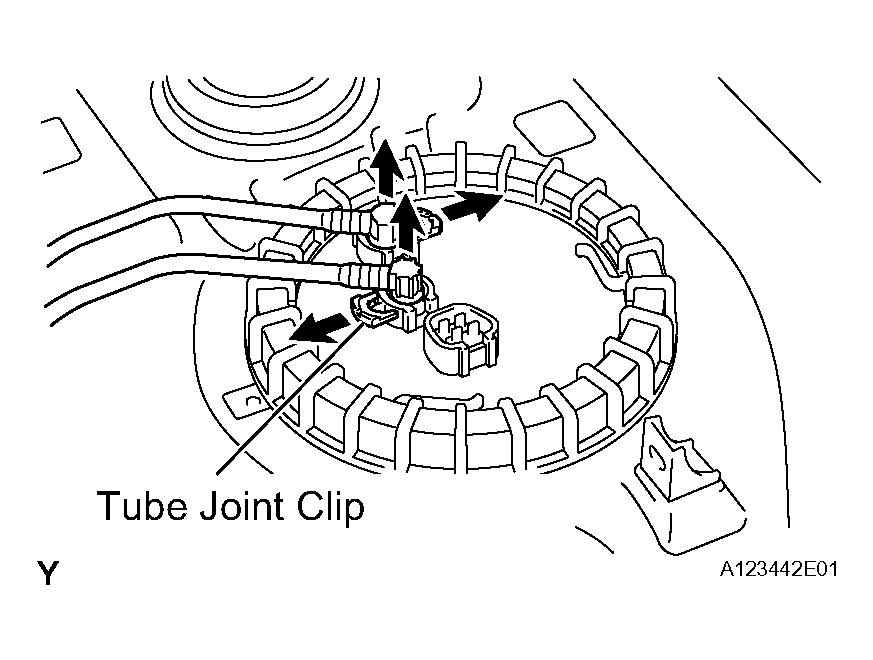

   Fig 1: Removing Tube Clips & Fuel Tubes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Before this operation, check the connector for dirt, mud or other contamination. Clean if necessary.
   • Be careful of mud. The connector's O-ring, which seals the pipe and connector, is easily contaminated.
   • Do not use any tool in this operation.
   • Do not bend or twist the nylon tube. Protect the connector by covering it with a plastic bag.
   • When the pipe and connector are stuck, push and pull the connector to release and pull the connector out carefully.

   Fig 2: Identifying Fuel Suction Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, loosen the fuel pump gauge retainer.

   SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

   HINT:

   A rib on the fuel pump gauge retainer fits into a tip of the SST.

2. Remove the fuel pump gauge retainer.
3. Remove the fuel suction tube.
   NOTE: Be careful not to bend the arm of the fuel sender gauge.

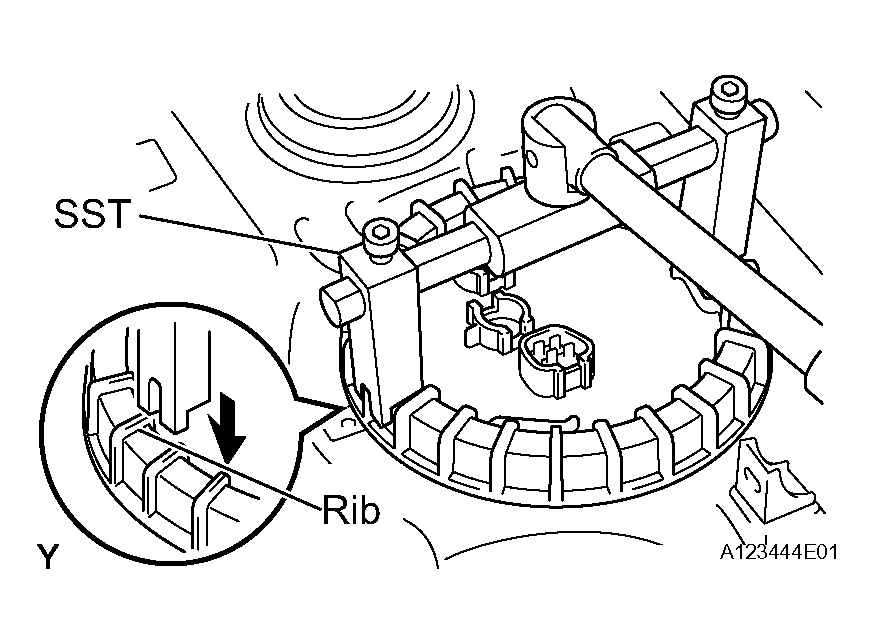

   Fig 3: Removing Fuel Pump Assembly Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the gasket from the fuel tank.
