Windshield Glass: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT DOOR OPENING TRIM LH
    1. Partially remove the front door opening trim weatherstrip LH so that the front pillar garnish LH can be removed (See appropriate REMOVAL procedure in INSTALLATION article).
  3. REMOVE FRONT DOOR OPENING TRIM RH

    HINT:

    Use the same procedures described for the LH side.

  4. REMOVE FRONT PILLAR GARNISH LH (See appropriate REMOVAL procedure in  INSTALLATION  article)
  5. REMOVE FRONT PILLAR GARNISH RH (See appropriate REMOVAL procedure in  INSTALLATION  article)
  6. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (See  REMOVAL  )
  7. REMOVE ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  8. REMOVE ASSIST GRIP COVER (see appropriate step(s) under v)
  9. REMOVE ASSIST GRIP SUB-ASSEMBLY FRONT (see appropriate step(s) under  REMOVAL  )
  10. REMOVE VISOR ASSEMBLY LH (see appropriate step(s) under  REMOVAL  )
  11. REMOVE VISOR ASSEMBLY RH (see appropriate step(s) under  REMOVAL  )
  12. REMOVE VISOR HOLDER (see appropriate step(s) under  REMOVAL  )
  13. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    It is not necessary to completely remove the roof headlining. Slightly lower the front section of the roof headlining.

    1. Partially remove the roof headlining (See appropriate REMOVAL procedure in REMOVAL article).
  14. REMOVE FRONT WIPER ARM HEAD CAP (See appropriate step(s) under  REMOVAL  )
  15. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  REMOVAL  )
  16. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See appropriate step(s) under  REMOVAL  )
  17. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (See appropriate step(s) under  REMOVAL  )
  18. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (See appropriate step(s) under  REMOVAL  )
  19. REMOVE NO. 2 WINDSHIELD MOULDING OUTSIDE LH

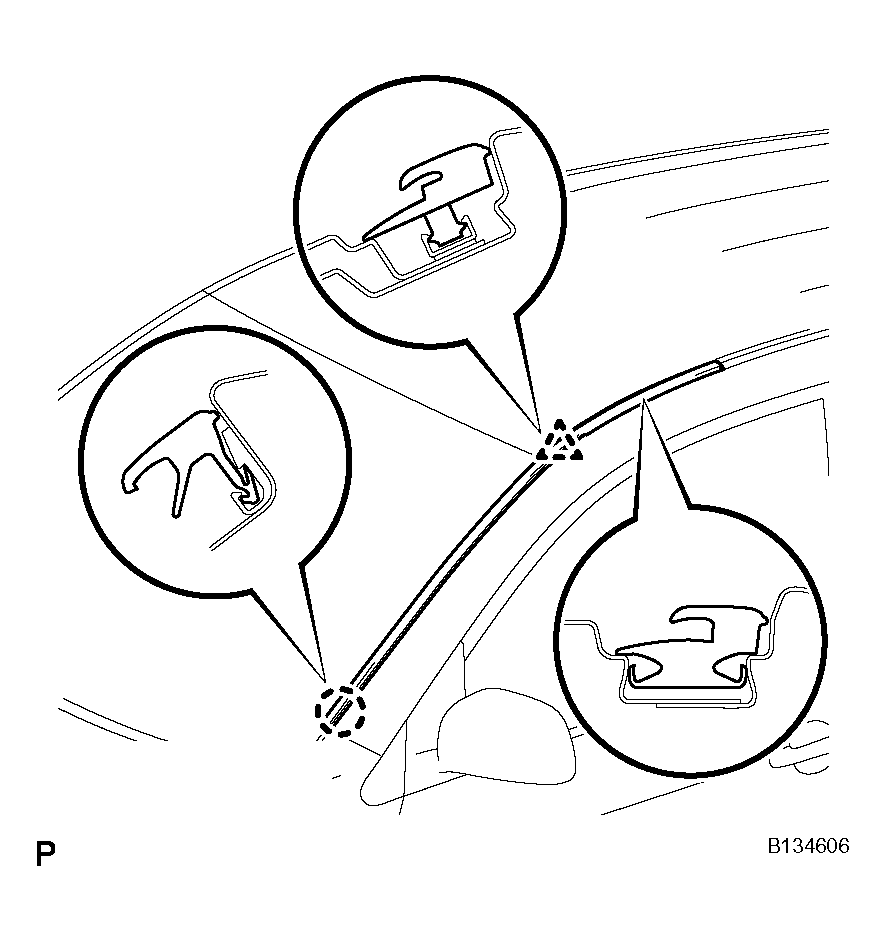

    1. Remove the moulding with the clip and claw.
      Fig 1: Removing Moulding With Clip And Claw
      G04491424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 2 WINDSHIELD MOULDING OUTSIDE RH
    1. Remove the moulding with the clip and claw.
  21. REMOVE NO. 2 WINDSHIELD OUTSIDE MOULDING FASTENER
    1. Apply protective tape to the outer surface of the vehicle body to prevent scratches.
      Fig 2: Applying Protective Tape To Outer Surface Of Vehicle Body To Prevent Scratches
      G04491425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a heat light, heat the moulding to 40 to 60°C (104 to 140°F).

      NOTE: Do not heat the moulding excessively.
    2. Tie both piano wire ends to wooden blocks or similar objects.
      Fig 3: Tying Both Piano Wire Ends To Wooden Blocks
      G04491426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Cut the adhesive tape by pulling the piano wire as shown in the illustration.

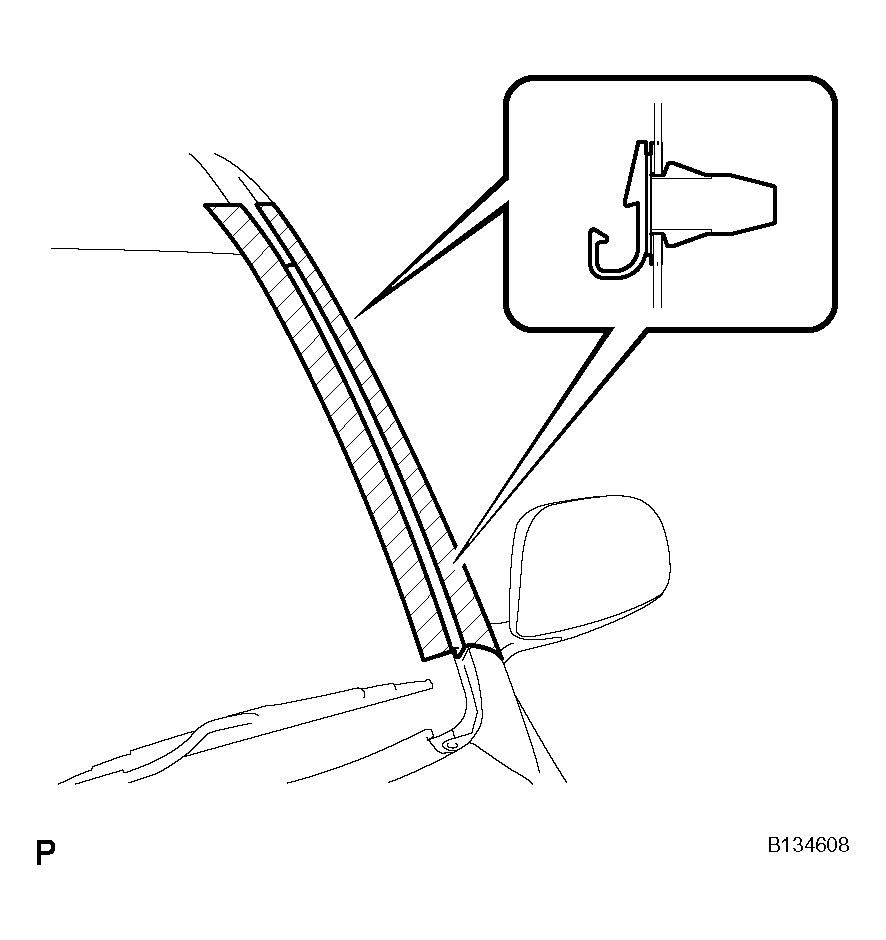

    4. Remove the 2 clips and moulding fastener.
      Fig 4: Removing Windshield Outside Moulding Fastener
      G04491427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING FASTENER

    HINT:

    Use the same procedures described for the LH side.

  23. REMOVE COWL TOP VENTILATOR LOUVER (See appropriate step(s) under  REMOVAL  )
  24. REMOVE FRONT WINDOW MOULDING INNER CENTER
    1. Using a knife, cut off the moulding as shown in Fig 5.
      NOTE: Be careful not to damage the vehicle body.
    2. Remove the remaining moulding.

      HINT:

      Make a partial cut in the moulding. Then pull and remove it by hand.

      Fig 5: Cutting Off Moulding
      G04491428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE WINDSHIELD GLASS
    1. w/Windshield Deicer:

      Remove the clip and disconnect the connector.

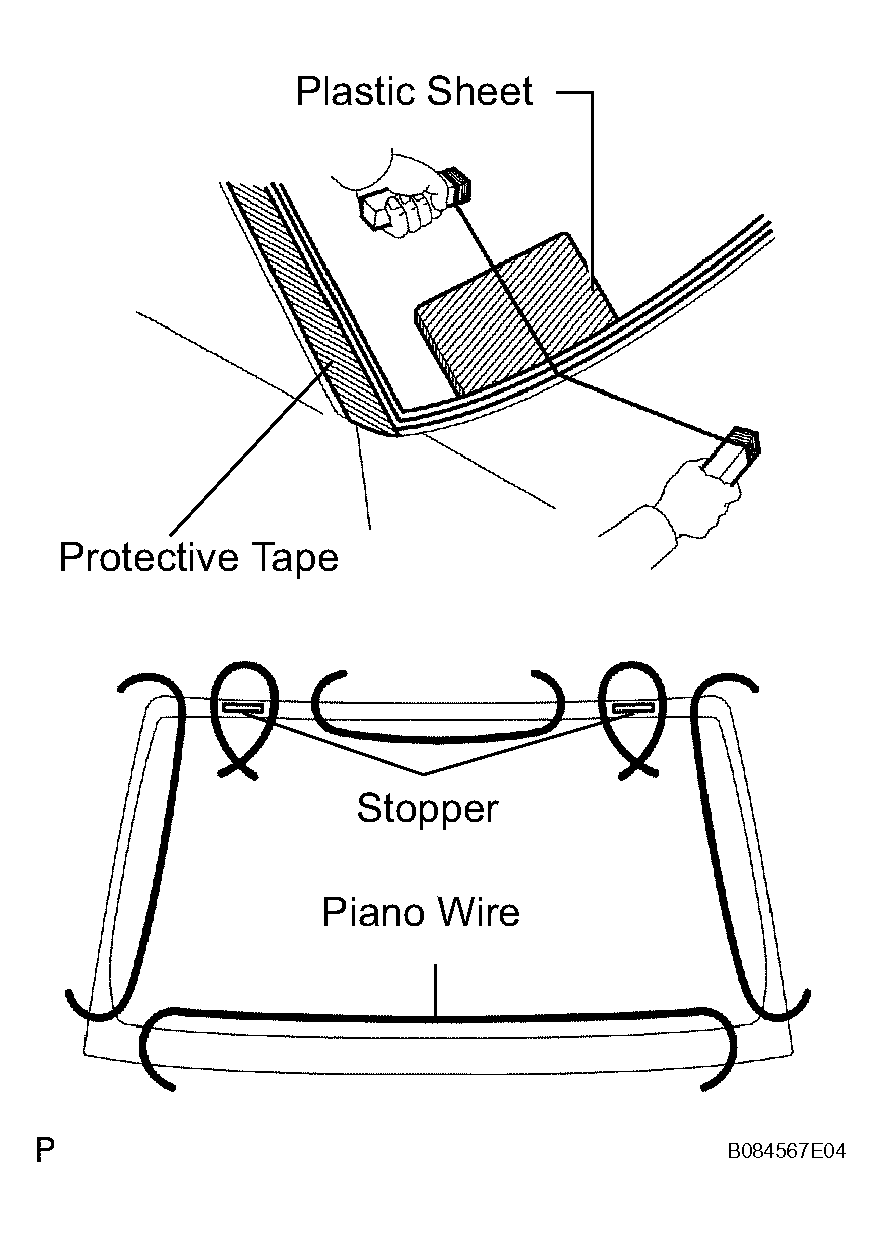

    2. Apply protective tape to the outer surface of the vehicle body to prevent scratches From the interior, insert a piano wire between the vehicle body and glass as shown in Fig 6.s
    3. From the interior, insert a piano wire between the vehicle body and glass as shown in Fig 6.
    4. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
      NOTE:
      • When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior/exterior ornaments.
      • To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.
        Fig 6: Applying Protective Tape To Outer Surface Of Vehicle Body
        G04491429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Place matchmarks over the glass and vehicle body on the locations indicated in Fig 7.

      HINT:

      Matchmarks do not need to be placed if not reusing the glass.

      Fig 7: Placing Matchmarks Over Glass And Vehicle Body
      G04491430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Cut through the adhesive by pulling the piano wire around the glass.
      NOTE: Leave as much adhesive on the vehicle body as possible when cutting through the adhesive.
    7. Disengage the stoppers.
    8. Using suction cups, remove the glass.
  26. CLEAN WINDSHIELD GLASS
    1. Using a scraper, remove the damaged stoppers, dams and adhesive sticking to the glass.
    2. Clean the outer edges of the glass with white gasoline.
      NOTE: Do not touch the glass surface after cleaning it. Even if using new glass, clean it with white gasoline.
      Fig 8: Cleaning Window Glass
      G04032415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. CLEAN VEHICLE BODY
    1. Clean and shape the contact surface of the vehicle body.
      1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

        HINT:

        Leave as much adhesive on the vehicle body as possible.

        NOTE: Be careful not to damage the vehicle body.
    2. Clean the contact surface of the vehicle body with cleaner.

      HINT:

      Even if all the adhesive has been removed, clean the vehicle body.

      Fig 9: Cleaning Contact Surface Of Vehicle Body With Cleaner
      G04491432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
