Inner Rear View Mirror: Removal

  1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

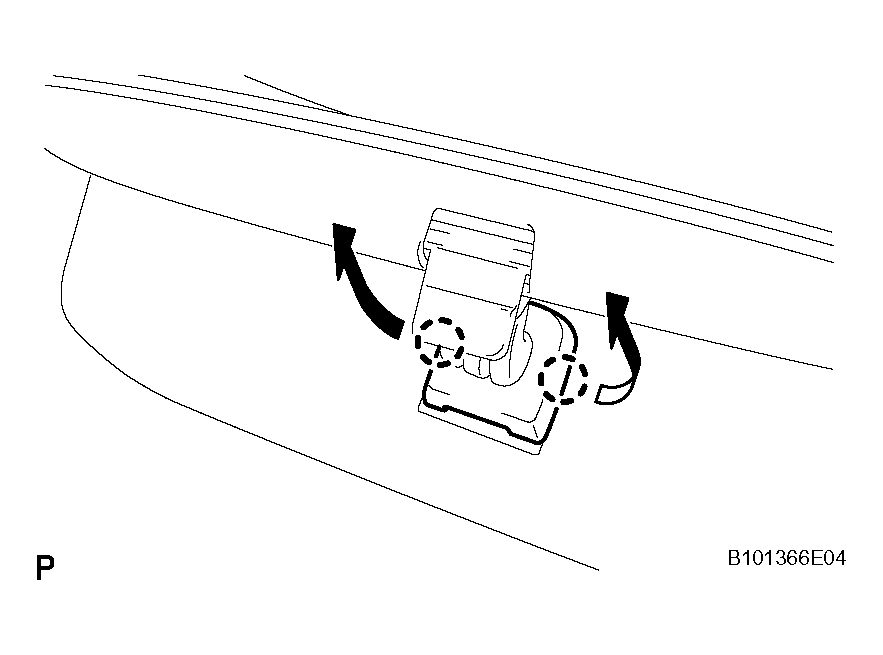

    1. Disengage the 2 claws and separate the inner rear view mirror cover as shown.
      Fig 1: Removing Inner Rear View Mirror Cover
      G04491491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

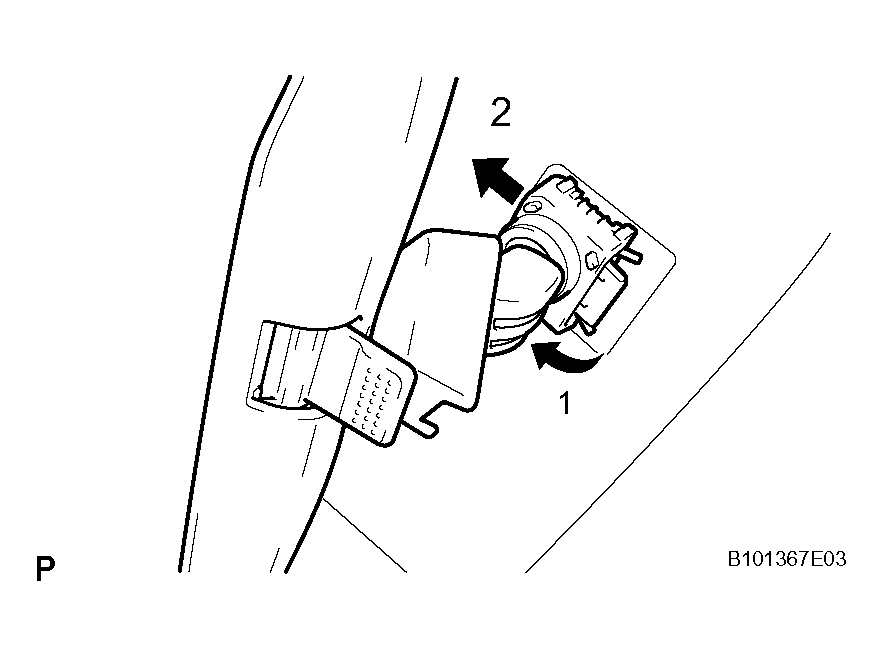

    2. Remove the inner rear view mirror as shown.
      Fig 2: Removing Inner View Mirror
      G04491492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
