Front Lower Ball Joint: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSPECT FRONT LOWER BALL JOINT ASSEMBLY LH
   1. Jack up the front part of the vehicle.
   2. Move the front suspension lower No. 1 arm up and down to check vertical looseness of the lower ball joint front.

      HINT:

      Wrap a cloth around the wooden block to prevent damage to the bolt and nuts.

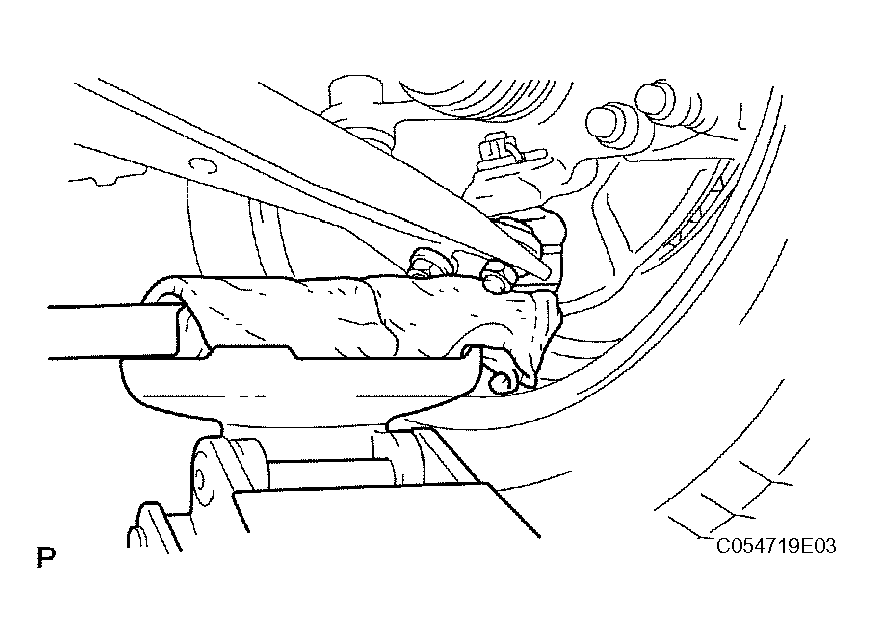

      Fig 1: Wrapping A Cloth Around Wooden Block To Prevent Damage To Bolt And Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT WHEEL
3. REMOVE FRONT AXLE HUB NUT LH (See  REMOVAL  )
4. DISCONNECT FRONT SPEED SENSOR LH (See  REMOVAL  )
5. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH (See )
6. REMOVE FRONT DISC (See  REMOVAL  )
7. DISCONNECT NO. 2 TIE ROD END SUB-ASSEMBLY (See  REMOVAL  )
8. DISCONNECT FRONT SUSPENSION LOWER NO. 1 ARM SUB-ASSEMBLY LH
   1. Remove the bolt and 2 nuts.

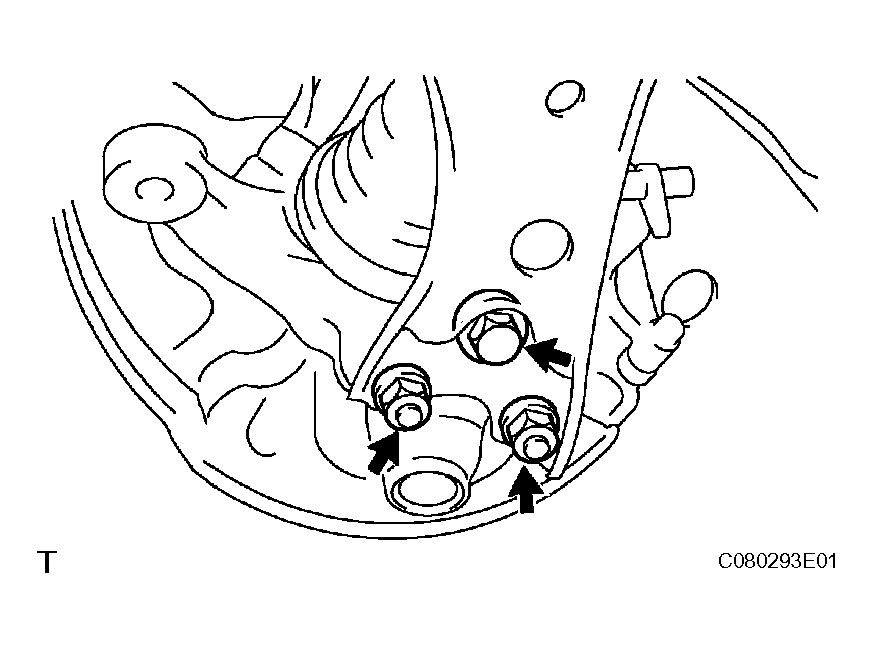

      Fig 2: Removing Bolt & Two Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Lower the front suspension lower No. 1 arm and disconnect if from the front lower ball joint.
9. REMOVE FRONT AXLE ASSEMBLY LH (See  REMOVAL  )
10. REMOVE FRONT NO. 1 WHEEL BEARING DUST DEFLECTOR LH (See  REMOVAL  )
11. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH
    1. Remove the clip and the castle nuts.
    2. Using SST, remove the lower ball joint front.

       SST 09611-36020

       NOTE:

       • Do not damage the steering knuckle.
       • Securely hang SST to the spacer of the steering knuckle.
       • Replace the steering knuckle with a new one if the spacer comes off the steering knuckle.

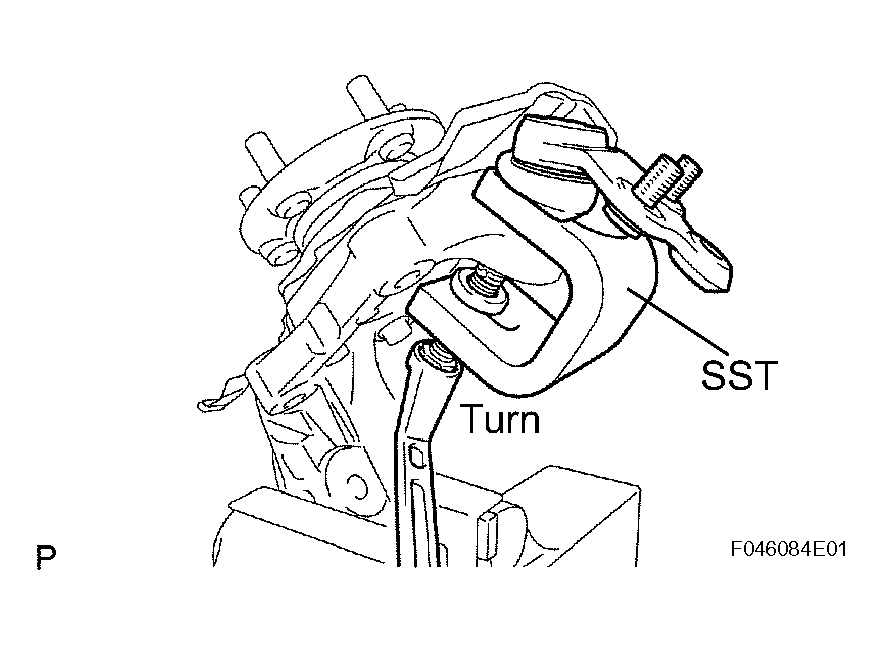

         Fig 3: Removing Lower Ball Joint Front

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
