Front Axle Hub: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT AXLE HUB NUT LH (See  REMOVAL  )
3. DISCONNECT FRONT SPEED SENSOR LH (See  REMOVAL  )
4. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH
   1. Remove the 2 bolts and disconnect the disc brake caliper from the steering knuckle.

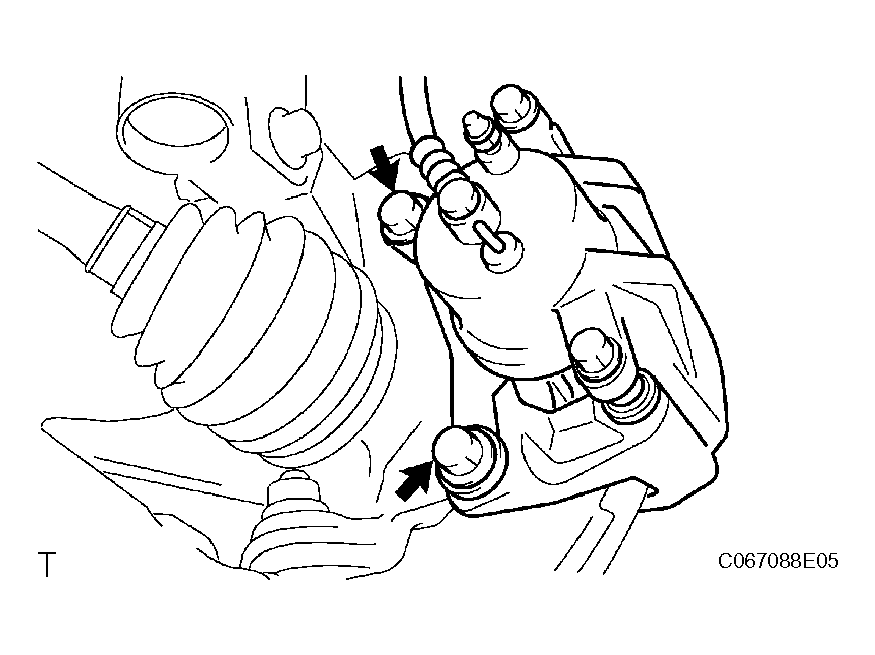

      Fig 1: Removing Front Disc Brake Caliper Assembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Hang down the disc brake caliper with a wire or equivalent.
5. REMOVE FRONT DISC
   NOTE: Ensure no oil attaches to the disc surface.
6. DISCONNECT TIE ROD END SUB-ASSEMBLY LH (See  REMOVAL  )
7. DISCONNECT NO. 1 FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER LH (See  REMOVAL  )
8. REMOVE FRONT AXLE ASSEMBLY LH
   1. Using a plastic-faced hammer, tap the end of the front drive shaft and disengage the fitting between the front drive shaft and front axle.

      HINT:

      If it is difficult to disengage, tap the end of the front drive shaft with a brass bar and hammer.

   2. Push the front axle outward from the vehicle to remove the front drive shaft from the front axle.
      NOTE:

      • Be careful not to push the front axle outward from the vehicle more than is necessary to remove it.
      • Be careful not to damage the drive shaft outboard joint boot.
      • Be careful not to damage the speed sensor rotor.
      • Hang the front drive shaft down with a string or equivalent.
   3. Remove the 2 bolts and 2 nuts, and remove the front axle from the front shock absorber.
      Fig 2: Removing Front Axle From Front Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE FRONT NO. 1 WHEEL BEARING DUST DEFLECTOR LH
   1. Mount the steering knuckle in a soft vise.
   2. Using a screwdriver, remove the deflector from the steering knuckle.
      NOTE: Be careful not to damage the steering knuckle.
      Fig 3: Removing Deflector From Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE LOWER BALL JOINT ASSEMBLY
    1. Remove the clip and castle nut.
    2. Using SST, remove the lower ball joint.

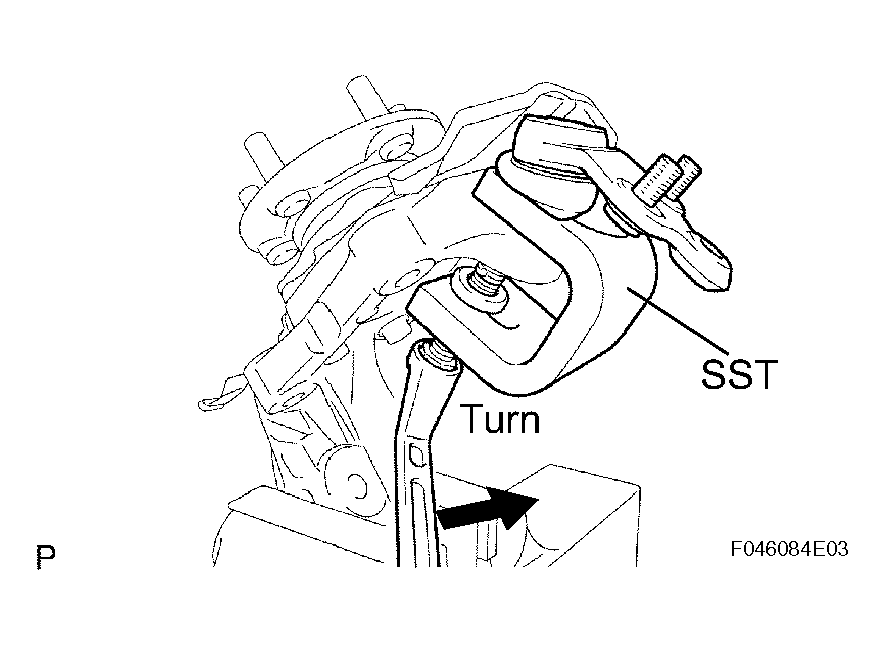

       Fig 4: Removing Lower Ball Joint Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       SST 09611-36020

       NOTE:

       • Do not damage the steering knuckle.
       • Securely hang SST to the spacer of the steering knuckle.
       • Replace the steering knuckle with a new one if the spacer comes off the steering knuckle.
11. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH
    1. Remove the 4 bolts, dust cover and front axle hub.
       Fig 5: Removing Dust Cover And Front Axle Hub Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
