Blower Unit: Removal

REMOVE INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY
HINT:

Refer to the removal procedures for the instrument panel with the passenger airbag (see REMOVAL ).
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
HINT:

Refer to the removal procedures for the instrument panel lower (see REMOVAL ).
REMOVE TRANSMISSION CONTROL ECU ASSEMBLY
REMOVE ECM
REMOVE NETWORK GATEWAY ECU
REMOVE NO. 1 HEATER TO REGISTER DUCT
REMOVE AIR DUCT SUB-ASSEMBLY
1. Remove the 2 screws and air duct.

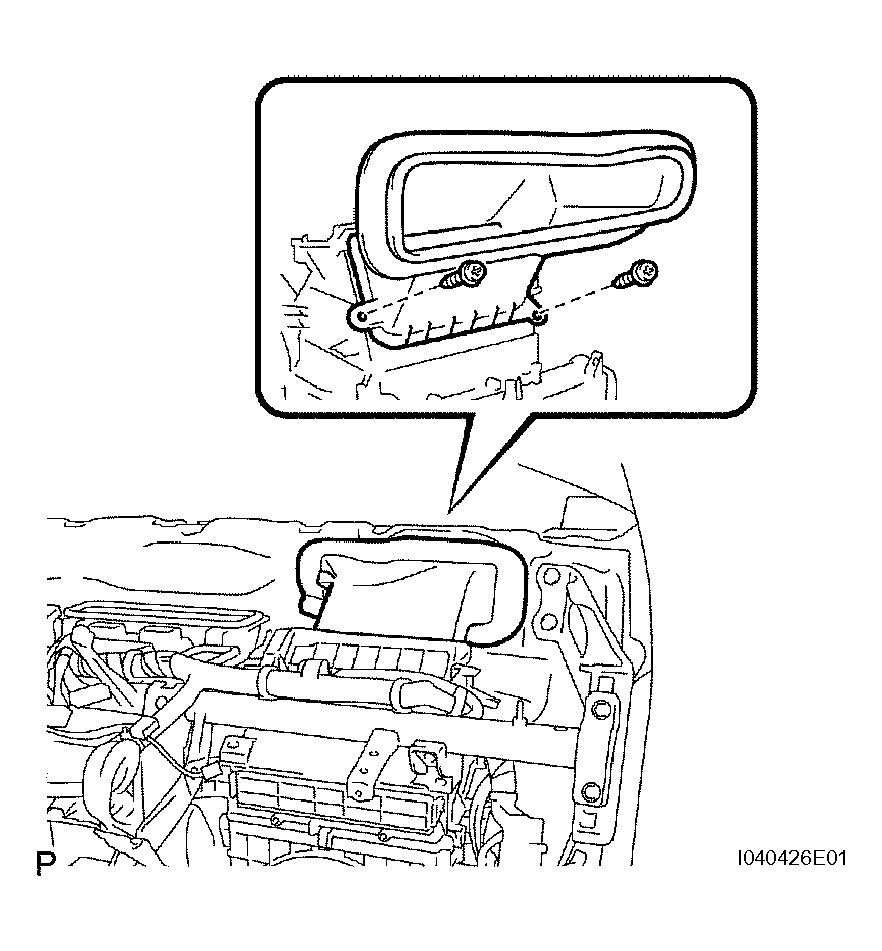

  Fig 1: Removing Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER ASSEMBLY
1. Disconnect the 10 connectors.
2. Detach the 4 clamps and disconnect the wire harness.

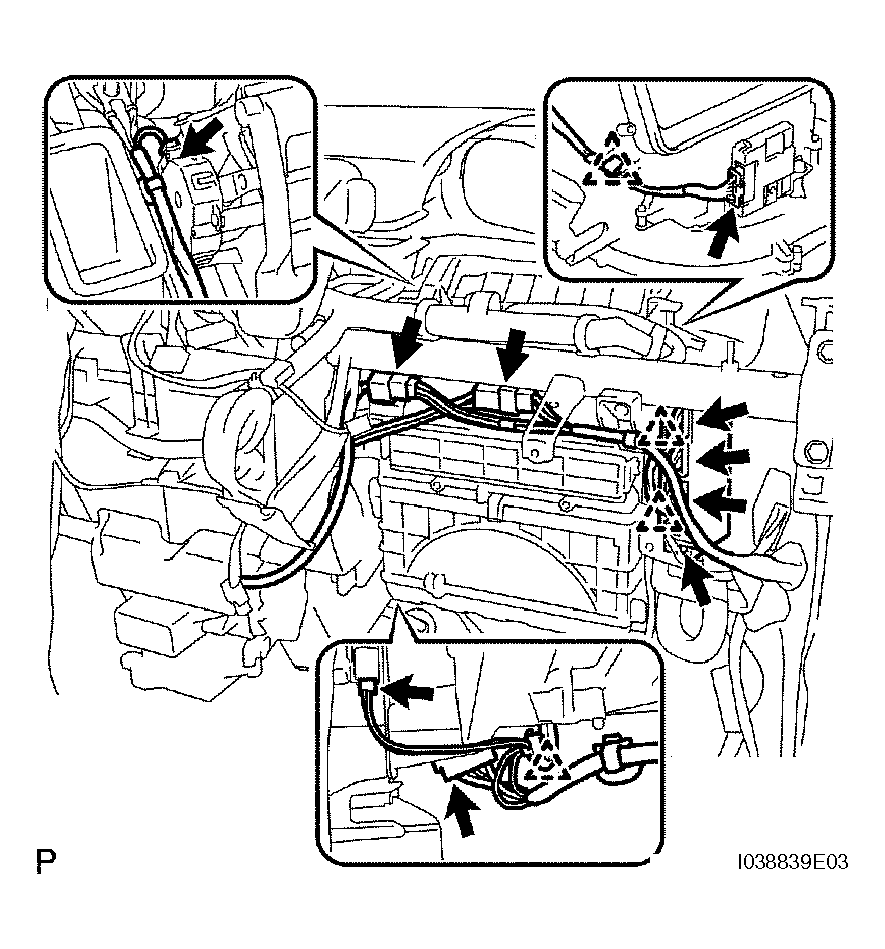

  Fig 2: Disconnecting Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 screws, nut and blower.

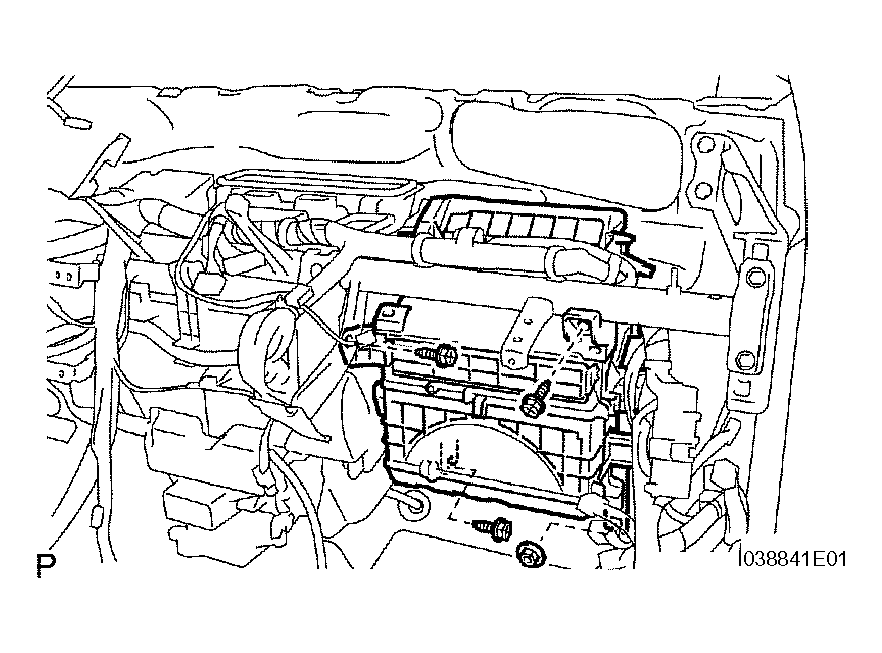

  Fig 3: Removing Blower Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
