Lower Instrument Panel: Removal

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with an alphabetical code in the table below.

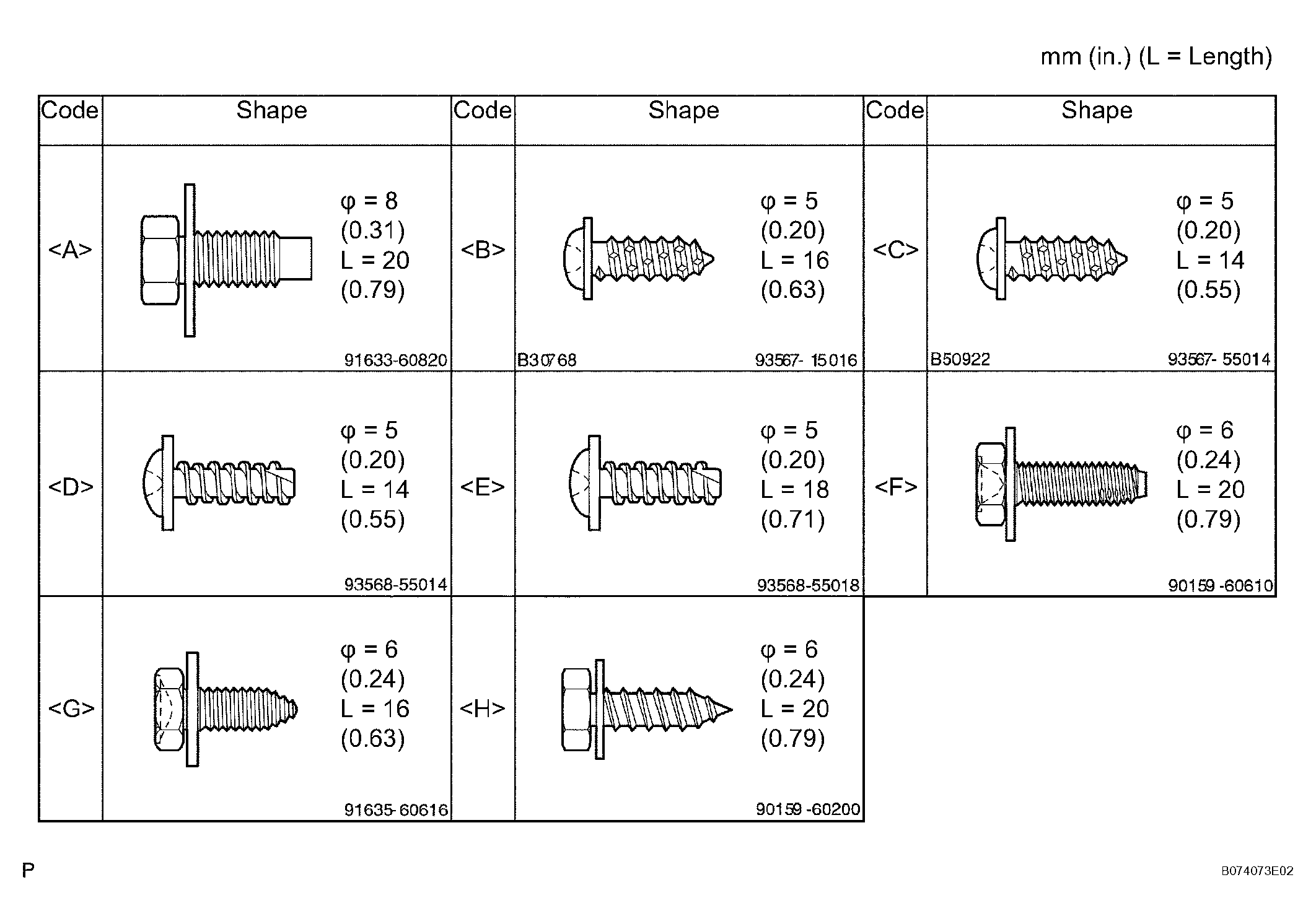

    Fig 1: Identifying Lower Instrument Panel Bolts, Screws And Nuts Table
    G04476913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE INSTRUMENT PANEL SAFETY PAD
    1. Remove the instrument panel (see REMOVAL ).
  4. REMOVE NO. 2 STEERING WHEEL COVER LOWER
  5. REMOVE NO. 3 STEERING WHEEL COVER LOWER
  6. REMOVE STEERING PAD ASSEMBLY (See  REMOVAL  )
  7. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  8. REMOVE TILT LEVER BRACKET (See  REMOVAL  )
  9. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  10. REMOVE SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  12. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  13. REMOVE COWL SIDE TRIM BOARD LH (See  REMOVAL  )
  14. REMOVE COWL SIDE TRIM BOARD RH (See  REMOVAL  )
  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
    1. Remove the 2 screws.
    2. Detach the 4 clips and remove the instrument cluster finish panel.

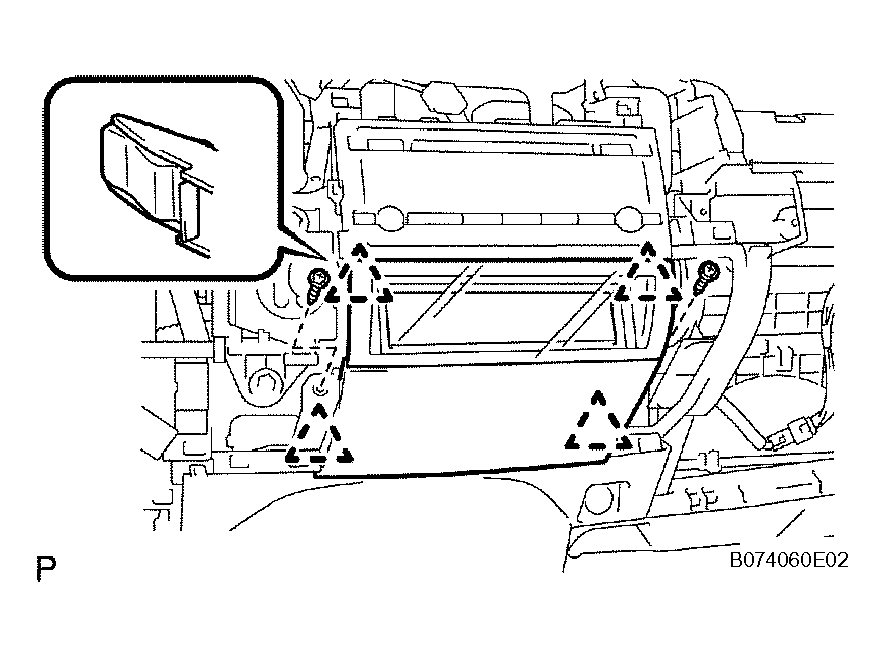

    Fig 2: Removing Instrument Cluster Finish Panel Assembly Center
    G04476914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 CENTER CLUSTER CUSHION
  17. REMOVE RADIO RECEIVER
  18. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Using a clip remover, remove the clip from the instrument panel finish panel lower center.
    2. Detach the 4 claws and 2 clips, and remove the instrument panel finish panel.

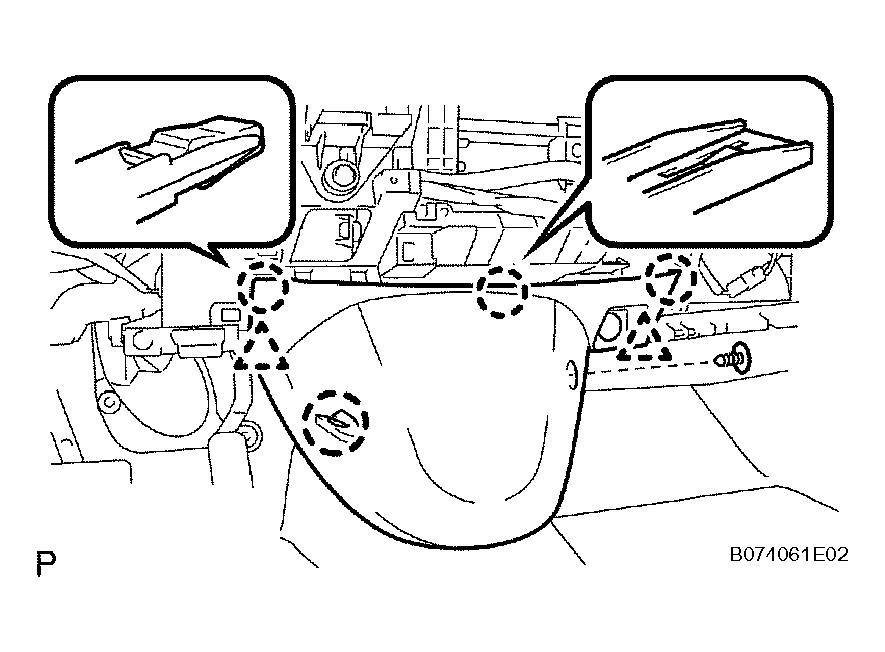

      3. Fig 3: Removing Instrument Panel Finish Panel Lower Center
      G04476915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER
    1. Detach the 6 claws and remove the glove compartment door lock cover.

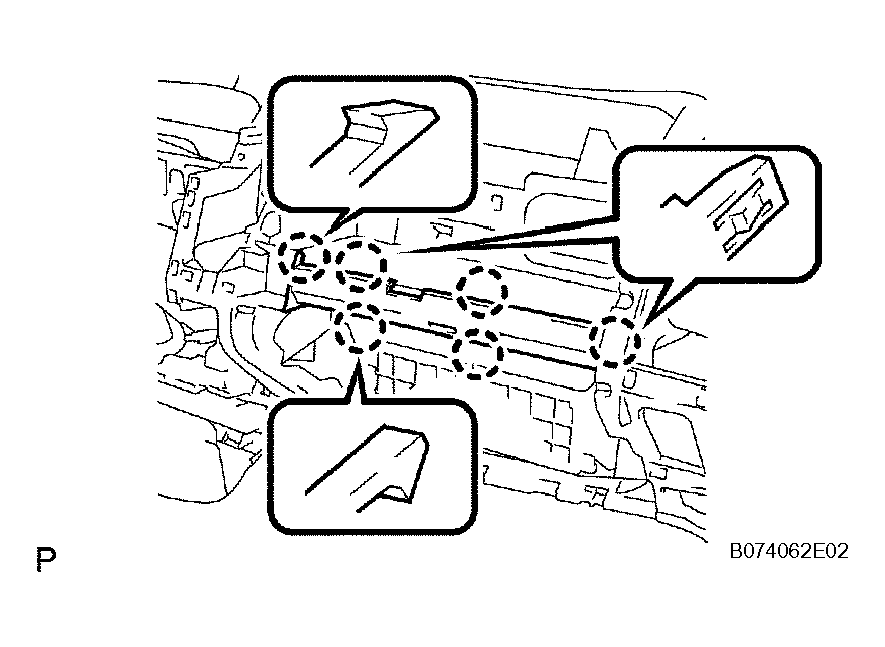

      2. Fig 4: Removing Glove Compartment Door Lock Cover
      G04476916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Remove the 4 screws and glove compartment door lock.

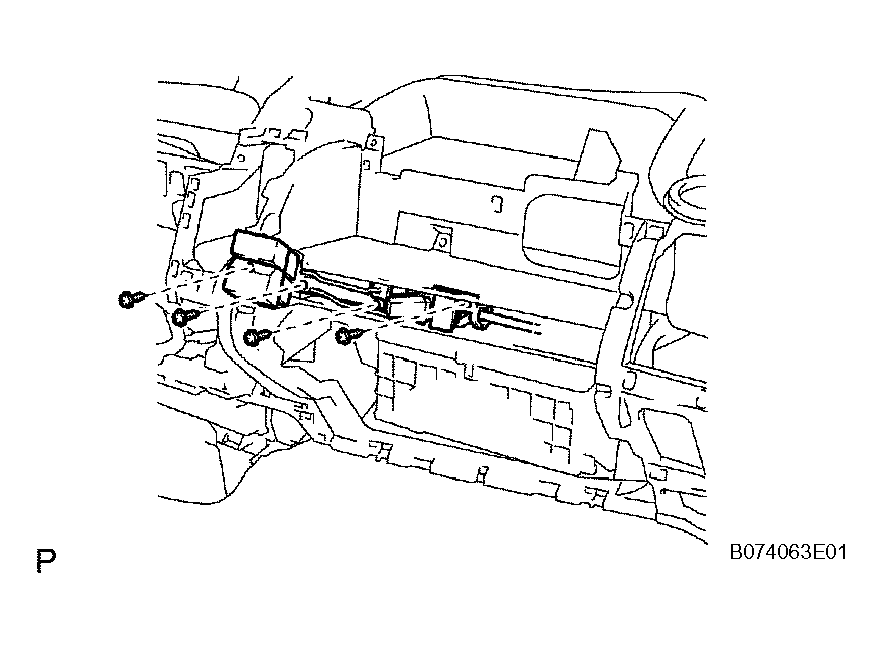

      Fig 5: Removing Screws And Glove Compartment Door Lock
      G04476917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
    1. Detach the 4 claws and remove the instrument panel finish panel.

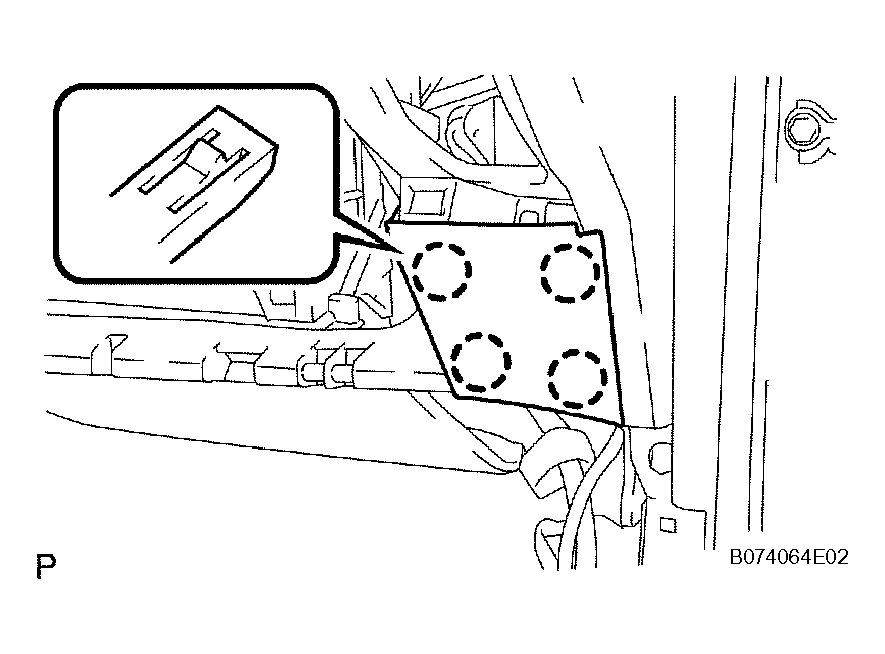

      Fig 6: Detaching Claws And Removing Instrument Panel Finish Panel
      G04476918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Detach the 2 claws and remove the instrument panel under cover.

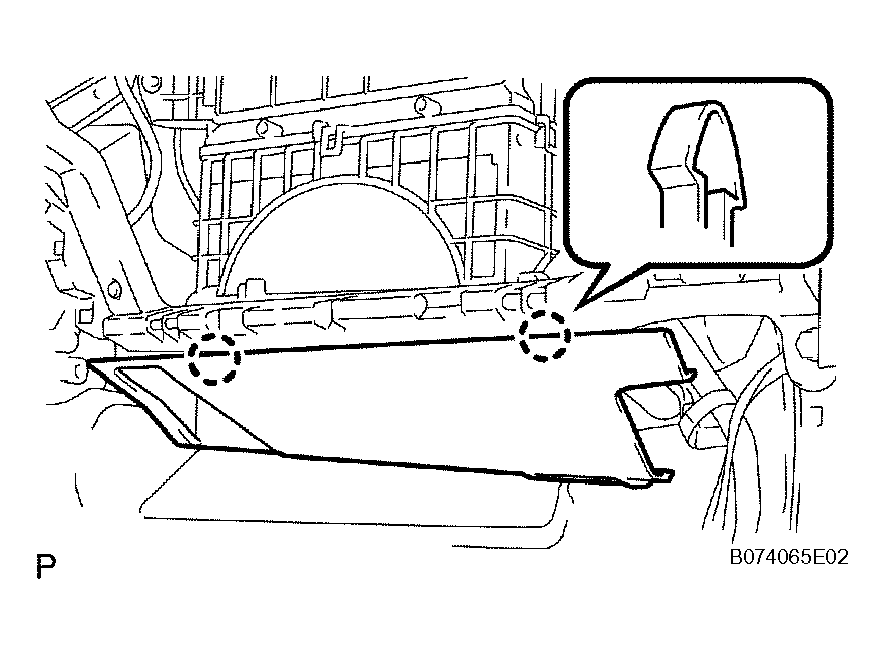

    Fig 7: Detaching Claws And Removing Instrument Panel Under Cover
    G04476919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE POWER STEERING ECU
  24. REMOVE SHIFT LEVER ASSEMBLY LOWER
  25. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Using a clip remover, remove the 8 clips from the duct and lower instrument panel.
    2. Remove the 6 bolts.
    3. Remove the 2 screws.
    4. Disconnect all connectors, and detach all clamps.
    5. Remove the instrument panel.

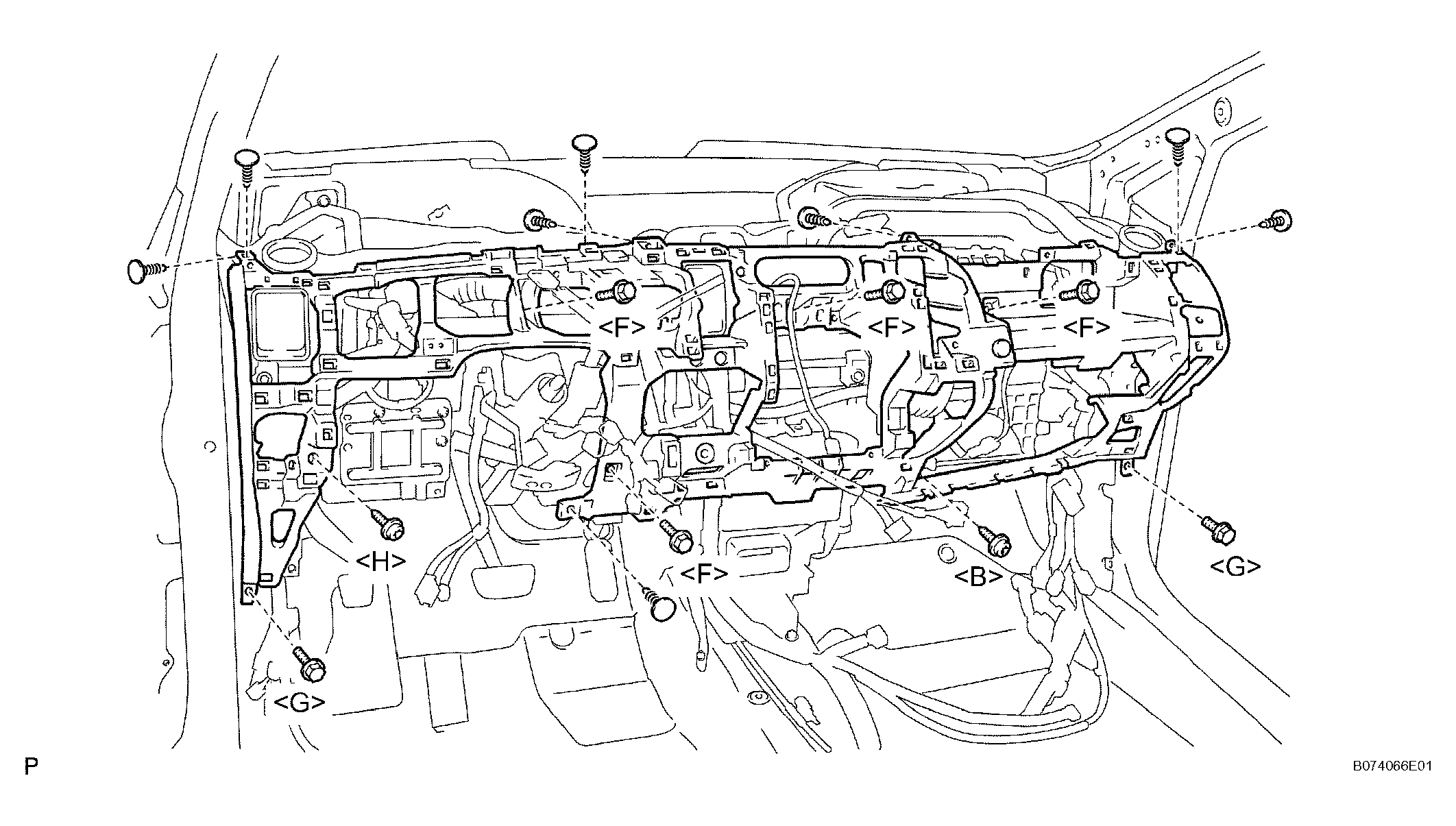

      6. Fig 8: Removing Lower Instrument Panel Sub-Assembly
      G04476920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
