Radio Receiver: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  3. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER (See  REMOVAL  )
  5. REMOVE MULTI-DISPLAY ASSEMBLY (See  REMOVAL  )
  6. REMOVE RADIO RECEIVER WITH BRACKET
    1. Remove the 4 screws.
    2. Disconnect the connector and remove the radio receiver w/ bracket.

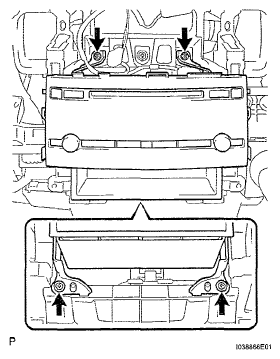

      Fig 1: Locating Radio Receiver w/ Bracket Screws
      G05189918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 6 screws and No. 1 radio bracket.
      Fig 2: Locating No. 1 Radio Bracket Screws
      G05189919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 6 screws and No. 2 radio bracket.
      Fig 3: Locating No. 2 Radio Bracket Screws
      G05189920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
